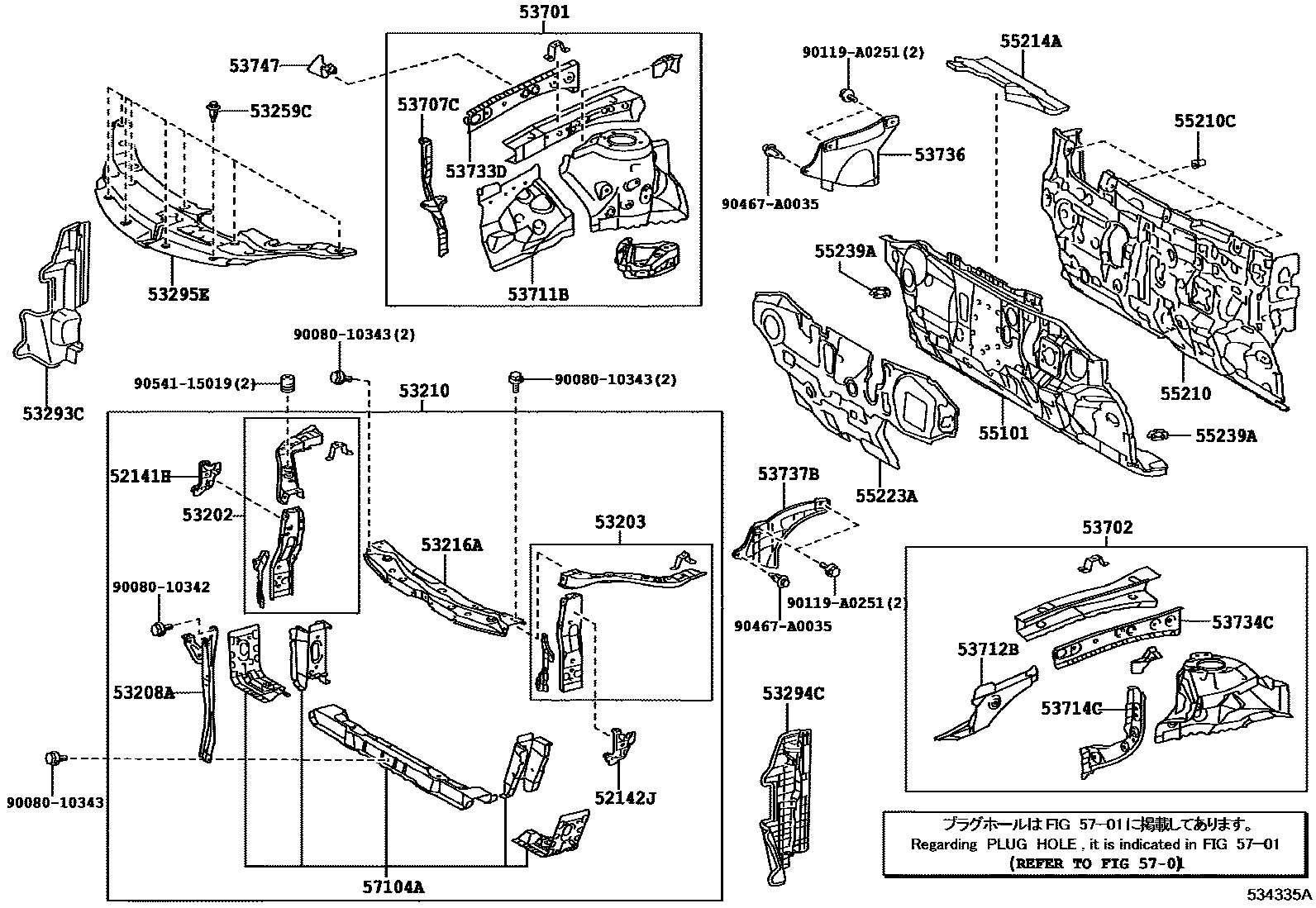

Toyota CAMRY — FRONT FENDER APRON & DASH PANEL
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53210SUPPORT ASSY, RADIATOR
53216ASUPPORT, RADIATOR, UPPER
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53295ESEAL, COOL AIR INTAKE DUCT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53747PLATE, AIR SEALED, RH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55210CCLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55223AINSULATOR, DASH PANEL, OUTER
55239APLATE, DASH PANEL INSULATOR, NO.3
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
9008010342
main90080-10342
9008010343
main90080-10343
90119A0251
main90119-A0251
90467A0035
main90467-A0035
9054115019
main90541-15019
35 parts on this diagram · 1 diagram in section
