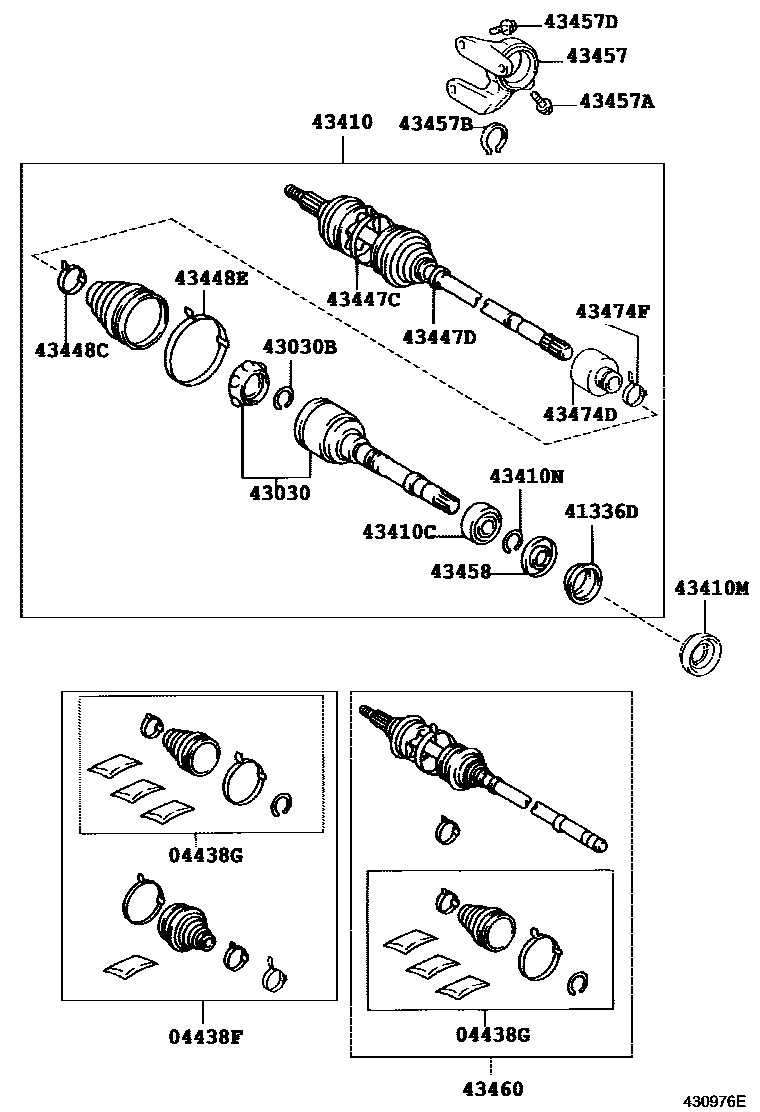

Toyota CAMRY — FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0005 1LH 0007 1RH 0008 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-06120iACV3#..RHD..4FC200203-200608

sub04438-06410

main04438-06230iACV31..TAIW200203-200605

main04438-06240iMCV30..30V..TAIW200203-200404

main04438-28051iACV3#..(20E,20G,24G,24V)..(IDN,PHL,TAIW)200203-200207

sub04438-28052

main04438-28052iACV30..5F;ACV30..PHL200207-200611

sub04428-42070

main04438-44050iMCV30..IDN;MCV30..30G200203-200207

sub04438-44051

main04438-44051iMCV30..VN200207-200611

sub04438-44052

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-06220iACV31..TAIW200203-200605

main04438-07010iACV3#..RHD..4FC200203-200608

sub04438-06400

main04438-28040iMCV30..IDN;ACV3#,MCV30..(20E,20G,24G,24V,30G)..(IDN,PHL,TAIW)200203-200207

sub04438-28041

main04438-28041iACV3#,MCV30..PHL,VN200207-200407

sub04438-42180

main04438-42180iACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH)200404-200611

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iACV3#..RHD..4FC200203-200407

main41336-12020iMCV30..IDN,VN;ACV3#,MCV30..(20E,20G,24G,24V,30G)..(IDN,PHL,TAIW,VN)..(4FC,5F)200207-200407

main41336-8C000iACV31,MCV30..(20J,30V)..TAIW200203-200404

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06070iACV3#..RHD..4FC200203-200407

main43030-33040iMCV30..IDN;MCV30..30G200203-200207

sub43030-33041

main43030-33041iMCV30..IDN,VN;MCV30..30G..4FC200208-200407

main43030-33050iACV3#..(20E,20G,24G,24V)..(IDN,PHL,TAIW)200203-200207

sub43030-33051

main43030-33051iACV30..5F;ACV30..PHL200208-200407

main43030-8C000iACV31..20J200203-200404

main43030-8C001iMCV30..30V..TAIW200203-200404

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52118iACV3#..(MA,TH)..4FC200203-200407

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06340iACV3#..TH..4FC200203-200405

main43410-06350iACV31..TAIW200203-200404

main43410-06360iMCV30..30V..TAIW200203-200404

sub43410-33230

main43410-06370iACV3#..MA200206-200407

main43410-33230iMCV30..VN..5FC;MCV30..PHL,TAIW,TH200203-200407

main43410-33240iACV30..5F;ACV30..PHL200203-200407

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iACV3#..(MA,TH)..4FC200203-200407

main90363-41002iACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH)200207-200408

sub90363-41003

main90363-41003iACV30..5F;ACV30,MCV30..24E,24V,30G,30V200409

main90363-8C000iACV31..TAIW200203-200404

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40010iMCV30200203-200212

sub90311-40028

main90311-40025iACV30..(IDN,VN)..5F200205-200509

sub90311-40030

main90311-40026iACV31..MA,TAIW,TH;ACV30..(MA,PHL,TH)..4FC200203-200510

sub90311-40041

main90311-40028iMCV30..5FC200212-200511

main90311-40029iMCV30..TH200405-200611

sub90311-40038

main90311-40030iACV30..5F200509-200611

sub90311-40036

main90311-40031iACV3#..4FC200510-200608

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iACV3#..(MA,TH)..4FC200203-200407

main9008C-52001iACV31,MCV30..(20J,30V)..TAIW200203-200404

main90520-38015iACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH)200207-200407

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06090iACV3#..RHD..4FC200203-200407

main42345-20040iACV3#..(20E,20G,24G,24V)..(IDN,PHL,TAIW,VN)200203-200407

sub42345-42100

main42345-48030iMCV30..IDN,VN;MCV30..30G..4FC200203-200407

main42345-8C000iACV31..TAIW200203-200404

main42345-8C001iMCV30..30V..TAIW200203-200404

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06040iACV3#..RHD..4FC200203-200407

main42345-28020iACV30..5F;ACV30..PHL200203-200407

sub42345-42090

main42345-44020iMCV30..IDN,VN;MCV30..30G..4FC200203-200407

main42345-8C002iACV31..TAIW200203-200404

main42345-8C003iMCV30..30V..TAIW200203-200404

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07020iACV3#..RHD..4FC200203-200407

main42345-42010iACV3#..(20E,20G,24G,24V)..(IDN,PHL,TAIW,VN)200204-200407

TYPE A:REFER ILLUST.

main9008C-94001iACV31..TAIW200203-200404

main90949-01559iACV3#..(20E,20G,24G,24V)..(IDN,PHL,TAIW,VN)200203-200407

TYPE B:REFER ILLUST.

main90949-01559iMCV30..30G200203-200204

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07010iACV3#..RHD..4FC200203-200407

main42345-12160iMCV30..IDN,VN;ACV3#,MCV30..(20E,20G,24G,24V,30G)..(IDN,PHL,TAIW,VN)..(4FC,5F)200203-200407

main9008C-94002iACV31,MCV30..(20J,30V)..TAIW200203-200404

43457BRACKET, DRIVE SHAFT BEARING

main43457-33010iMCV30..(IDN,TAIW,VN)..4FC200203-200407

main43457-33020iACV3#..4FC200203-200407

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200611

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iACV3#..RHD..4FC200203-200407

main43458-12010iMCV30..IDN,VN;ACV3#,MCV30..(20E,20G,24G,24V,30G)..(IDN,PHL,TAIW,VN)..(4FC,5F)200207-200407

main43458-8C000iACV31..TAIW200203-200404

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09A13iACV31..TAIW200203-200605

main43460-09A14iMCV30..30V..TAIW200203-200404

main43460-39156iMCV30..30G200203-200611

main43470-09810iACV3#..MA200203-200608

main43470-29625iACV3#..(20E,20G,24G,24V)..(IDN,PHL,TAIW)200203-200207

sub43470-29885

main43470-29626iACV3#..PHL,VN200207-200407

sub43470-29885

main43470-29885iACV30..5F;ACV30..PHL200405-200611

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-48011iACV3#..(20E,20G,24G,24V)..(IDN,PHL,TAIW,VN)200203-200407

sub43474-48020

main43474-48020iACV3#..(20E,20G,24G,24V)..(IDN,PHL,TAIW,VN)200212-200407

sub43474-48080

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100iACV3#..(MA,TH)..4FC200203-200407

main42345-14010iACV3#..(20E,20G,24G,24V)..(IDN,PHL,TAIW,VN)200203-200407

21 parts on this diagram · 6 diagrams in section
