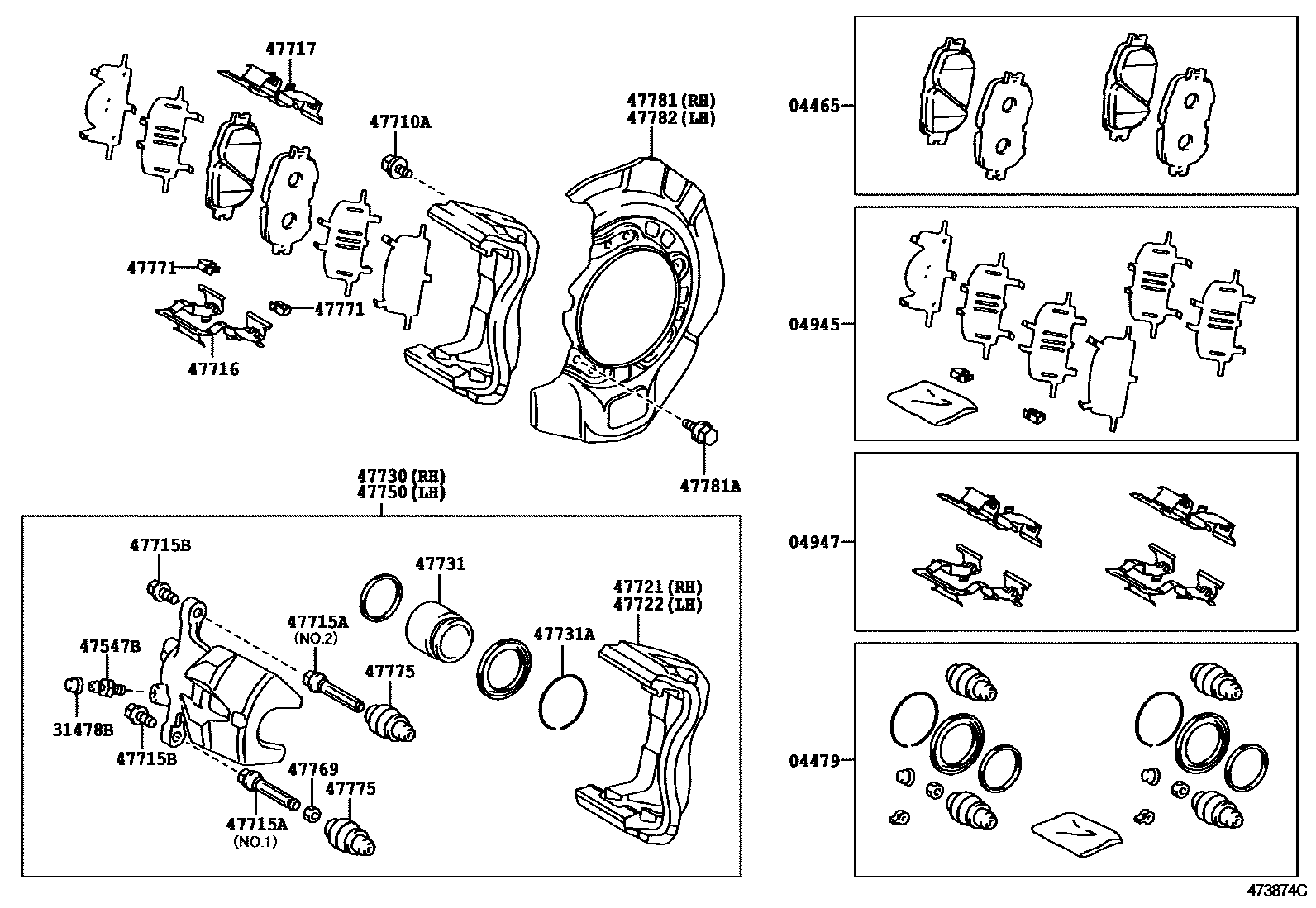

Toyota CAMRY — FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-06030iACV31,MCV30..TAIW200203-200605

MARK G PA533

main04465-33240iACV30,MCV30..IDN200205-200611

MARK AK PA533

main04465-33320iACV3#..TH200203-200307

MARK NBK PN540H

main04465-33340iACV3#..TH..4FC200307-200608

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06230iACV31,MCV30..TAIW200605

main04478-58010iACV31..MA;ACV30,MCV30..(24E,24G,24V,30V)..(MA,PHL,TH,VN)200605

main04479-06080iACV3#..(20E,24G)..TH..4FC200405

INDONESIA OR SINGAPORE SPEC

sub04479-06081

main04479-06080iACV3#..TH200203-200405

sub04479-06081

main04479-06090iACV31,MCV30..TAIW200203-200605

main04479-33150iACV31..MA;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..24E,24G,24V200205-200605

sub04478-58010

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06100iACV3#..(20E,24G)..TH..4FC200405

INDONESIA OR SINGAPORE SPEC

main04945-06100iACV3#..TH200203-200405

main04945-33090iACV31,MCV30..TAIW200203-200407

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33170iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iACV30,MCV30..IDN200203-200407

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iACV31,MCV30..TAIW200203-200611

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-06080iACV31,MCV30..TAIW200203-200404

NO.1

main47715-06090iACV31,MCV30..TAIW200203-200404

NO.2

main47715-22070iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

NO.1

main47715-33050iACV3#,MCV30..MA,PHL,VN200203-200407

NO.2

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90080-10247iACV31,MCV30..TAIW200203-200404

main90105-08164iACV30,MCV30..IDN200203-200407

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33110iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-33080iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06100iACV31,MCV30..TAIW200203-200404

main47721-06140iACV3#..TH200203-200405

main47721-33130iACV30..24G..4FC200405

INDONESIA SPEC

main47721-33130iACV30,MCV30..IDN200205-200407

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-06100iACV31,MCV30..TAIW200203-200404

main47721-06140iACV3#..TH200203-200405

main47721-33130iACV3#,MCV30..MA,PHL,VN200205-200407

main47721-33130iACV30..24G..4FC200405

INDONESIA SPEC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06100iACV31,MCV30..TAIW200203-200404

main47730-06140iACV3#..(20E,24G)..TH..4FC200203-200405

INDONESIA OR SINGAPORE SPEC

main47730-33190iACV3#,MCV30..IDN,MA,PHL,VN200205-200407

47731PISTON, FRONT DISC BRAKE

main47731-06080iACV30..24Q200405

INDONESIA OR SINGAPORE SPEC

main47731-06080iACV3#..TH200203-200405

main47731-33090iACV31,MCV30..TAIW200203-200407

sub47731-33340

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76002iACV30,MCV30..IDN200203-200407

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06100iACV31,MCV30..TAIW200203-200404

main47750-06140iACV3#..(20E,24G)..TH200203-200405

INDONESIA OR SINGAPORE SPEC

main47750-33190iACV3#,MCV30..IDN,MA,PHL,VN200205-200407

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-06030iACV31,MCV30..TAIW200203-200404

main47769-06040iACV3#..TH200203-200405

sub47769-0K220

main47769-06040iACV30..24Q200405

INDONESIA OR SINGAPORE SPEC

sub47769-0K220

main47769-50010iACV3#,MCV30..MA,PHL,VN200205-200407

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-06060iACV3#..(20E,24G)..TH..4FC200405

INDONESIA OR SINGAPORE SPEC

main47775-06060iACV3#..TH200203-200405

main47775-30070iACV31,MCV30..TAIW200203-200604

sub47775-50010

main47775-50010iACV31..MA,TAIW;ACV30,MCV30..24E,24G,24V,30G,30V200605

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06060iACV31,MCV30..TAIW200203-200404

sub47781-33030

main47781-28200iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

sub47781-28240

main47781-33030iACV3#,MCV30..IDN,TH200203-200407

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iACV31,MCV30..TAIW200203-200611

main90119-T0005iACV3#,MCV30..TH200209-200608

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06060iACV31,MCV30..TAIW200203-200404

sub47782-33030

main47782-28200iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

sub47782-28230

main47782-33030iACV3#,MCV30..MA,PHL,VN200203-200407

23 parts on this diagram · 1 diagram in section
