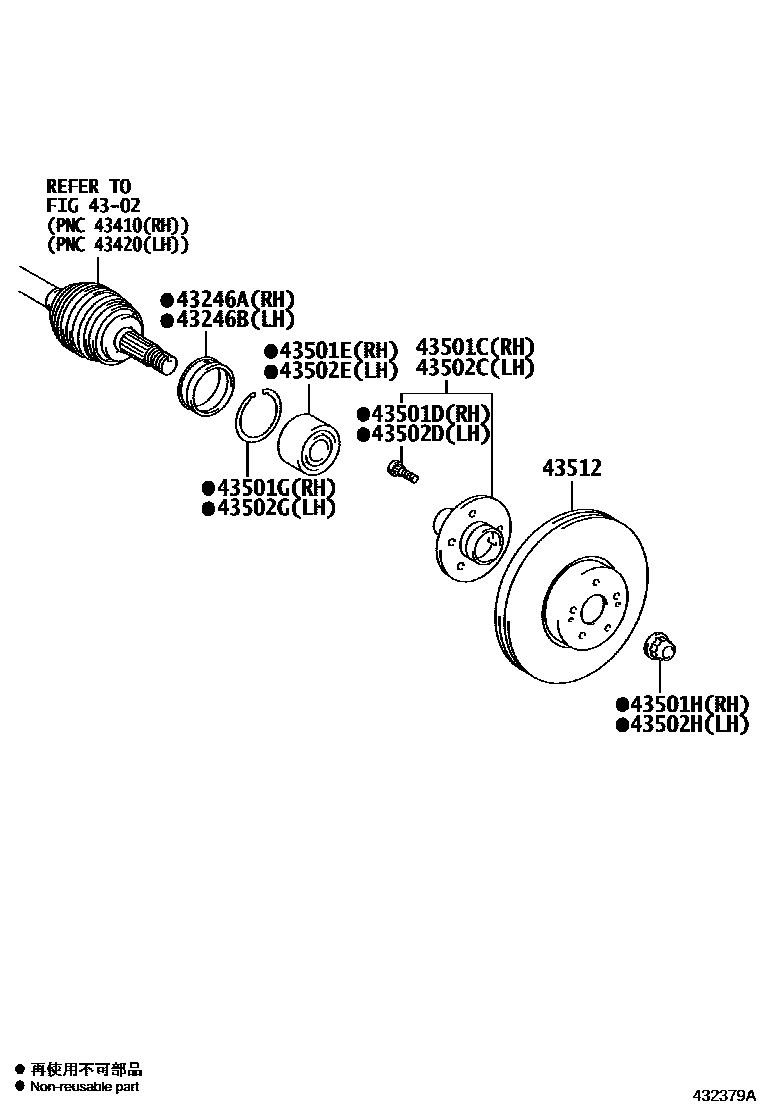

Toyota CAMRY — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-73010i201504

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-73010i201504

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-AA011i201504

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201504

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36193i201504-201706

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001i201504

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238i201504

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-AA011i201504

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201504

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36193i201504-201706

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001i201504

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238i201504

43512DISC, FRONT

main43512-06150×2i201504-201706

14 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CAMRY

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CAMRY. Key components include: FRONT DRIVE SHAFT, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH).
