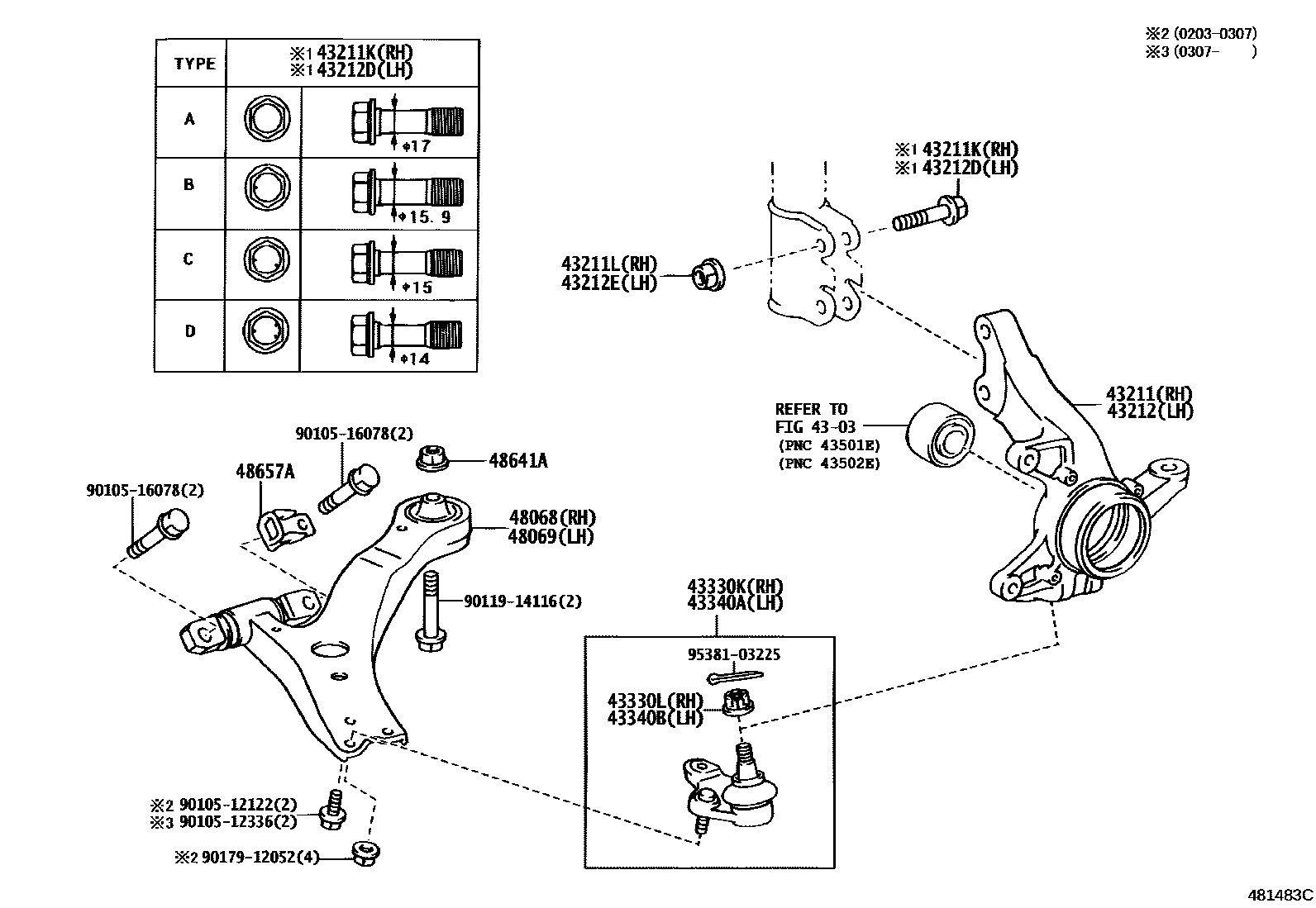

Toyota CAMRY — FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0004 1 0005 1

4303

43211KNUCKLE, STEERING, RH

main43211-06160iACV31,MCV30..TAIW200203-200404

main43211-06170iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200203-200407

main43211-06210iACV3#..MA200407

main43211-39045iACV3#,MCV30..PHL,VN200206-200407

main43211-58010iACV30,MCV30..PHL,VN200407

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008iACV3#,MCV30..TAIW,TH200404-200608

OD=17

main90105-17008iACV3#,MCV30..4FC,5F200203-200611

OD=17,TYPE A:REFER TO ILLUSTRATION

main90105-17009iACV3#,MCV30..IDN,TH200203-200611

OD=15.9,TYPE B:REFER TO ILLUSTRATION

main90105-17010iACV3#,MCV30..IDN,TH200203-200611

OD=15,TYPE C:REFER TO ILLUSTRATION

main90105-17011iACV3#,MCV30..IDN,TH200203-200611

OD=14,TYPE D:REFER TO ILLUSTRATION

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001iACV3#,MCV30..(20E,20G,24G,24V,30V)..(MA,PHL,VN)..(4FC,5F)200203-200611

43212KNUCKLE, STEERING, LH

main43212-06140iACV3#..MA200407

main43212-06200iACV31,MCV30..TAIW200203-200404

main43212-06210iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200203-200407

main43212-39035iACV3#,MCV30..PHL,VN200206-200407

main43212-58010iACV30,MCV30..PHL,VN200407

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008iACV3#,MCV30..(20E,20G,24G,24V,30V)..(MA,PHL,VN)..(4FC,5F)200203-200611

OD=17,TYPE A:REFER TO ILLUSTRATION

main90105-17008iACV3#,MCV30..TAIW,TH200404-200608

OD=17

main90105-17009iACV3#,MCV30..IDN,TH200203-200611

OD=15.9,TYPE B:REFER TO ILLUSTRATION

main90105-17010iACV3#,MCV30..MA,PHL,VN200203-200611

OD=15,TYPE C:REFER TO ILLUSTRATION

main90105-17011iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200611

OD=14,TYPE D:REFER TO ILLUSTRATION

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001iACV3#,MCV30..(20E,20G,24G,24V,30V)..(MA,PHL,VN)..(4FC,5F)200203-200611

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09180iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

main43330-29405iACV31,MCV30..TAIW200203-200405

sub43330-29615

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iACV3#,MCV30..(20E,20G,24G,24V,30V)..(MA,PHL,VN)..(4FC,5F)200203-200407

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-09020iACV3#,MCV30..IDN,TH200203-200407

main43340-29175iACV31,MCV30..TAIW..4FC200203-200405

sub43340-29215

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iACV3#,MCV30..(20E,20G,24G,24V,30V)..(MA,PHL,VN)..(4FC,5F)200203-200407

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-06080iACV31,MCV30..TAIW200203-200405

main48068-33050iACV3#,MCV30..IDN,TH200203-200407

sub48068-58010

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-06080iACV31,MCV30..TAIW..4FC200203-200405

main48069-33050iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

sub48069-58010

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90178-14008iACV31,MCV30..TAIW200203-200405

main90179-14068iACV3#,MCV30..MA,PHL,VN200203-200407

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-06020iACV31,MCV30..TAIW200203-200407

9010512122

main90105-12122

9010512336

main90105-12336

9010516078

main90105-16078

9011914116

main90119-14116

9017912052

main90179-12052

9538103225

main95381-03225

21 parts on this diagram · 3 diagrams in section
