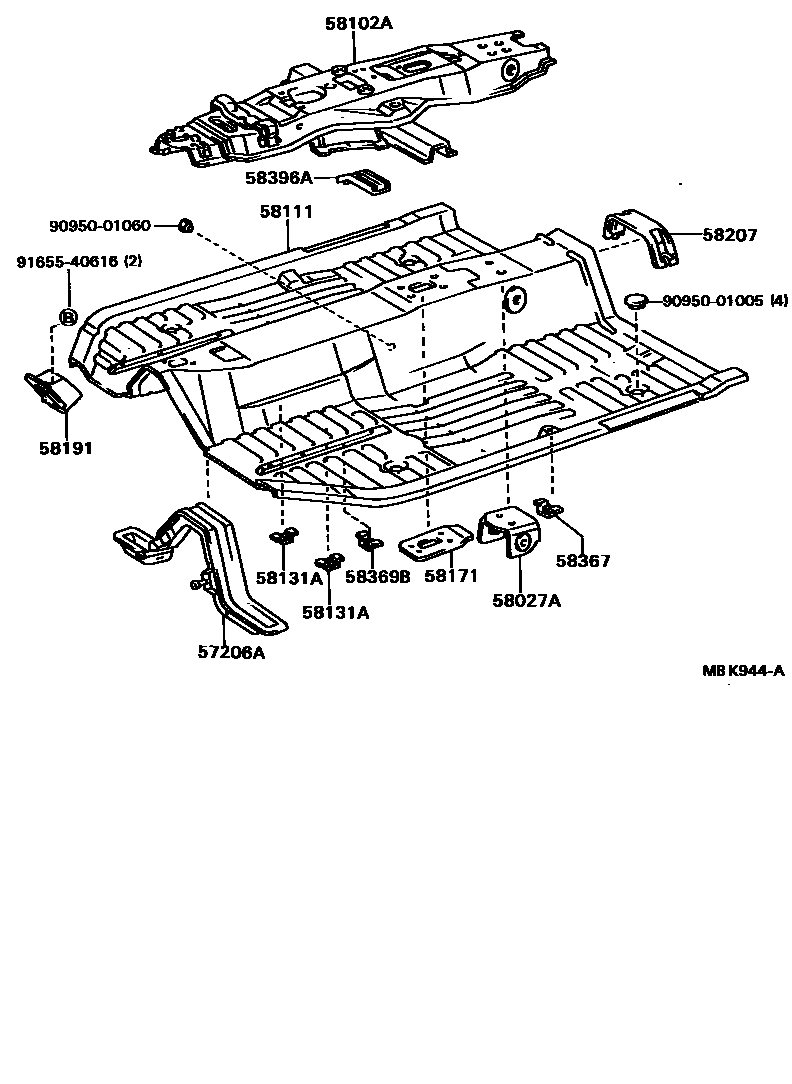

Toyota CAMRY — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-32010iSV2#198808-198904

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-32030iSV2#198611-198710

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-32900iSV2#198808-198904

58111PAN, FRONT FLOOR

main58111-32020iSV2#..4FC198611-198710

main58111-32030iSV21..5F198710-198904

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-32010×2iSV2#,VZV21198710-198808

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-32010iSV2#198611-198710

main58171-32010iSV20198802-198904

58191FOOTREST, FRONT FLOOR

main58191-32030iSV2#198808-198904

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-32020iSV2#198611-198710

58367BRACKET, FUEL TUBE CLAMP

main58266-22040iSV2#198611-198710

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010iSV2#198611-198710

58396ABRACKET, WIRE HARNESS CLAMP

main58396-32010iSV2#..5F198611-198710

9095001005

main90950-01005

9095001060

main90950-01060

9165540616

main91655-40616

14 parts on this diagram · 3 diagrams in section
