Toyota CAMRY — ENGINE OIL PUMP

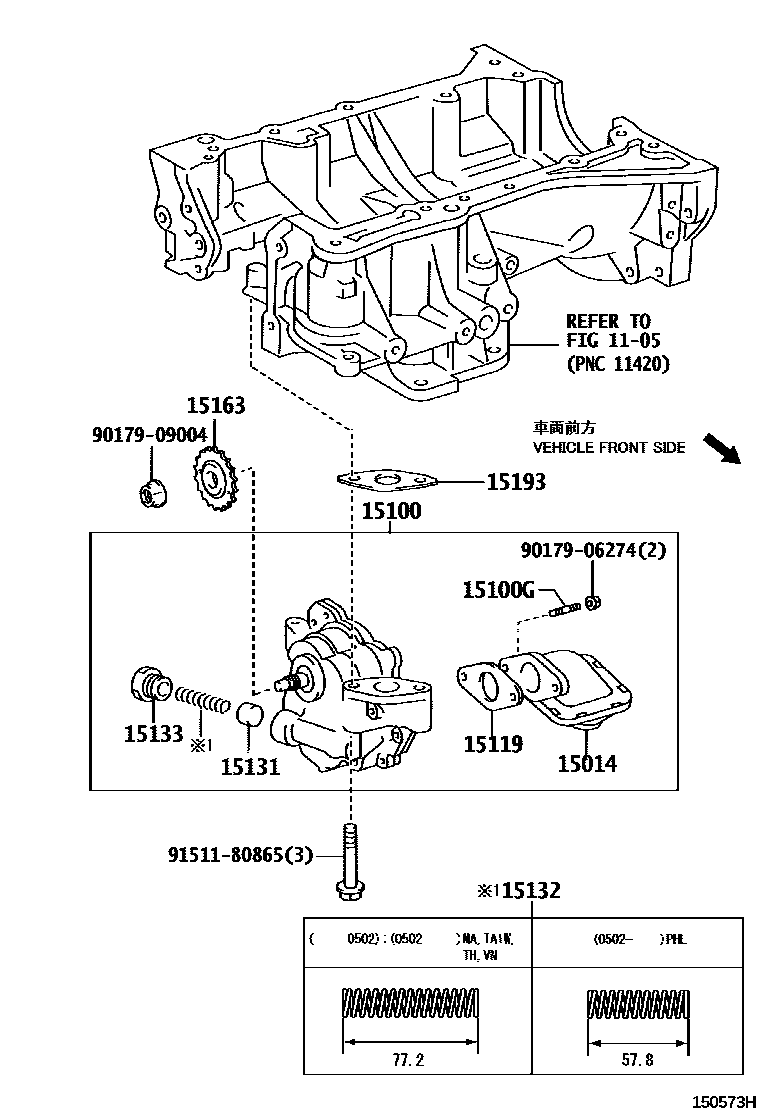

Parts diagram
1105
15014STRAINER SET, OIL PUMP
main15014-0H020i200203-200407
main15014-0H020i200404
*110
main15014-0H030i200404
*109
main15014-28020i200206-200407
15100PUMP ASSY, OIL
main15100-0H020i200203-200407
(L),*110
main15100-0H030i200203-200407
(L),*109
main15100-20050i200404
main15100-20060i200203-200407
main15100-28020i200407
main15100-28020i200203-200407
(J)
15100GBOLT,STUD(FOR OIL PUMP)
main15183-0H020i200404-200611
(L),*110
main15183-0H020i200203-200407
(L)
main15183-0H030i200404-200611
(L),*109
main15183-28020i200203-200611
(J)
main15183-28020i200206-200608
15119GASKET, OIL PUMP COVER
main15119-0H030i200609-200611
(L)
main15119-28020i200203-200608
main15119-28020i200404-200611
(J)
15131VALVE, OIL PUMP RELIEF
main15131-42021i200203-200407
main15131-46040i200203-200407
15132SPRING, OIL PUMP RELIEF VALVE
main15132-0H020i200404
*110
main15132-0H020i200203-200407
main15132-0H030i200404
*109
main15132-20020i200203-200407
main15132-28020i200206-200502
main15132-46020i200404
15133PLUG, OIL PUMP RELIEF VALVE
main15133-0H020i200404
*110
main15133-0H020i200203-200407
main15133-0H030i200609
*109
sub15133-0T070
main15133-17010i200404
main15133-20010i200203-200407
main15133-28020i200206-200407
main15133-28020i200404-200608
*109
15163GEAR, OIL PUMP DRIVE SHAFT
main15163-0H020i200203-200408
(L),*110
sub15163-0H030
main15163-0H030i200203-200512
(L),*109
sub15163-0H031
main15163-0H031i200512
(L),*109
main15163-28010i200203-200407
(J)
main15163-28010i200407
15193GASKET, OIL PUMP
main15193-28010i200203-200611
main15193-28010i200206-200407
(J)
9017906274
main90179-06274
9017909004
main90179-09004
9151180865
main91511-80865

13 parts on this diagram · 2 diagrams in section
