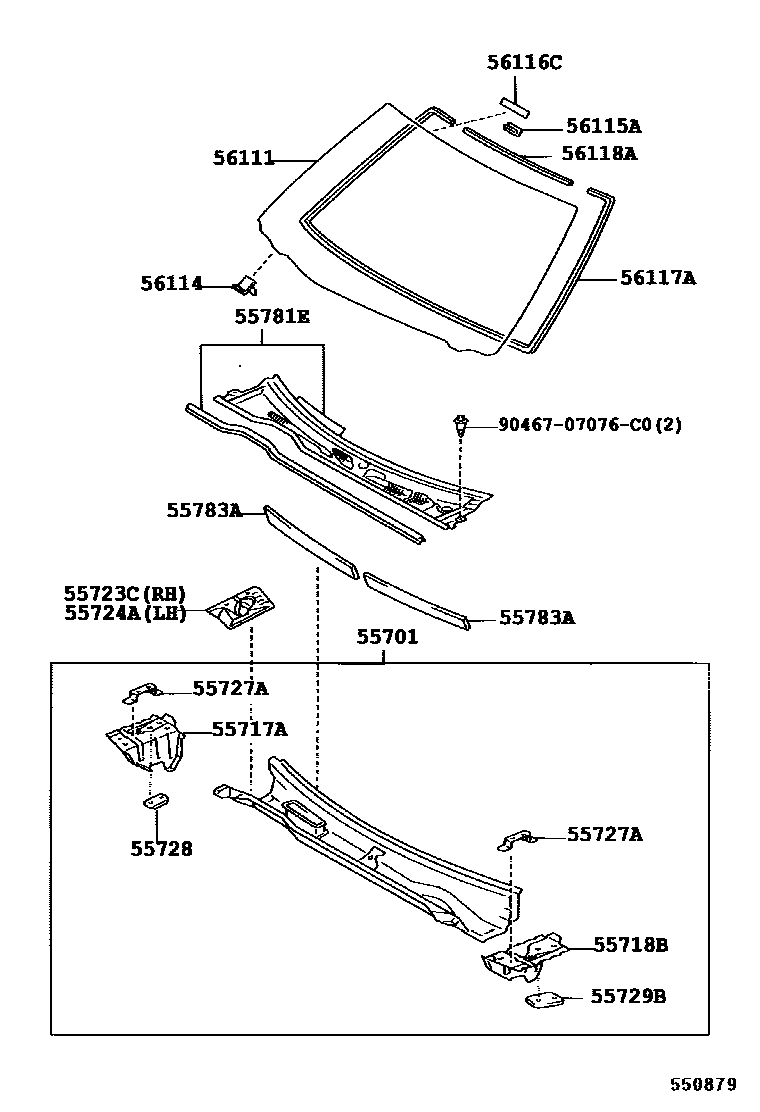

Toyota CAMRY — COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-06170iACV3#,MCV30..LHD..(4FC,5F)200203-200611

main55700-06180iACV3#,MCV30..RHD200203-200608

55717APANEL, COWL TOP SIDE, INNER RH

main55717-33030iACV3#,MCV30200203-200204

sub55717-33031

main55717-33031iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200204-200407

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200611

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-06050iACV3#,MCV30..LHD..(4FC,5F)200401-200611

main55724-33030iACV3#,MCV30..LHD200203-200608

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

55729BREINFORCEMENT, HOOD STOPPER, LH

main55729-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06030iACV31,MCV30..TAIW200203-200312

sub55708-06031

main55708-06060iMCV30..30V..TAIW200404

main55708-06070iACV31,MCV30..TAIW200312-200404

main55708-33030iACV3#,MCV30..PHL,VN200206-200407

main55708-33040iACV3#,MCV30..RHD200203-200206

main55708-33070iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200206-200407

55783APAD, COWL TOP SILENCER

main55783-06020iACV3#,MCV30..MA,PHL,VN200405-200407

main55783-33040iACV3#,MCV30..4FC,5F200203-200405

56111GLASS, WINDSHIELD

main56101-06020iACV31..20J200203-200404

*LAM,T=4.7,GREEN

main56101-06030iACV31..(20E,20G)..TAIW200203-200404

*LAM,T=4.7,GREEN

main56101-06040iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

*LAM,T=4.7,GREEN,W(MIRROR W/AUTO DIMMER)

main56101-06050iACV30..24G..4FC200405

*LAM,T=4.7,GREEN,INDONESIA SPEC

sub56101-06071

main56101-06050iACV3#,MCV30..IDN,MA200205-200407

*LAM,T=4.7,GREEN

sub56101-06071

main56101-06060iACV3#,MCV30..PHL,VN200206-200407

*LAM,T=4.7,GREEN

main56101-06070iACV3#..(20E,24G)..TH..4FC200203-200405

*LAM,T=4.7,GREEN

sub56101-06071

main56101-06080iACV31,MCV30..(20E,20G,30G)..TAIW200404

*LAM,T=4.7,GREEN

main56101-06090iMCV30..TAIW200404

*LAM,T=4.7,GREEN,W(RAIN SENSOR)

main56101-06100iMCV30..PHL,VN200407

*LAM,T=4.7,GREEN

main56101-06110iACV30,MCV30..RHD..(24V,30V)200407

*LAM,T=4.7,GREEN

main56101-06120iACV31..TH200405

*LAM,T=4.7,GREEN,W(RAIN SENSOR)

main56101-06140iACV30..TH..4FC200405

*LAM,T=4.7,GREEN,W(RAIN SENSOR)

sub56101-06141

56114RETAINER, WINDSHIELD GLASS

main56114-22050iMCV30..5FC;ACV31..MA,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-02020iACV31,MCV30..TAIW200404

(L)

main56115-02020iACV3#..TH200303-200405

main56115-30100iACV3#..TH200203-200407

main56115-30100iACV31,MCV30..TAIW200404

(J)

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020iACV3#..TH200203-200405

main56116-02020iACV31,MCV30..TAIW200404

(L)

main56116-22050iACV3#..TH200203-200407

main56116-22050iACV31,MCV30..TAIW200404

(J)

56117ADAM, WINDOW GLASS ADHESIVE

main56117-06020iACV3#..TH200402-200405

L=3454

sub56117-33060

main56117-06020iACV3#..TH..4FC200405

L=3454,(L)

sub56117-33060

main56117-33060iACV3#..TH200203-200407

L=3454

sub56117-64010

main56117-33060iACV31..MA;ACV30,MCV30..RHD..(24G,24V,30V)200405

L=3454,(J)

sub56117-64010

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-06020iACV3#..TH..4FC200402-200405

*D,L=685

sub56118-33050

main56118-06020iACV31..MA;ACV30,MCV30..RHD..(24G,24V,30V)200405

*D,L=685,(L)

sub56118-33050

main56118-33050iACV31..MA;ACV30,MCV30..RHD..(24G,24V,30V)200405

L=685,(J)

sub56117-52040

main56118-33050iACV3#..TH200203-200407

L=685

sub56117-52040

9046707076C0

main90467-07076C0

17 parts on this diagram · 1 diagram in section
