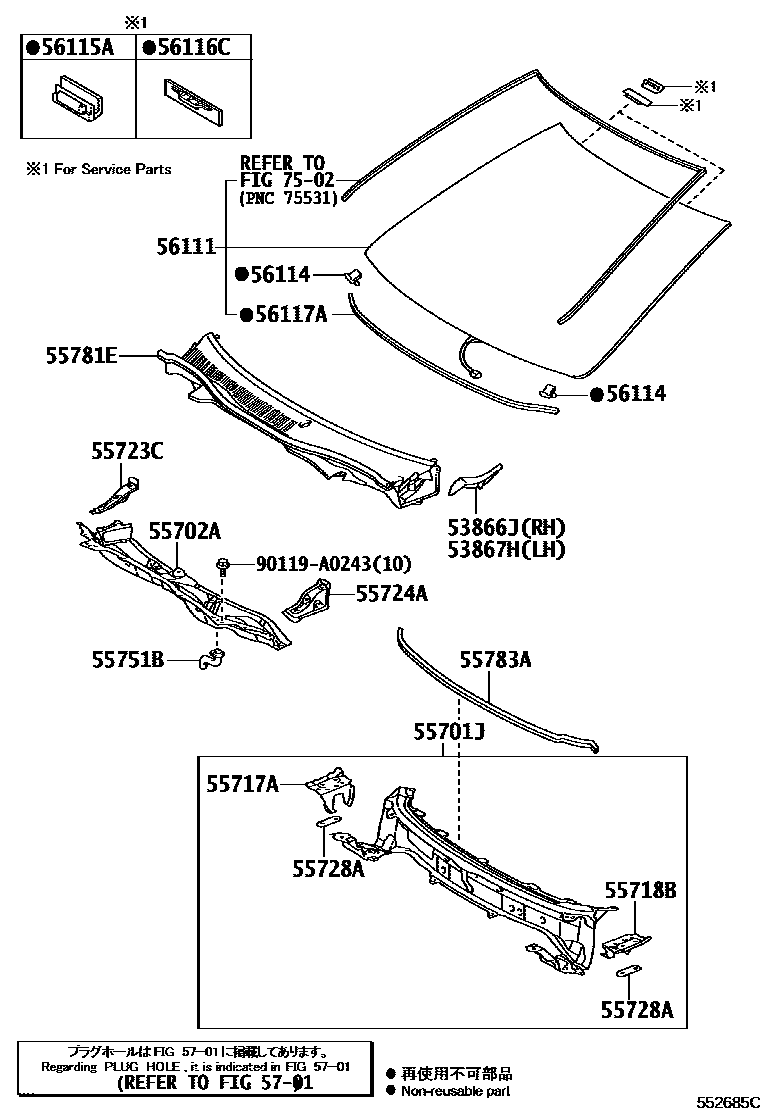

Toyota CAMRY — COWL PANEL & WINDSHIELD GLASS

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-06110i201504

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-06110i201504

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-06270i201504

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-06090i201504

55717APANEL, COWL TOP SIDE, INNER RH

main55717-06120i201504

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-06120i201504

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-06110i201504

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-06120i201504

55728AREINFORCEMENT, HOOD STOPPER

main55728-06090×2i201504

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-06110i201504

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06140i201504

55783APAD, COWL TOP SILENCER

main55783-06090×2i201504

56111GLASS, WINDSHIELD

main56101-06540i201504

*HSEAL,T=4.76,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-33050×2i201504

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120i201504

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i201504

56117ADAM, WINDOW GLASS ADHESIVE

main90998-91004i201504

*D,L=1358

5701HOLE PLUG

→ Go to FIG 57-01

7502FRONT MOULDING

→ Go to FIG 75-02

90119A0243

main90119-A0243

20 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CAMRY

This section contains 20 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CAMRY. Key components include: SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, PANEL SUB-ASSY, COWL TOP, OUTER, PANEL SUB-ASSY, COWL TOP, OUTER FRONT, PANEL, COWL TOP SIDE, INNER RH.
