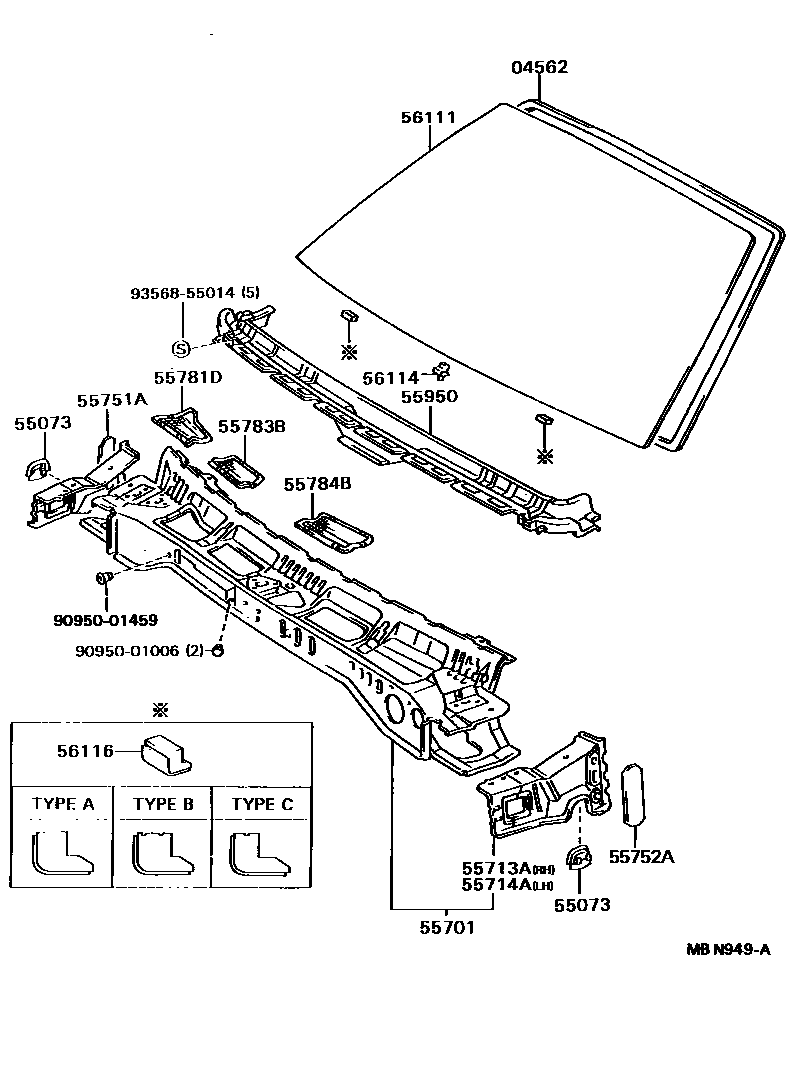

Toyota CAMRY — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040i198808-199106

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-32020×2i198808-199106

55701PANEL SUB-ASSY, COWL

main55700-32230i198808-198810

main55700-32231i198810-199106

55713APANEL, COWL TOP SIDE, RH

main55713-32020i198808-199106

55714APANEL, COWL TOP SIDE, LH

main55714-32020i198808-199106

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-32010i198808-199106

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55751-32010i198808-199106

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-32040i198808-199106

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-32040i198808-199106

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-32040i198808-199106

55950NOZZLE ASSY, DEFROSTER

main55950-32031i198808-199106

56111GLASS, WINDSHIELD

main56111-32140i198808-199106

*LAM,T=5.3

56114RETAINER, WINDSHIELD GLASS

main56114-32010×2i198808-199106

56116SPACER, WINDSHIELD GLASS

main56116-32040×2i198808-199106

TYPE A

main56116-32050×2i198808-199106

TYPE B

main56116-32060×2i198808-199106

TYPE C

9095001006

main90950-01006

9095001459

main90950-01459

9356855014

main93568-55014

17 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CAMRY

This section contains 17 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CAMRY. Key components include: DAM KIT, WINDSHIELD GLASS, NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH.
