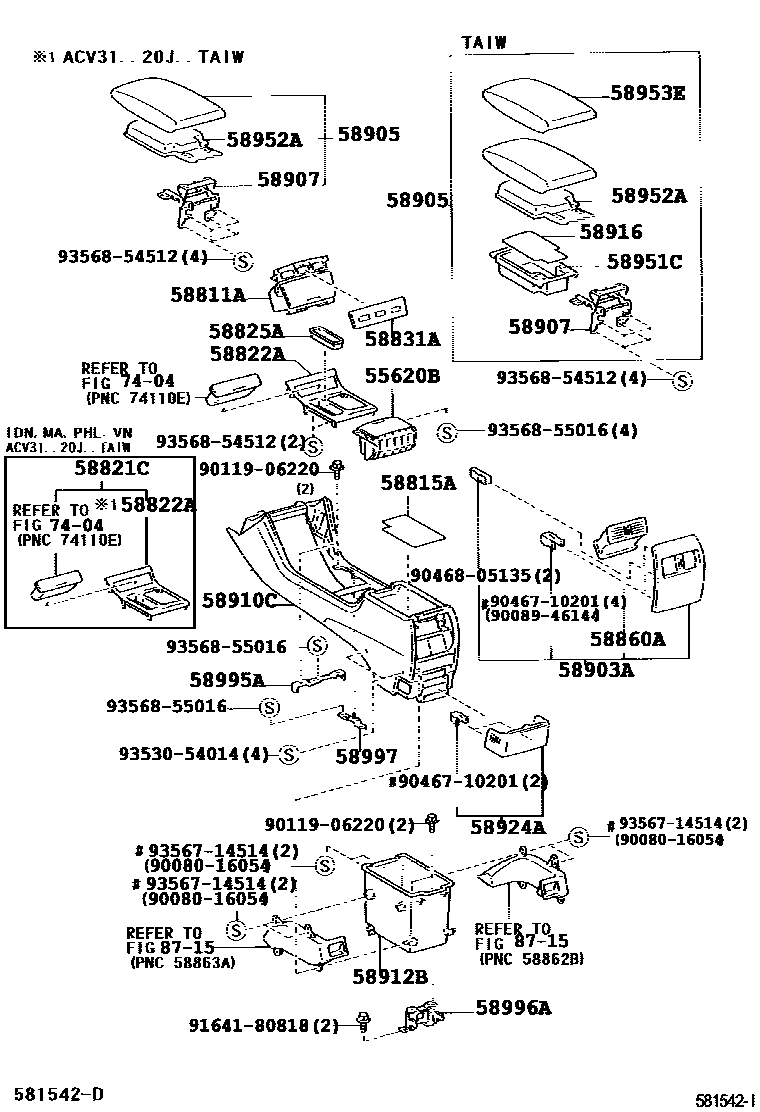

Toyota CAMRY — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-06020iACV31..20J200203-200404

main55620-06030iACV3#..(20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC;ACV31,MCV30..(20E,20G,30G,30V)..(IDN,TAIW,VN)..4FC200203-200407

main55620-06040iACV3#,MCV30..ATM..(TAIW,TH)200404

WOOD GRAIN

main55620-33100iACV30..IDN..5F200205-200405

main55620-33140-E0iACV30..VN200207-200407

SANDAL WOOD,TRIM4#

main55620-33150iACV30..5F200405

58811ABOX, CONSOLE, FRONT

main58802-06010iACV31..20J200203-200404

main58802-06020iACV3#..(20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC;ACV31,MCV30..(20E,20G,30G,30V)..(IDN,TAIW,VN)..4FC200203-200407

main58802-06030iACV3#,MCV30..(20E,24V,30V)..(MA,PHL,VN)200407-200611

main58811-33070-A0iACV30..VN200207-200407

IVORY,TRIM4#

main58811-33080-A0iACV30..TH..5F200405-200608

IVORY,TRIM0#

58815ACARPET, CONSOLE BOX

main58815-06010iACV31,MCV30..TAIW200203-200404

58821CPANEL, CONSOLE, UPPER

main58804-33550iACV30..TH..5F200405

main58805-06010iACV31..20E..(MA,PHL)200206-200407

main58805-06020iACV3#..(20G,24G,24V)..(IDN,MA,PHL)..4FC;ACV31,MCV30..(20E,20G,30G,30V)..(IDN,TAIW,VN)..4FC200203-200407

main58821-33300iACV30..VN200207-200407

main58821-33360iACV30..IDN..5F200205-200405

main58821-33440iACV30..VN200407

58822APANEL, CONSOLE, UPPER REAR

main58805-33030iACV30..IDN..5F200205-200310

main58805-33031iACV30..IDN..5F200310-200405

main58805-33060-E0iACV30..VN200207-200310

SANDAL WOOD,TRIM4#

main58805-33061-E0iACV30..VN200310-200407

SANDAL WOOD,TRIM4#

main58822-06010iACV30..24E200407

main58822-06020iACV3#..(20G,24G,24V)..(IDN,MA,PHL)..4FC;ACV31,MCV30..(20E,20G,30G,30V)..(IDN,TAIW,VN)..4FC200203-200407

main58822-06030iACV31..TH200203-200405

main58822-06040iACV30..TH200203-200405

main58822-06050iACV30..24V;MCV30..5FC;ACV31..MA,TAIW200404

main58822-06060iACV3#,MCV30..TH..4FC200405

WOOD GRAIN

main58822-33080iACV30..5F200405

58825APOCKET, CONSOLE BOX

main58825-06010iACV3#,MCV30..(IDN,TH)..4FC200206-200405

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-06010iMCV30..IDN200205-200405

main58831-06020iACV31..MA200203-200407

main58831-06030iACV31..20E..PHL200206-200407

main58831-06040iACV3#..(20G,24V)..PHL;ACV31..(20E,20G)..TAIW200203-200407

main58831-06050iACV31,MCV30..(20G,30G)..TAIW200203-200404

W(POWER REAR WINDOW SUN SHADE)

main58831-06060iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(POWER REAR WINDOW SUN SHADE & VSC)

main58831-06070iACV30..24G..4FC200203-200405

main58831-06080iACV31..TAIW200404

main58831-06090iACV30..RHD..(24Q,24V)200203-200407

main58831-06100iACV3#..(20E,24G)..TH..4FC200405

WOOD GRAIN

main58831-06110iACV31..20G..TAIW200404

W(POWER REAR WINDOW SUN SHADE)

main58831-06130iACV31..20G..TAIW200404

W(POWER REAR WINDOW SUN SHADE & VSC)

main58831-06140iACV30,MCV30..RHD..(24Q,24V,30V)200405

main58831-06150iACV31..TAIW200404

W(VSC)

main58831-06210iMCV30..TAIW200404

W(POWER REAR WINDOW SUN SHADE & VSC)

main58831-06220iMCV30..30G200404

main58831-06230iMCV30..PHL,VN200407

main58831-33020iACV30..VN200207-200407

main58831-33040iACV30..IDN..5F200205-200405

58860AREGISTER ASSY, CONSOLE BOX

main58860-06010-A0iACV30..(IDN,MA,PHL)..4FC;ACV31,MCV30..MA,PHL,TH,VN200309-200405

IVORY,TRIM4#

main58860-06010-B0iACV31..20J200203-200404

STONE,TRIM1#

main58860-06010-C0iACV31..TH200405-200608

BLACK,TRIM01

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-06010-C0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

BLACK,TRIM1#,4#

main58903-06020-A1iACV31..RHD;ACV30..MA,PHL;MCV30..(PHL,VN)..5FC200405-200611

IVORY,TRIM0#

main58903-06020-B1iACV31..20J200203-200404

STONE,TRIM1#

main58903-06030-C0iACV3#,MCV30..TH..4FC200405-200608

WOOD GRAIN,BLACK,TRIM0#

main58903-33040-A0iACV30..VN200205-200407

IVORY,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-06030-A1iACV30..VN200207-200407

IVORY,TRIM4#

main58905-06040-A1iMCV30..VN200407-200611

IVORY,TRIM0#

main58905-06050-A1iACV31..TH200203-200405

IVORY,TRIM4#

main58905-06060-A1iACV3#,MCV30..TH..4FC200405-200608

LEATHER,IVORY,TRIM0#

main58905-06070-A1iACV30..IDN200205-200405

IVORY,TRIM4#

main58905-06080-A1iMCV30..IDN200205-200405

IVORY,TRIM4#

main58905-06090-A1iACV31..20J200203-200309

IVORY,TRIM4#

main58905-06090-B1iACV31..20J200203-200404

STONE,TRIM1#

main58905-06100-A1iACV31,MCV30..TAIW200405-200605

IVORY,TRIM0#

main58905-06100-B1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

STONE,TRIM1#

main58905-06100-C0iACV31,MCV30..TAIW200405-200605

BLACK,TRIM2#

main58905-06110-A0iACV3#..PHL200206-200407

IVORY,TRIM4#

main58905-06120-A1iACV3#..MA200206-200407

IVORY,TRIM4#

main58905-06130-A0iACV30,MCV30..(24V,30V)..PHL200407-200608

IVORY,TRIM0#

main58905-06150-A1iACV3#..MA200407-200608

IVORY,TRIM0#

main58905-06160-A0iACV30..24E200407-200608

IVORY,TRIM0#

main58905-06170-A0iACV31..TH;ACV30..TH..5F200405-200608

IVORY,TRIM0#

main58905-06190-A0iACV30..VN200407-200611

IVORY,TRIM0#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-33080iACV31,MCV30..TAIW200203-200404

58910CBOX ASSY, CONSOLE, REAR

main58911-06040-A0iACV3#,MCV30..LHD..4FC200203-200309

IVORY,TRIM4#

main58911-06040-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main58911-06040-C0iACV31,MCV30..TAIW200404-200405

BLACK,TRIM2#

main58911-06050-A0iMCV30..IDN;ACV3#..RHD..4FC200203-200407

IVORY,TRIM4#

main58911-33110-A0iACV30..IDN..5F200205-200405

IVORY,TRIM4#

58912BBOX, REAR CONSOLE, LOWER

main58912-06030iACV3#,MCV30..(MA,PHL,VN)..4FC200203-200407

main58912-33100iACV30..IDN..5F200205-200405

58916MAT, BOX BOTTOM

main58916-06040iACV31,MCV30..TAIW200203-200404

main58916-33070iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405

58924APANEL, CONSOLE REAR END, NO.2

main58924-06010-A0iMCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)200405-200611

IVORY,TRIM0#

main58924-06010-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main58924-06010-C0iACV31,MCV30..TAIW200405-200605

BLACK,TRIM2#

main58924-33020-A0iACV30..(IDN,VN)..5F200205-200407

IVORY,TRIM4#

58951CDOOR, BOX

main58951-06050iACV31,MCV30..TAIW200203-200404

main58951-33050iACV30..24E;ACV3#,MCV30..MA,VN200407

58952ADOOR, CONSOLE COMPARTMENT, INNER

main58952-06010iACV3#,MCV30..(TAIW,TH)..4FC200203-200405

58953ECOVER, CONSOLE COMPARTMENT DOOR PAD

main58953-06010-A0iACV31..20J200203-200309

IVORY,TRIM4#

main58953-06010-B0iACV31..20J200203-200404

STONE,TRIM1#

main58953-06020-A0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

IVORY,TRIM4#

main58953-06020-B0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

STONE,TRIM1#

main58953-06020-C0iACV31,MCV30..TAIW200405-200605

BLACK,TRIM2#

main58953-06100-A0iMCV30..VN200407-200611

IVORY,TRIM0#

main58953-06120-A0iACV30..VN200407-200611

IVORY,TRIM0#

main58953-06130-A0iACV3#..MA200407-200608

IVORY,TRIM0#

main58953-06150-A0iACV30..24E200407-200608

IVORY,TRIM0#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-06020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)200404

main58995-33030iACV30..5F200405

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-06020iACV3#,MCV30..(MA,PHL,VN)..4FC200203-200407

main58996-33030iACV30..VN200205-200407

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-06020iACV31,MCV30..TAIW200203-200404

7404

8715

9008016054

main90080-16054

9008946144

main90089-46144

9011906220

main90119-06220

9046710201

main90467-10201

9046805135

main90468-05135

9164180818

main91641-80818

9353054014

main93530-54014

9356714514

main93567-14514

9356854512

main93568-54512

9356855016

main93568-55016

33 parts on this diagram · 4 diagrams in section
