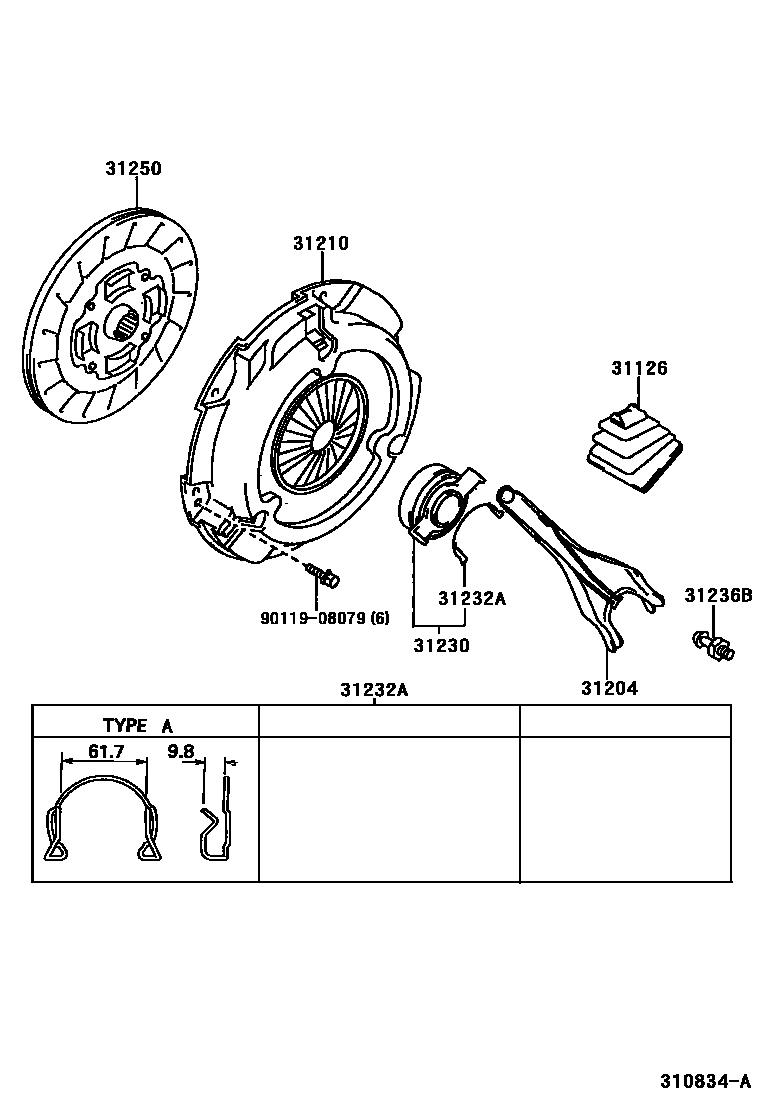

Toyota CAMRY — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iACV30..(IDN,VN)..5F200205-200407

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iACV30..(IDN,VN)..5F200205-200407

31210COVER ASSY, CLUTCH

main31210-28060iACV30..IDN..5F200205-200508

sub31210-33040

main31210-33040iACV30..5F200509

sub31210-33041

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iACV30..(IDN,VN)..5F200205-200607

main31230-33020iACV30..5F200607

31232ACLIP, RELEASE BEARING HUB

main31232-20020iACV30..(IDN,VN)..5F200205-200407

TYPE A:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-20060iACV30..(IDN,VN)..5F200205-200407

31250DISC ASSY, CLUTCH

main31250-28180iACV30..IDN..5F200205-200510

sub31250-28181

main31250-28181iACV30..5F200511

sub31250-33060

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
