Toyota CAMRY — CLUTCH & RELEASE FORK

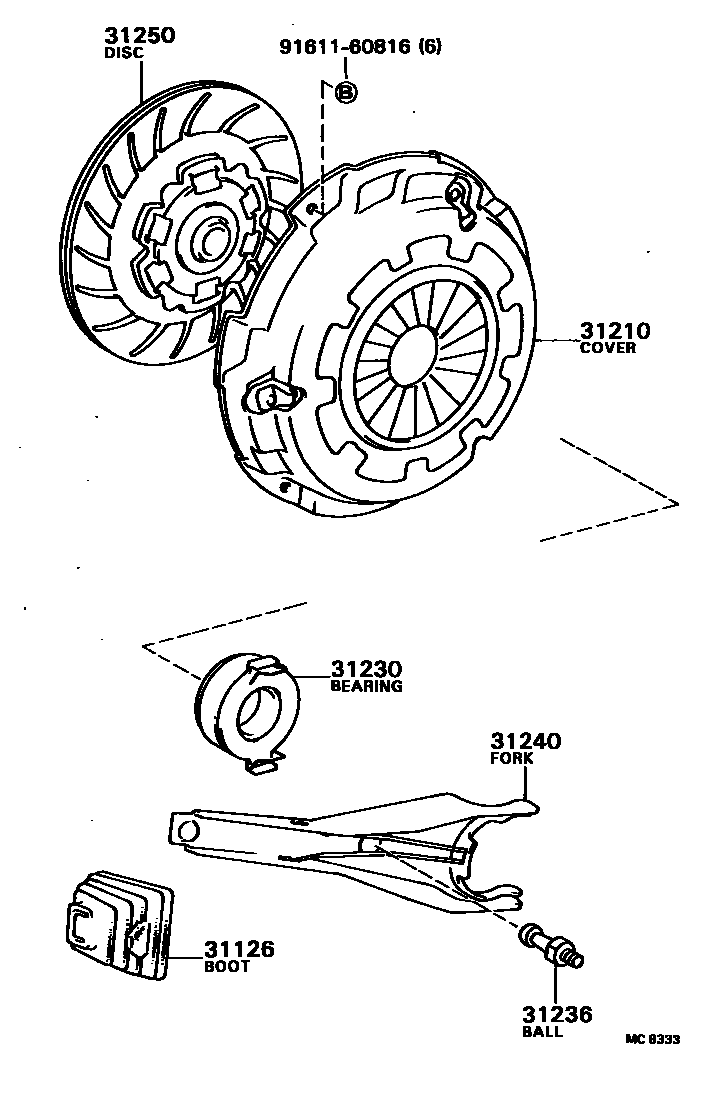

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-32010i198210-198610

31210COVER ASSY, CLUTCH

main31210-32010i198605-198610

main31210-32020i198210-198610

main31210-32080i198605-198610

31230BEARING ASSY, CLUTCH RELEASE

main31230-32020i198303-198609

main31230-32040i198210-198609

31236BALL, RELEASE FORK

main31236-30030i198210-198610

31240FORK ASSY, CLUTCH RELEASE

main31204-32010i198210-198610

31250DISC ASSY, CLUTCH

main31250-32010i198308-198508

main31250-32021i198210-198312

main31250-32023i198312-198409

main31250-32024i198409-198609

main31250-32025i198609-198610

main31250-32030i198210-198403

main31250-32031i198403-198508

main31250-32032i198508-198610

main31250-32050i198508-198607

main31250-32060i198607-198610

9161160816

main91611-60816

7 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota CAMRY

This section contains 7 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CAMRY. Key components include: BOOT, CLUTCH RELEASE FORK, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, BALL, RELEASE FORK, FORK ASSY, CLUTCH RELEASE.
