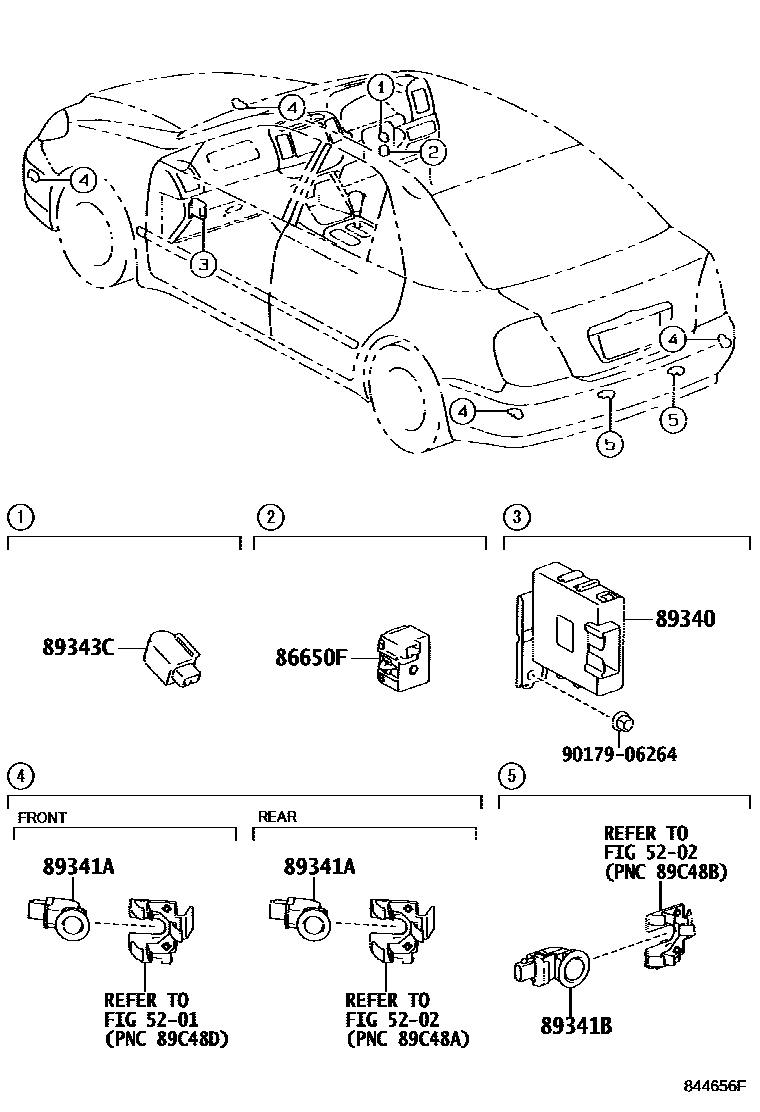

Toyota CAMRY — CLEARANCE & BACK SONAR

0001 1 0002 1

5201

5202

86650FBUZZER ASSY

main89343-33030iACV31,MCV30..TAIW200203-200405

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-33010iACV3#,MCV30..(20E,20G,20J,24G,30G)..(IDN,TAIW)..(4FC,5F)200203-200405

PART NUMBER LABEL=89340-33010

main89340-33020iMCV30..(IDN,TAIW)..4FC;ACV3#..(20G,24G,24Q)..(TAIW,TH)200203-200405

PART NUMBER LABEL=89340-33020

main89340-33030iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

PART NUMBER LABEL=89340-33030

main89340-33040iMCV30..30G;ACV3#,MCV30..(20G,24G,24Q,30V)..(TAIW,TH)..(4FC,5F)200404-200608

PART NUMBER LABEL=89340-33040

main89340-33040iACV30,MCV30..PHL200407-200608

main89340-33050iACV31,MCV30..(20G,30G)..TAIW200404-200405

main89340-33050iMCV30..30V..TAIW200404-200605

PART NUMBER LABEL=89340-33050

89341ASENSOR, ULTRASONIC, NO.1

main89341-0M040iACV3#,MCV30..(20G,24E,24V,30G,30V)..(PHL,TAIW)200409-200504

BLACK

sub89341-33080

main89341-0M050iACV3#,MCV30..(20G,24E,24V,30G,30V)..(PHL,TAIW)200409-200504

SILVER

sub89341-33090

main89341-0M060iACV3#,MCV30..(20G,24E,24V,30G,30V)..(PHL,TAIW)200409-200504

WHITE

sub89341-33100

main89341-12080iACV31..20G..TAIW;ACV30,MCV30..PHL,TAIW200404-200409

P/N LABEL=8934112080

sub89341-33090

main89341-28370iACV30,MCV30..TH200404-200409

P/N LABEL=8934128370

sub89341-33080

main89341-33030iACV30,MCV30..TH200404-200409

P/N LABEL=8934133030

main89341-33080iACV3#,MCV30..(20G,24E,24V,30G,30V)..(PHL,TAIW)200407

BLACK

main89341-33090iACV3#,MCV30..(20G,24E,24V,30G,30V)..(PHL,TAIW)200407

SILVER

main89341-33100iACV30,MCV30..TH200407

WHITE

89341BSENSOR, ULTRASONIC, NO.2

main89341-0M010iMCV30..PHL;ACV3#,MCV30..LHD..(20E,20G,24E,24V,30G)200409-200504

BLACK

sub89341-33050

main89341-0M020iMCV30..PHL;ACV3#,MCV30..LHD..(20E,20G,24E,24V,30G)200409-200504

SILVER

sub89341-33060

main89341-0M030iMCV30..PHL;ACV3#,MCV30..LHD..(20E,20G,24E,24V,30G)200409-200504

WHITE

sub89341-33070

main89341-12050iACV31..TAIW;ACV30,MCV30..(IDN,TAIW,TH)..(4FC,5F)200203-200405

main89341-12070iACV31..TAIW;ACV30,MCV30..(IDN,TAIW,TH)..(4FC,5F)200203-200405

##

main89341-33020iACV31..TAIW;ACV30,MCV30..(IDN,TAIW,TH)..(4FC,5F)200203-200405

###

main89341-33040iMCV30..PHL;ACV31..TAIW;ACV30,MCV30..24E,24V,30G200404-200409

P/N LABEL=8934133040

main89341-33050iMCV30..PHL;ACV3#,MCV30..LHD..(20E,20G,24E,24V,30G)200407

BLACK

main89341-33060iMCV30..PHL;ACV3#,MCV30..LHD..(20E,20G,24E,24V,30G)200407

SILVER

main89341-33070iMCV30..PHL;ACV3#,MCV30..LHD..(20E,20G,24E,24V,30G)200407

WHITE

main89341-52010iMCV30..PHL;ACV31..TAIW;ACV30,MCV30..24E,24V,30G200404-200409

P/N LABEL=8934152010

sub89341-33050

main89341-52020iACV30,MCV30..TH200404-200409

P/N LABEL=8934152020

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-33010iACV31,MCV30..(20G,30G,30V)..TAIW200203-200405

9017906264

main90179-06264

8 parts on this diagram · 2 diagrams in section
