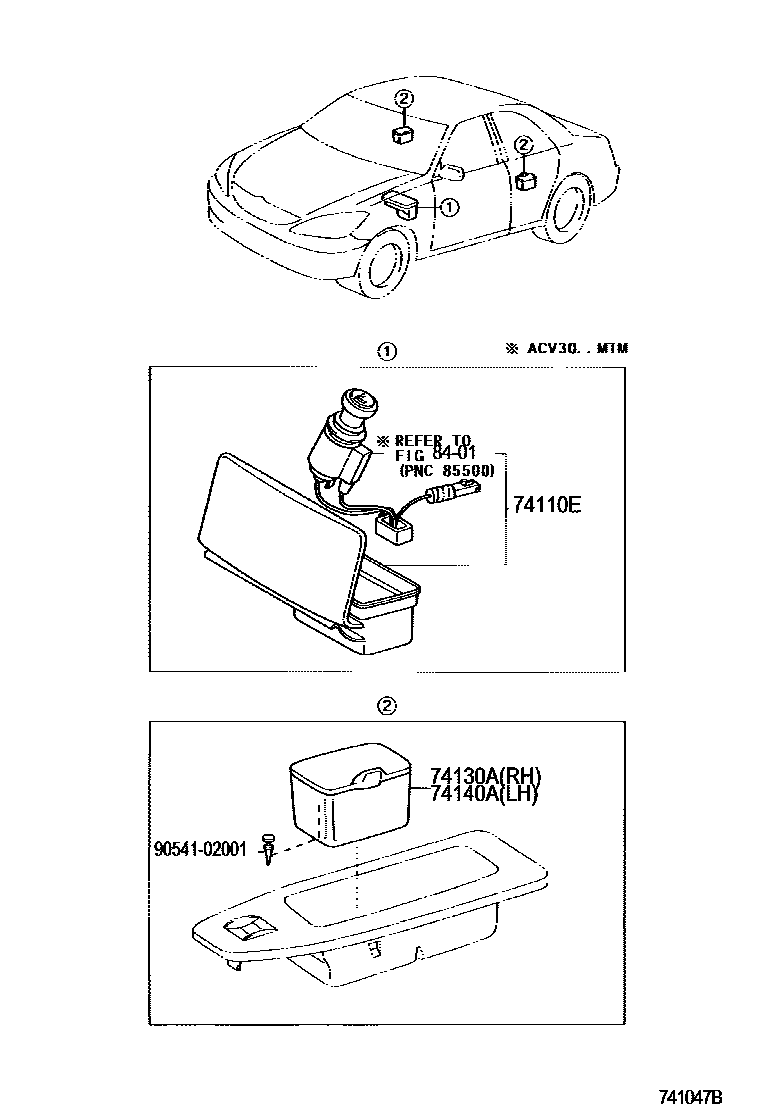

Toyota CAMRY — ASH RECEPTACLE

74110ERECEPTACLE ASSY, FRONT ASH

main74110-06010iACV30..24V;MCV30..5FC;ACV31..MA,TAIW200404

main74110-06020iACV3#,MCV30..TH..4FC200405

main74110-06030iACV31..20E..(MA,PHL,TH)200203-200407

main74110-06040iACV3#..(20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC;ACV31,MCV30..(20E,20G,30G,30V)..(IDN,TAIW,VN)..4FC200203-200407

main74110-33160iACV30..5F200205-200407

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-06010iMCV30..5FC;ACV31..TAIW;ACV30..LHD..(24G,24V)200404-200611

WOOD GRAIN

main74130-06020-A0iACV31..TH200405-200608

IVORY,TRIM0#

main74130-06020-A0iACV31..RHD200203-200407

IVORY,TRIM4#

main74130-06030iACV3#,MCV30..(20G,24V,30V)..(PHL,VN)200203-200407

WOOD GRAIN

main74130-06050iACV3#,MCV30..(20G,24V,30V)..(PHL,VN)200203-200404

WOOD GRAIN

main74130-06060-A0iACV31..20J200203-200309

IVORY,TRIM4#

main74130-06060-A0iACV30..24E200407-200608

IVORY,TRIM0#

main74130-06060-B0iACV31..20J200203-200404

STONE,TRIM1#

main74130-06070iACV3#,MCV30..RHD200405-200608

WOOD GRAIN

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-06020-A0iACV31..RHD200203-200407

IVORY,TRIM4#

main74140-06020-A0iACV31..TH200405-200608

IVORY,TRIM0#

main74140-06030iMCV30..IDN;ACV30..IDN..5F;ACV30..RHD..4FC200203-200407

WOOD GRAIN

main74140-06040iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

WOOD GRAIN

main74140-06050-A0iACV3#..(20E,24G)..(PHL,VN)200203-200309

IVORY,TRIM4#

main74140-06050-A0iACV30..24E200407-200608

IVORY,TRIM0#

main74140-06050-B0iACV31..20J200203-200404

STONE,TRIM1#

main74140-06060iMCV30..5FC;ACV31..TAIW;ACV30..LHD..(24G,24V)200404-200611

WOOD GRAIN

main74140-06070iACV3#,MCV30..RHD200405-200608

WOOD GRAIN

8401

9054102001

main90541-02001

5 parts on this diagram · 1 diagram in section
