Toyota CAMRY — ARMREST & VISOR

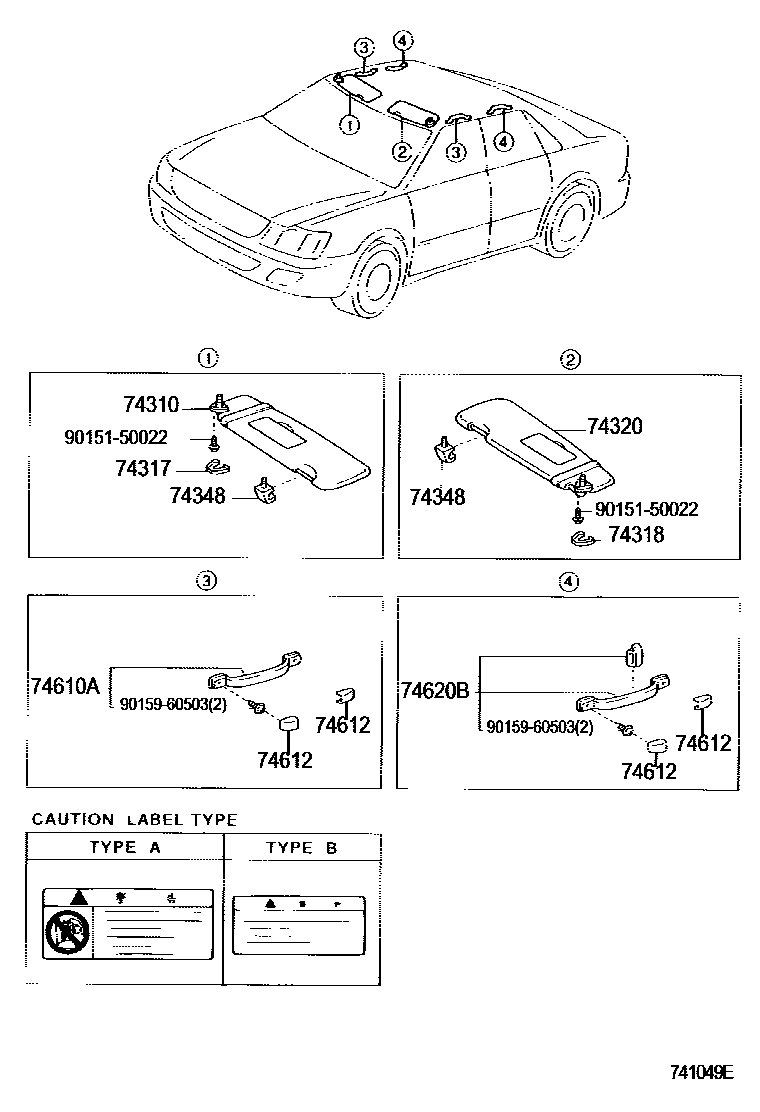

Parts diagram
74310VISOR ASSY, RH
main74310-06130-A0i200203-200309
IVORY,TRIM4#
main74310-06130-B1i200203-200404
LT.GRAY,TRIM1#
main74310-06140-A0i200203-200404
IVORY,TRIM4#
main74310-06140-B1i200203-200404
LT.GRAY,TRIM1#
main74310-06150-A0i200203-200404
W(LABEL, AIR BAG CAUTION) = REFER TO ILLUSTRATION-TYPE A,IVORY,TRIM4#
main74310-06150-B1i200203-200404
W(LABEL, AIR BAG CAUTION) = REFER TO ILLUSTRATION-TYPE A,LT.GRAY,TRIM1#
main74310-06160-A0i200206-200407
IVORY,TRIM4#
main74310-06170-A0i200407-200611
IVORY,TRIM0#
main74310-06180-A0i200405-200608
IVORY,TRIM0#
main74310-06190-A0i200203-200405
IVORY,TRIM4#
main74310-06240-A0i200206-200407
IVORY,TRIM4#
main74310-06250-A0i200405-200608
INDONESIA OR SINGAPORE SPEC,IVORY,TRIM0#; IVORY,TRIM0#; SINGAPORE SPEC,IVORY,TRIM0#
74317COVER, VISOR BRACKET, RH
main74317-06020-A0i200203-200404
IVORY,TRIM4#
main74317-06020-B0i200404-200605
LT.GRAY,TRIM2#
main74317-30010-A1i200203-200407
IVORY,TRIM4#
74318COVER, VISOR BRACKET, LH
main74317-06020-A0i200203-200309
IVORY,TRIM4#
main74317-06020-B0i200404-200605
LT.GRAY,TRIM2#
main74317-30010-A1i200203-200407
IVORY,TRIM4#
74320VISOR ASSY, LH
main74320-06090-A0i200203-200404
IVORY,TRIM4#
main74320-06090-B1i200404
LT.GRAY,TRIM2#
main74320-06100-A0i200203-200402
W(LABEL, AIR BAG CAUTION) = REFER TO ILLUSTRATION-TYPE B,IVORY,TRIM4#
main74320-06100-B1i200203-200404
W(LABEL, AIR BAG CAUTION) = REFER TO ILLUSTRATION-TYPE B,LT.GRAY,TRIM1#
main74320-06110-A0i200404-200605
W(LABEL, AIR BAG CAUTION) = REFER TO ILLUSTRATION-TYPE A,IVORY,TRIM0#
main74320-06110-B1i200404-200605
W(LABEL, AIR BAG CAUTION) = REFER TO ILLUSTRATION-TYPE A,LT.GRAY,TRIM2#
main74320-06120-A0i200407-200611
IVORY,TRIM0#
main74320-06130-A0i200206-200407
IVORY,TRIM4#
main74320-06140-A0i200405-200608
IVORY,TRIM0#; SINGAPORE SPEC,IVORY,TRIM0#
main74320-06150-A0i200203-200407
IVORY,TRIM4#
main74320-06200-A0i200402-200404
W(LABEL, AIR BAG CAUTION) = REFER TO ILLUSTRATION-TYPE B & W(MOON ROOF),IVORY,TRIM4#
main74320-06200-B0i200402-200404
W(LABEL, AIR BAG CAUTION) = REFER TO ILLUSTRATION-TYPE B & W(MOON ROOF),LT.GRAY,TRIM1#
main74320-06250-A0i200402-200404
W(LABEL, AIR BAG CAUTION) = REFER TO ILLUSTRATION-TYPE A & W(MOON ROOF),IVORY,TRIM4#
main74320-06250-B0i200402-200404
W(LABEL, AIR BAG CAUTION) = REFER TO ILLUSTRATION-TYPE A & W(MOON ROOF),LT.GRAY,TRIM1#
main74320-06260-A0i200404-200605
W(MOON ROOF),IVORY,TRIM0#
main74320-06260-B0i200404-200605
W(MOON ROOF),LT.GRAY,TRIM2#
74348HOLDER, VISOR
main74348-06030-A0×2i200404-200605
IVORY,TRIM0#
main74348-06030-B0×2i200203-200404
LT.GRAY,TRIM1#
main74348-0D040-A0×2i200406-200608
IVORY,TRIM0#; IVORY,TRIM0#,(L)
main74348-12040-A0×2i200203-200407
IVORY,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
main74610-06020-A0i200203-200309
IVORY,TRIM4#
main74610-06020-B0i200203-200404
LT.GRAY,TRIM1#
74612COVER, ASSIST GRIP
main74612-06010-A2×6i200203-200407
IVORY,TRIM4#
main74612-06010-B2×6i200203-200404
LT.GRAY,TRIM1#
74620BGRIP ASSY, ASSIST, REAR
main74610-06010-A0×2i200203-200309
IVORY,TRIM4#
main74610-06010-B0×2i200203-200404
LT.GRAY,TRIM1#
9015150022
main90151-50022
9015960503
main90159-60503

10 parts on this diagram · 3 diagrams in section

ARMREST & VISOR for Toyota CAMRY

This section contains 20 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CAMRY. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, COVER, FRONT DOOR ARMREST BASE, LOWER RH, COVER, FRONT DOOR ARMREST BASE, LOWER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH.
