Toyota CAMRY — ARMREST & VISOR

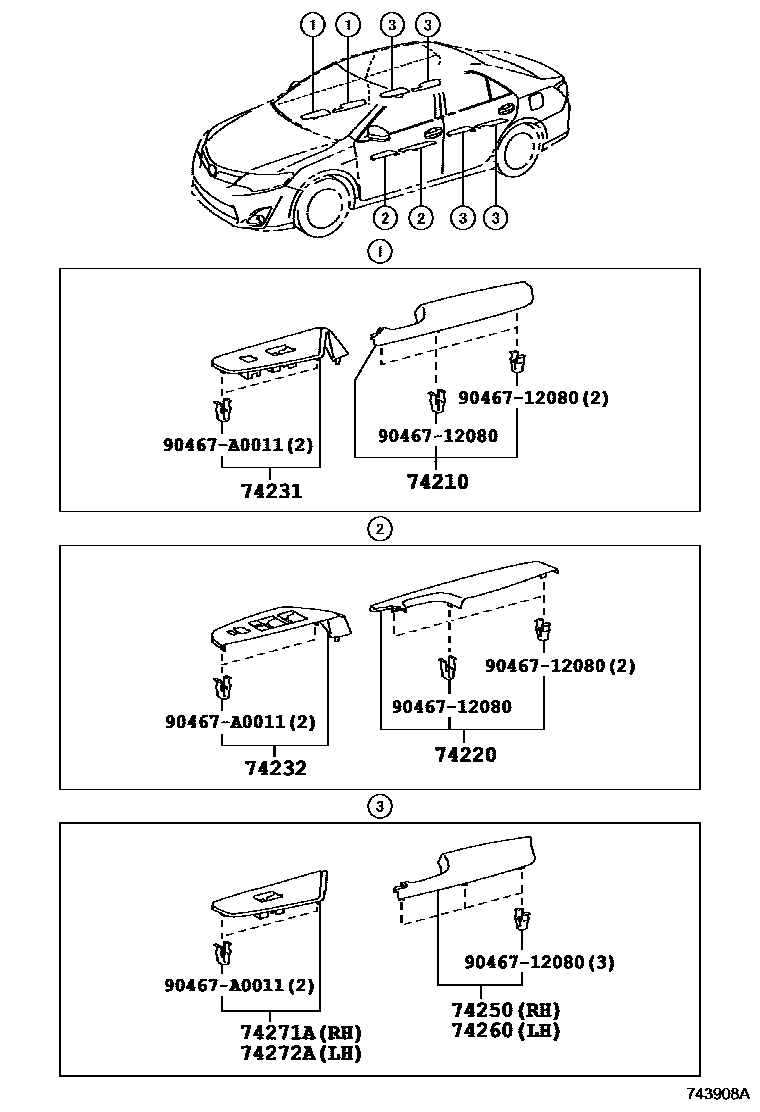

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-06200-B0i201504-201706
GRAY,TRIM15
main74210-06200-C0i201504-201706
BLACK,TRIM15,2#
main74210-06210-B1i201504-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main74210-06210-C1i201504-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-06200-B0i201504-201706
GRAY,TRIM15
main74220-06200-C0i201504-201706
BLACK,TRIM15,2#
main74220-06210-B1i201504-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main74220-06210-C1i201504-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-06630i201504
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-06660i201504-201706
74250ARMREST ASSY, REAR RH
main74250-06170-B0i201504-201706
GRAY,TRIM15
main74250-06170-C0i201504-201706
BLACK,TRIM15,2#
main74250-06180-B1i201504-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main74250-06180-C1i201504-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
main74260-06170-B0i201504-201706
GRAY,TRIM15
main74260-06170-C0i201504-201706
BLACK,TRIM15,2#
main74260-06180-B1i201504-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main74260-06180-C1i201504-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-06480i201504
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-06480i201504
9046712080
main90467-12080
90467A0011
main90467-A0011

10 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota CAMRY

This section contains 20 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CAMRY. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, ARMREST ASSY, REAR RH.
