EPC Data

Toyota CAMRY — ARMREST & VISOR

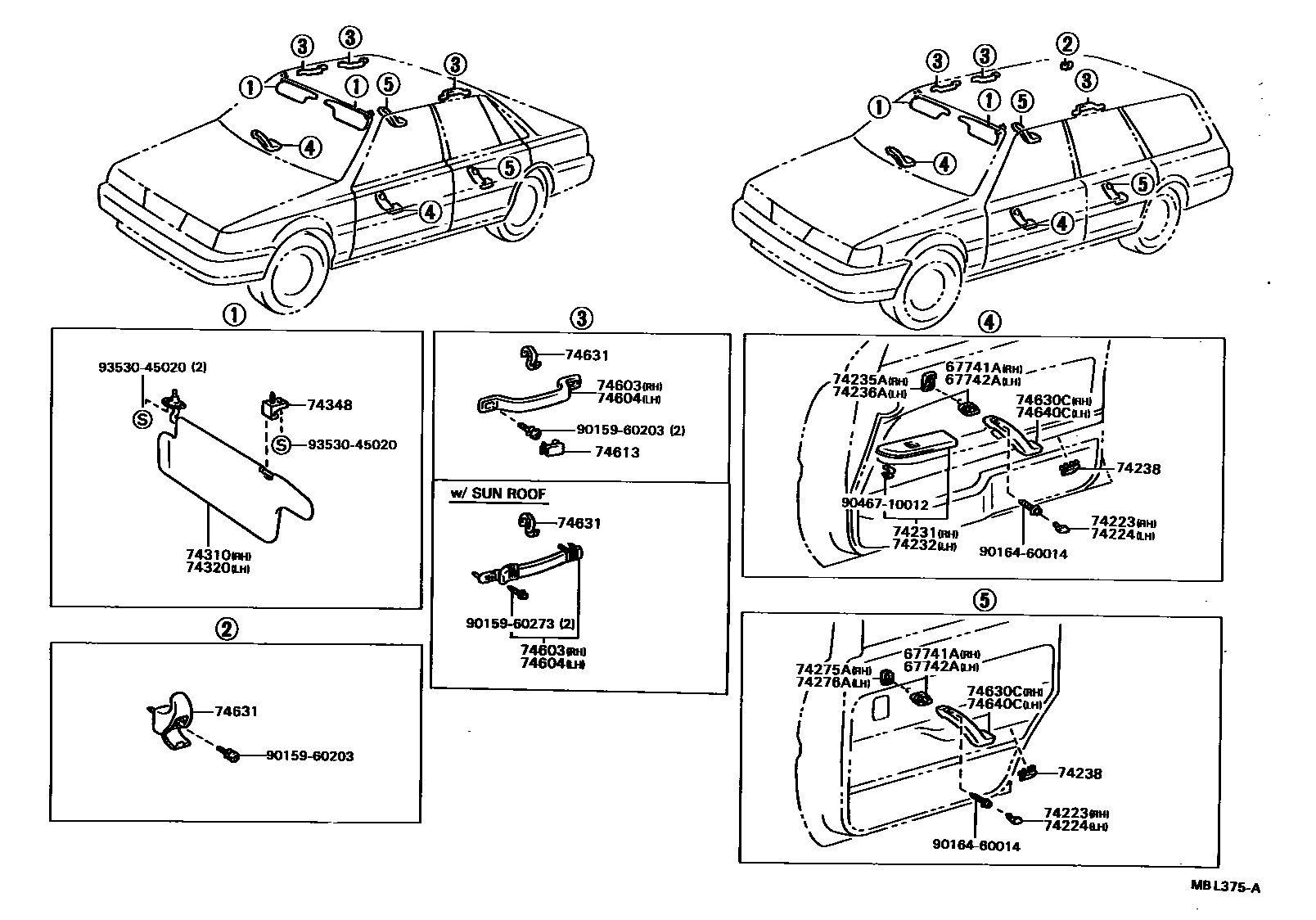

Parts diagram
67741AMOULDING, FRONT DOOR TRIM, RH
main67741-32050×2i198808-198904
67742AMOULDING, FRONT DOOR TRIM, LH
main67742-32020×2i198710-198808
74223CAP, DOOR ARMREST, RH
main74223-32020-03×2i198710-198904
MEDIUM GRAY,TRIM1#
main74223-32020-04×2i198611-198710
BLUE,DARK BLUE
main74223-32020-05×2i198611-198710
BEIGE,DARK BEIGE
74224CAP, DOOR ARMREST, LH
main74224-32010-03×2i198710-198904
MEDIUM GRAY,TRIM1#
main74224-32010-04×2i198808-198904
DARK BLUE,DARK BLUE,TRIM8#
main74224-32010-05×2i198710-198808
DARK BEIGE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-32050-03i198710-198808
MEDIUM GRAY,TRIM1#
main74231-32050-04i198710-198808
DARK BLUE,TRIM8#
main74231-32050-05i198710-198808
DARK BEIGE,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-32050-03i198611-198710
GRAY,MEDIUM GRAY
main74232-32050-04i198710-198808
DARK BLUE,TRIM8#
main74232-32050-05i198710-198808
DARK BEIGE,TRIM4#
74235APLATE, FRONT DOOR ARMREST BASE FINISH, RH
main74235-32010i198710-198808
74236APLATE, FRONT DOOR ARMREST BASE FINISH, LH
main74236-32010i198808-198904
74238CAP, DOOR ARMREST BASE
main74237-32010-03×4i198611-198710
GRAY,MEDIUM GRAY
main74237-32010-04×4i198611-198710
BLUE,DARK BLUE
main74237-32010-05×4i198611-198710
BEIGE,DARK BEIGE
74275APLATE, REAR DOOR ARMREST BASE FINISH,RH
main74275-32010i198611-198710
74276APLATE, REAR DOOR ARMREST BASE FINISH,LH
main74276-32010i198808-198904
74310VISOR ASSY, RH
main74310-32330-03i198611-198710
GRAY,LIGHT GRAY
main74310-32330-05i198611-198710
BEIGE,LIGHT BEIGE
main74310-32340-03i198808-198904
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74310-32340-05i198710-198808
LIGHT BEIGE,TRIM4#
74320VISOR ASSY, LH
main74320-32310-03i198611-198710
GRAY,LIGHT GRAY
main74320-32310-05i198710-198808
LIGHT BEIGE,TRIM4#
74348HOLDER, VISOR
main74348-32020-03×2i198611-198710
GRAY,LIGHT GRAY
main74348-32020-04×2i198710-198808
LIGHT BLUE,TRIM8#
main74348-32020-05×2i198710-198808
LIGHT BEIGE,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-32020-03i198611-198710
GRAY,LIGHT GRAY
main74610-32020-05i198710-198808
LIGHT BEIGE,TRIM4#
main74610-32030-04i198802-198808
LIGHT BLUE,TRIM8#
main74610-32030-05i198802-198808
W(MOON ROOF),LIGHT BEIGE,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-32020-03×2i198710-198808
LIGHT GRAY,TRIM1#,8#
main74610-32020-05×2i198710-198808
LIGHT BEIGE,TRIM4#
main74610-32030-04×2i198802-198808
LIGHT BLUE,TRIM8#
main74610-32030-05×2i198802-198808
W(MOON ROOF),LIGHT BEIGE,TRIM4#
74613PLUG, ASSIST GRIP
main74617-16010-23×6i198611-198710
GRAY,GRAY
main74617-16010-24×6i198808-198904
DEEP BLUE,DEEP BLUE,TRIM8#
main74617-16010-26×6i198611-198710
BEIGE,BROWN
main74617-16010-55×6i198808-198904
DARK BEIGE,DARK BEIGE,TRIM4#
74630CGRIP ASSY, DOOR ASSIST, RH
main74630-32010-03×2i198710-198904
MEDIUM GRAY,TRIM1#
main74630-32010-04×2i198611-198710
BLUE,DARK BLUE
main74630-32010-05×2i198611-198710
BEIGE,DARK BEIGE
74631HOOK, COAT, A
main74631-32010-03×2i198710-198904
LIGHT GRAY,TRIM1#,TYPE A
main74631-32010-04×2i198710-198808
LIGHT BLUE,TRIM8#,TYPE A
main74631-32010-05×2i198710-198808
LIGHT BEIGE,TRIM4#,TYPE A
main74631-32020-03i198710-198904
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,TYPE B
main74631-32020-04i198808-198904
LIGHT BLUE,LIGHT BLUE,TRIM8#
main74631-32020-05i198710-198808
LIGHT BEIGE,TRIM4#; LIGHT BEIGE,TRIM4#,TYPE B
74640CGRIP ASSY, DOOR ASSIST, LH
main74640-32010-03×2i198710-198904
MEDIUM GRAY,TRIM1#
main74640-32010-04×2i198808-198904
DARK BLUE,DARK BLUE,TRIM8#
main74640-32010-05×2i198710-198808
DARK BEIGE,TRIM4#
9015960203
main90159-60203
9015960273
main90159-60273
9016460014
main90164-60014
9046710012
main90467-10012
9353045020
main93530-45020

25 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CAMRY

This section contains 25 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CAMRY. Key components include: MOULDING, FRONT DOOR TRIM, RH, MOULDING, FRONT DOOR TRIM, LH, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH, PANEL, FRONT ARMREST BASE, UPPER RH.
