Toyota CAMRY — ARMREST & VISOR

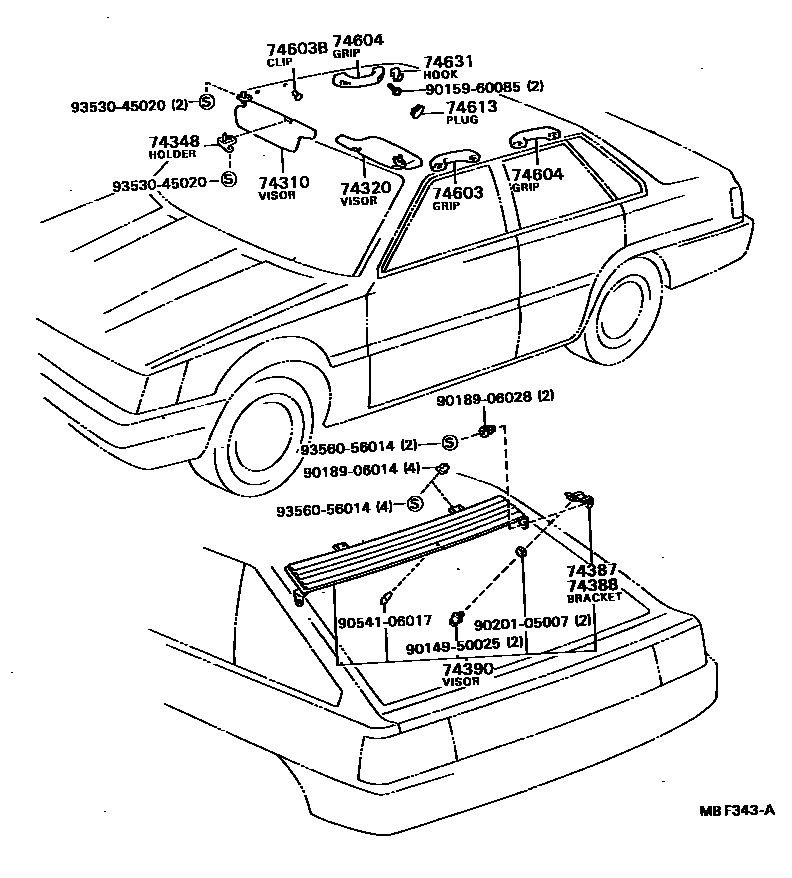

Parts diagram
74310VISOR ASSY, RH
main74310-32040-03i198309-198406
SWEDEN SPEC,W/O SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74310-32040-05i198309-198406
SWEDEN SPEC,W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-32070-03i198210-198406
W/O SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74310-32070-05i198210-198406
W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-32080-03i198309-198406
SWEDEN SPEC,W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74310-32080-05i198308-198406
SWEDEN SPEC,W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-32090-03i198210-198406
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74310-32090-05i198210-198406
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-32120-03i198303-198406
GRAY,GRAY,TRIM1#,8#
main74310-32120-05i198303-198406
BEIGE,BEIGE,TRIM4#
main74310-32160-03i198406-198508
SWEDEN,W/O SUNROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#; W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#
main74310-32160-05i198408-198508
SWEDEN,W/O SUN ROOF,BEIGE,BEIGE,TRIM4#; W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-32170-03i198406-198508
W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#
main74310-32170-05i198408-198508
W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-32180-03i198406-198508
SWEDEN,W/SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#; W/SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#
main74310-32180-05i198508-198610
BEIGE,BEIGE,TRIM4#; SWEDEN SPEC,BEIGE,BEIGE,TRIM4#; W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-32190-03i198508-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#,8#; W/SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#
main74310-32190-05i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-32210-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#,8#
main74310-32210-05i198408-198610
BEIGE,BEIGE,TRIM4#
74320VISOR ASSY, LH
main74320-32030-03i198210-198406
W/O SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74320-32030-05i198210-198406
W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-32040-03i198210-198406
W/O SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74320-32040-05i198210-198406
W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-32050-03i198210-198406
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74320-32050-05i198210-198406
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-32060-03i198210-198406
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74320-32060-05i198210-198406
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-32090-03i198303-198406
GRAY,GRAY,TRIM1#,8#
main74320-32090-05i198303-198406
BEIGE,BEIGE,TRIM4#
main74320-32120-03i198508-198610
W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#
main74320-32120-05i198408-198508
W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-32130-03i198508-198610
W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#
main74320-32130-05i198508-198610
W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-32140-03i198508-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#,8#; W/SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#
main74320-32140-05i198508-198610
BEIGE,BEIGE,TRIM4#; W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-32150-03i198508-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#,8#; W/SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#
main74320-32150-05i198508-198610
BEIGE,BEIGE,TRIM4#; W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-32170-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#,8#
main74320-32170-05i198408-198610
BEIGE,BEIGE,TRIM4#
74348HOLDER, VISOR
main74348-32010-03×2i198210-198610
GRAY,LIGHT GRAY,TRIM1#,8#
main74348-32010-05×2i198210-198610
BEIGE,BEIGE,TRIM4#
74387BRACKET, REAR VISOR, NO.1
main74387-32020i198303-198610
74388BRACKET, REAR VISOR, NO.2
main74388-32020i198303-198610
74390VISOR ASSY, REAR, INNER
main74390-32020i198303-198610
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-20030-06i198210-198406
DARK BROWN,BROWN,TRIM4#
main74610-20030-15i198408-198610
BEIGE,BEIGE,TRIM4#
main74610-20030-23i198210-198406
DARK GRAY,GRAY,TRIM1#
main74610-20030-24i198210-198610
BLUE,BLUE,TRIM8#
main74610-20030-33i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main74610-32010-03i198210-198406
*IPM,GRAY,GRAY,TRIM1#
main74610-32010-04i198210-198610
*IPM,BLUE,BLUE,TRIM8#
main74610-32010-06i198210-198406
*IPM,DARK BROWN,BROWN,TRIM4#
main74610-32010-15i198408-198610
*IPM,BEIGE,BEIGE,TRIM4#
main74610-32010-23i198406-198610
*IPM,SHADOW GRAY,SHADOW GRAY,TRIM1#
74603BCLIP (FOR ASSIST GRIP)
main90467-06029-03×2i198210-198610
GRAY,GRAY,TRIM1#,8#
main90467-06029-05×2i198210-198610
BEIGE,BEIGE,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-20030-06×2i198210-198406
DARK BROWN,BROWN,TRIM4#
main74610-20030-15×2i198408-198610
BEIGE,BEIGE,TRIM4#
main74610-20030-23×2i198210-198406
DARK GRAY,GRAY,TRIM1#
main74610-20030-24×2i198210-198610
BLUE,BLUE,TRIM8#
main74610-20030-33×2i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main74610-32010-03×2i198210-198406
*IPM,DARK GRAY,GRAY,TRIM1#
main74610-32010-04×2i198210-198610
*IPM,BLUE,BLUE,TRIM8#
main74610-32010-06×2i198210-198406
*IPM,DARK BROWN,BROWN,TRIM4#
main74610-32010-15×2i198408-198610
*IPM,BEIGE,BEIGE,TRIM4#
main74610-32010-23×2i198406-198610
*IPM,SHADOW GRAY,SHADOW GRAY,TRIM1#
74613PLUG, ASSIST GRIP
main74617-14010-15×6i198408-198610
BEIGE,BEIGE,TRIM4#
main74617-14010-16×6i198210-198406
DARK BROWN,BROWN,TRIM4#
main74617-14010-23×6i198210-198406
DARK GRAY,GRAY,TRIM1#
main74617-14010-24×6i198210-198610
BLUE,BLUE,TRIM8#
main74617-14010-43×6i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main74617-16010-03×6i198210-198406
*IPM,DARK GRAY,GRAY,TRIM1#
main74617-16010-04×6i198210-198610
*IPM,BLUE,BLUE,TRIM8#
main74617-16010-06×6i198210-198406
*IPM,DARK BROWN,BROWN,TRIM4#
main74617-16010-25×6i198408-198610
*IPM,BEIGE,BEIGE,TRIM4#
main74617-16010-33×6i198406-198610
*IPM,SHADOW GRAY,SHADOW GRAY,TRIM1#
74631HOOK, COAT, A
main74631-14010-16×2i198210-198406
DARK BROWN,BROWN,TRIM4#
main74631-14010-24×2i198210-198610
BLUE,BLUE,TRIM8#
main74631-14010-25×2i198408-198610
BEIGE,BEIGE,TRIM4#
main74631-14010-33×2i198210-198406
GRAY,GRAY,TRIM1#
main74631-14010-43×2i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
9014950025
main90149-50025
9015960085
main90159-60085
9018906014
main90189-06014
9018906028
main90189-06028
9020105007
main90201-05007
9054106017
main90541-06017
9353045020
main93530-45020
9356056014
main93560-56014

19 parts on this diagram · 3 diagrams in section

ARMREST & VISOR for Toyota CAMRY

This section contains 42 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CAMRY. Key components include: PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH, PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH, ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH.
