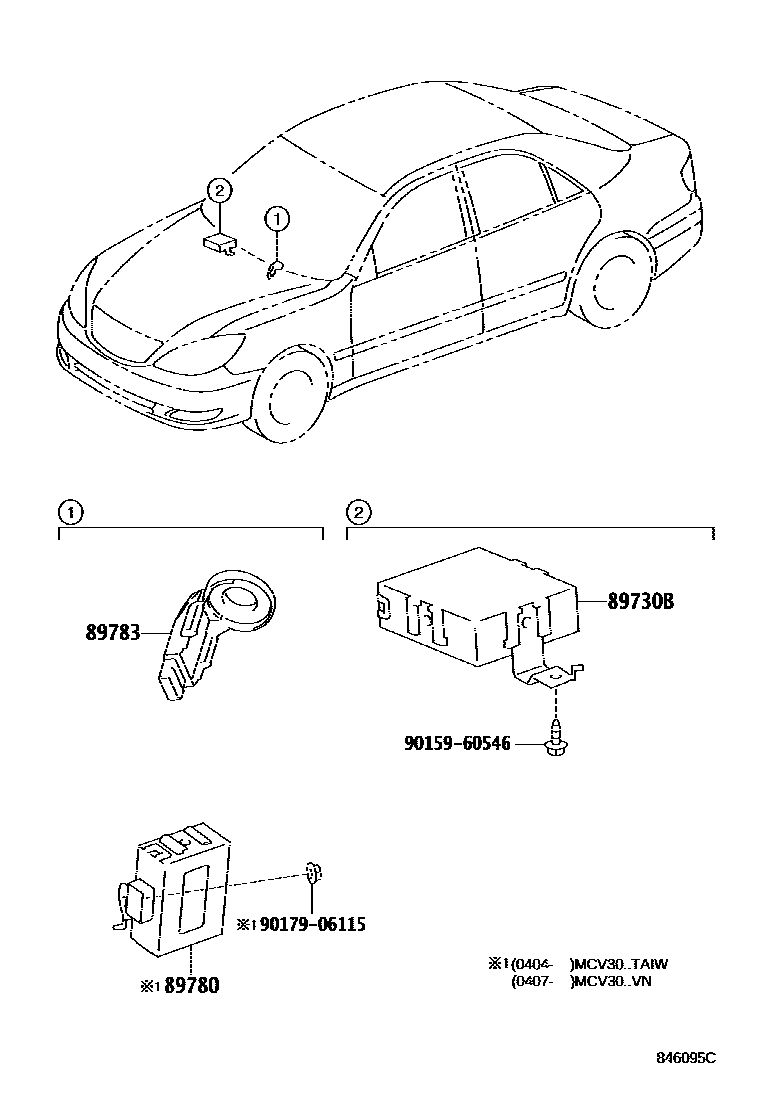

Toyota CAMRY — ANTI-THEFT DEVICE

0001 1 0002 1

89730BCOMPUTER ASSY, THEFT WARNING

main89730-06060iMCV30..(TAIW,VN)..5FC;ACV3#..(20G,24G)..(TAIW,VN)200404-200602

PART NUMBER LABEL=89730-06060

sub89730-06061

main89730-06061iACV3#,MCV30..(20G,24G,30G,30V)..(TAIW,VN)200603-200611

PART NUMBER LABEL=89730-06061

main89730-06070iACV31..TAIW;ACV30,MCV30..PHL200404-200602

PART NUMBER LABEL=89730-06070

sub89730-06071

main89730-06071iMCV30..PHL;ACV3#..LHD..4FC200603-200608

PART NUMBER LABEL=89730-06071

main89730-06080iACV3#,MCV30..TH200405-200602

PART NUMBER LABEL=89730-06080

sub89730-06081

main89730-06081iACV3#,MCV30..TH200603-200608

PART NUMBER LABEL=89730-06081

main89730-06090iACV31..TH200405-200602

PART NUMBER LABEL=89730-06090

sub89730-06091

main89730-06091iACV31..TH200603-200608

PART NUMBER LABEL=89730-06091

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-33120iMCV30..(TAIW,VN)..5FC200404

89783AMPLIFIER, TRANSPONDER KEY

main89783-33070iACV3#,MCV30..(20G,24G,24Q,30G,30V)..(IDN,TAIW,TH)..(4FC,5F)200203-200405

main89783-33100iMCV30..(TAIW,VN)..5FC200404

sub89783-26033

9015960546

main90159-60546

9017906115

main90179-06115

5 parts on this diagram · 2 diagrams in section
