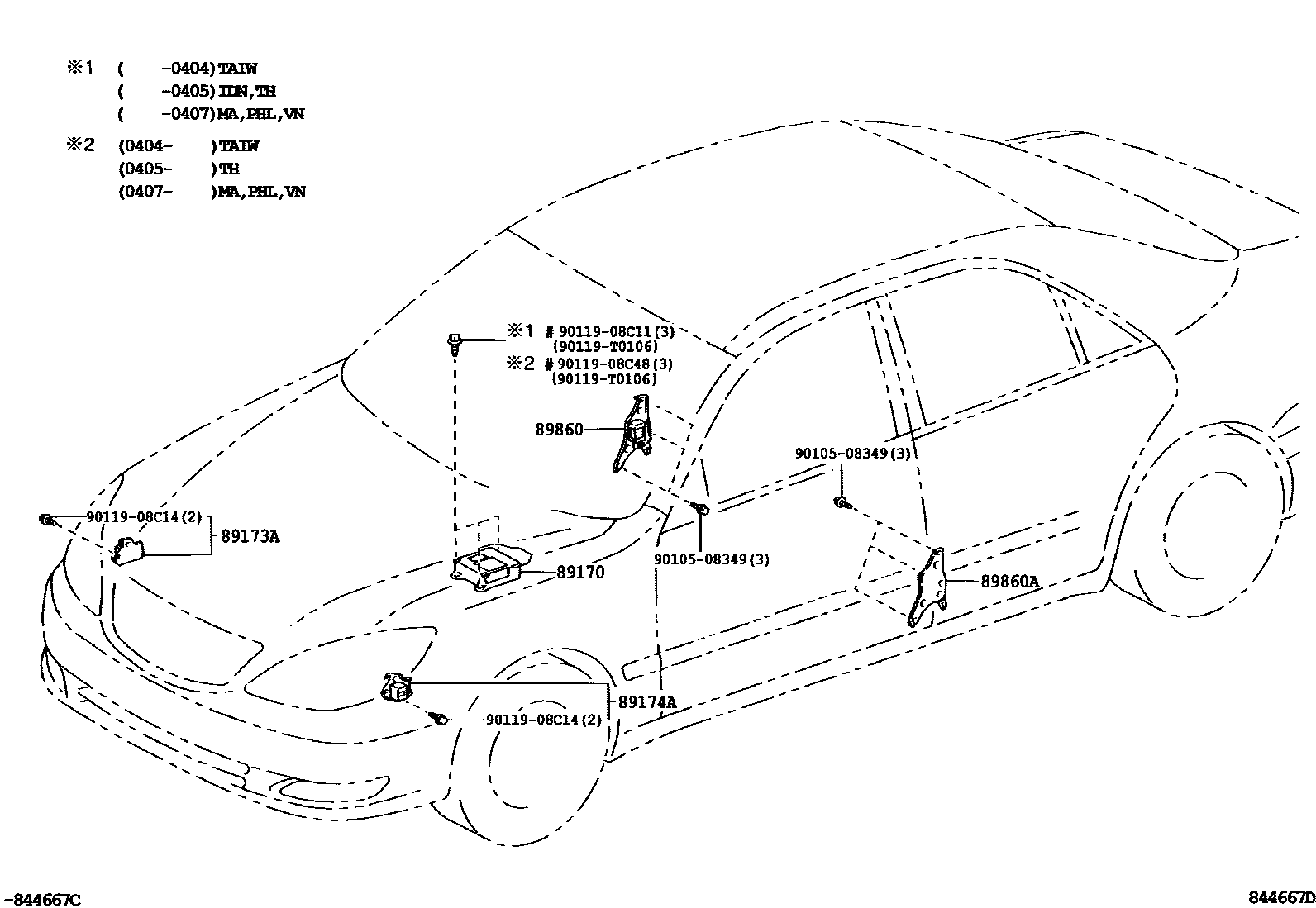

Toyota CAMRY — AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-33320iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV31,MCV30..(20G,30G)..TAIW..4FC;ACV3#..(20E,20G,24G,24V)..(IDN,MA,PHL,TH)..4FC200203-200407

PART NUMBER LABEL=89170-33320

main89170-33320iMCV30..VN;ACV3#..MA,PHL,VN200407

main89170-33330iACV31..20G..TAIW200203-200404

PART NUMBER LABEL=89170-33330

main89170-33390iACV30,MCV30..(24Q,30V)..(TAIW,TH)..4FC200203-200405

main89170-33390iACV3#..TH..4FC;MCV30..30V..TAIW200404

PART NUMBER LABEL=89170-33390

89173ASENSOR, AIRBAG, FRONT RH

main89173-39315iACV31,MCV30..(20G,30G,30V)..TAIW200203-200407

sub89173-39355

main89173-39355iACV31..20G..TAIW200404

89174ASENSOR, AIRBAG, FRONT LH

main89174-39185iACV31,MCV30..(20G,30G,30V)..TAIW200203-200407

sub89174-39215

main89174-39215iACV31..20G..TAIW200404

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-33060iACV30,MCV30..(24Q,30V)..(TAIW,TH)..4FC200203-200405

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-33060iACV30,MCV30..(24Q,30V)..(TAIW,TH)..4FC200203-200405

9010508349

main90105-08349

9011908C11

main90119-08C11

9011908C14

main90119-08C14

9011908C48

main90119-08C48

90119T0106

main90119-T0106

10 parts on this diagram · 1 diagram in section
