Toyota CAMRY — WINDSHIELD WIPER

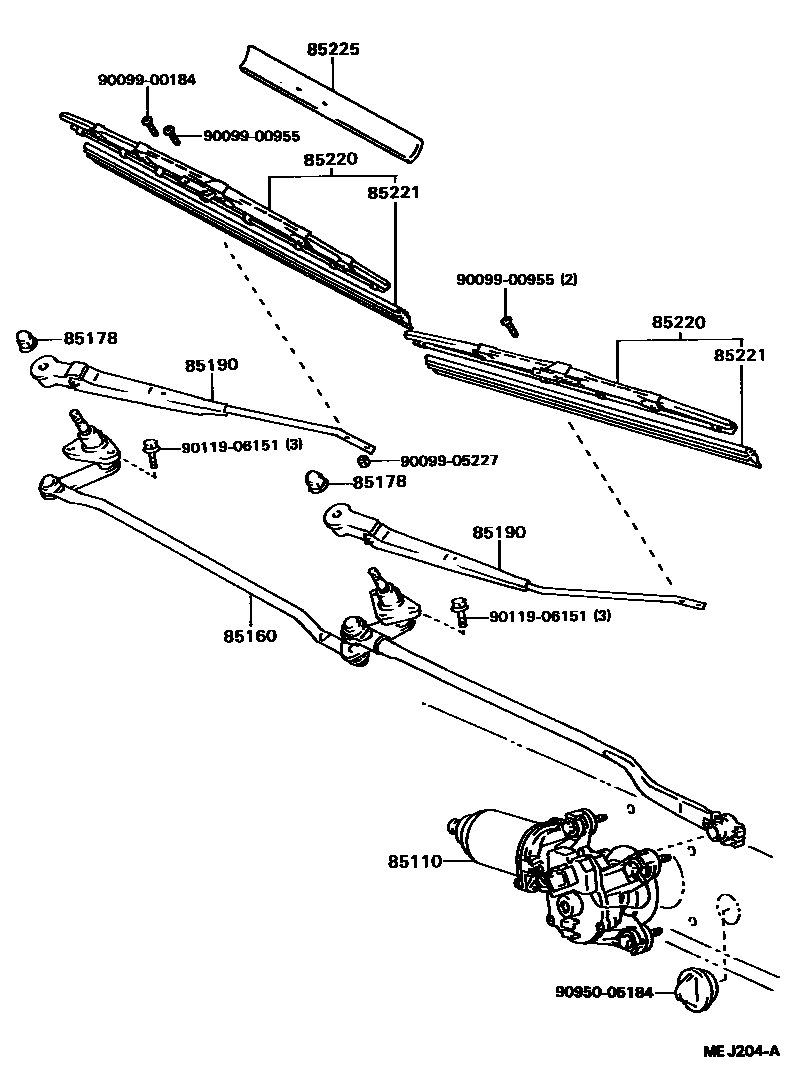

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-32200i198610-198710

main85110-32201i198803-198808

main85110-32240i198610-198710

main85110-32241i198803-198808

85160LINK ASSY, WINDSHIELD WIPER

main85160-32100i198610-198710

main85160-32140i198710-198808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2i198710-198807

85190ARM ASSY, WINDSHIELD WIPER

main85190-32250i198710-198801

RH

main85190-32251i198801-198808

RH

main85190-32290i198610-198710

LH

main85190-32291i198801-198808

LH

main85210-32170i198710-198801

LH

main85210-32190i198801-198808

LH

main85210-32210i198801-198808

RH

main85210-32220i198610-198710

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16230i198801-198808

LH

main85220-16320i198610-198710

LH

main85220-16340i198710-198808

RH

main85220-32630i198610-198710

RH

main85220-32640i198710-198808

LH

85221BLADE, WINDSHIELD WIPER

main85221-30100i198710-198808

RH

main85221-30120i198710-198801

LH

main85221-32070i198610-198710

LH; RH

85225WING, WIPER BLADE

main85225-32250i198610-198710

main85225-32290i198610-198710

9009900184

main90099-00184

9009900955

main90099-00955

9009905227

main90099-05227

9011906151

main90119-06151

9095005184

main90950-05184

12 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota CAMRY

This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CAMRY. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER.
