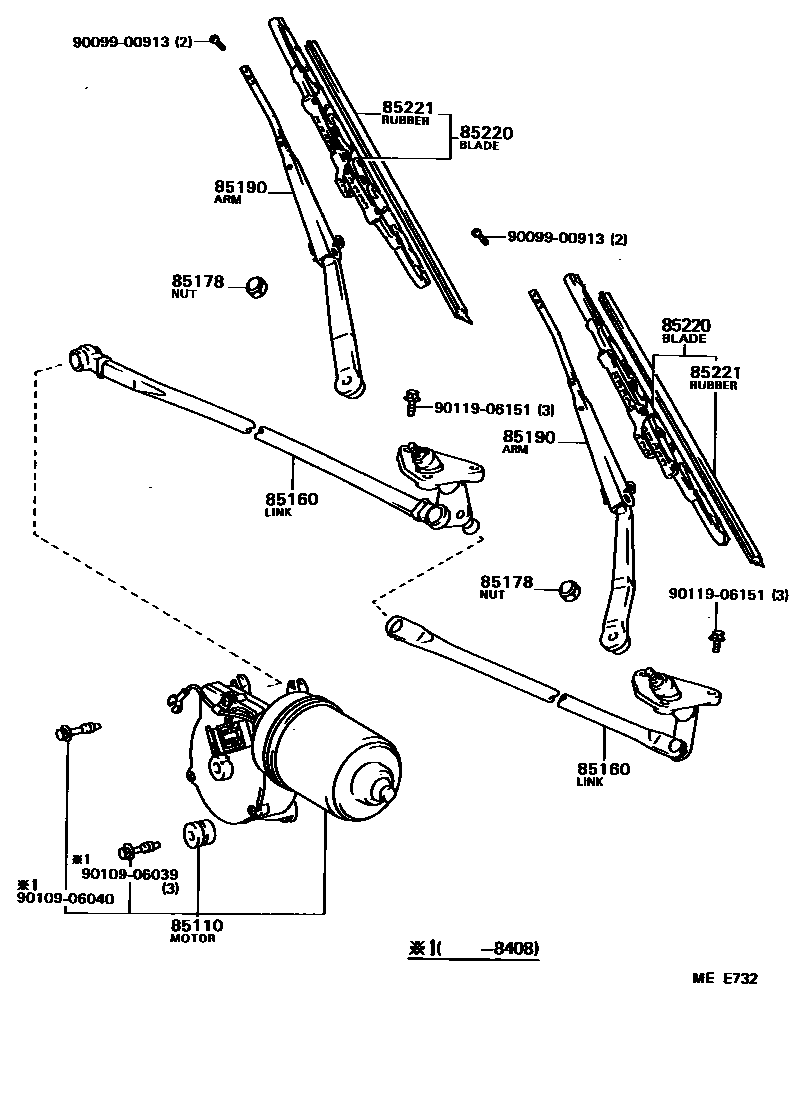

Toyota CAMRY — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-32040iCV10,SV11198301-198408

sub85110-32120

main85110-32120iCV1#,SV11198408-198607

85160LINK ASSY, WINDSHIELD WIPER

main85160-32030iCV1#,SV11198301-198607

LH

main85160-32060iCV1#,SV11198301-198607

RH

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iCV10,SV11198301-198508

main90176-08033iCV11,SV11198508-198607

85190ARM ASSY, WINDSHIELD WIPER

main85190-32070iCV10198308-198408

LH

main85190-32110iSV11198301-198408

LH

main85190-32180iCV1#,SV11198408-198607

LH

main85210-32070iCV10,SV11198301-198408

RH

main85210-32150iCV1#,SV11198408-198607

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-32280iCV1#,SV11198301-198607

LH

sub85220-3A060

main85220-32290iCV1#,SV11198301-198607

RH

85221BLADE, WINDSHIELD WIPER

main85221-32060iCV1#,SV11198301-198607

sub85221-30130

9009900913

main90099-00913

9010906039

main90109-06039

9010906040

main90109-06040

9011906151

main90119-06151

10 parts on this diagram · 1 diagram in section
