Toyota CAMRY — WINDSHIELD WASHER

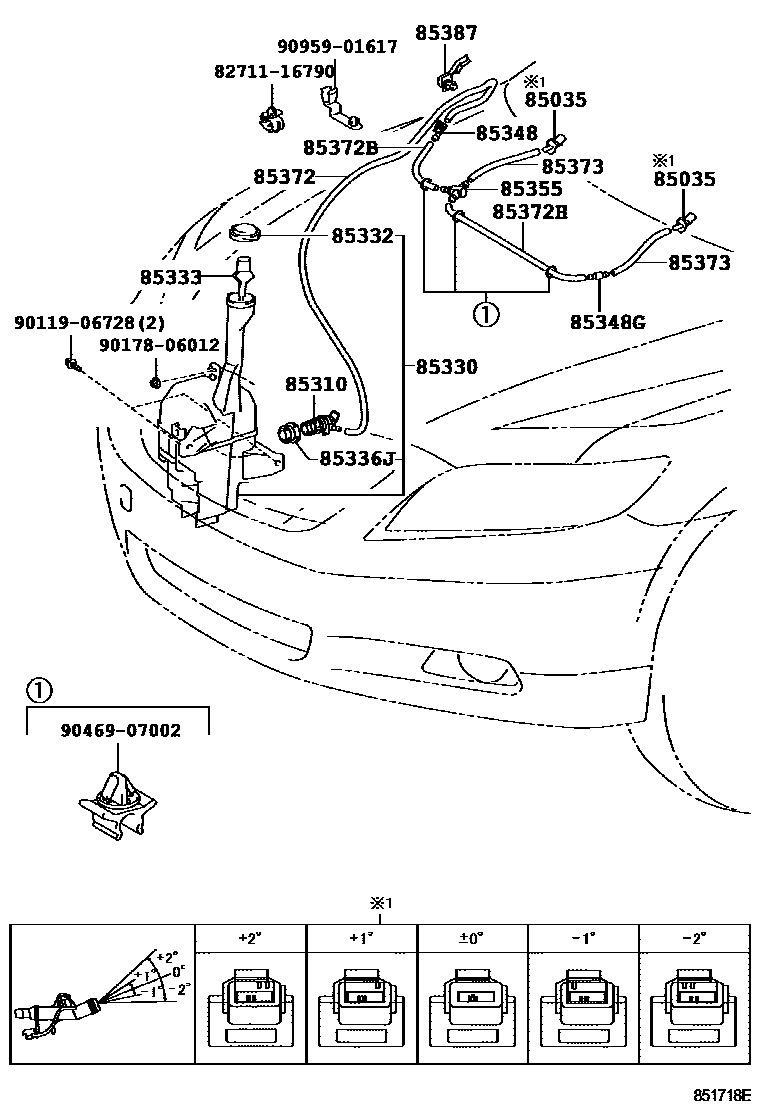

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-12330×2i200901-201109
ANGLE 0
main85381-12340×2i200708-200903
ANGLE -2
main85381-12350×2i200901-201109
ANGLE +2
main85381-30110×2i200601-200707
ANGLE 0
main85381-30130×2i200601-200708
ANGLE +1
main85381-30140×2i200601-200708
ANGLE -1
main85381-30150×2i200601-200707
ANGLE +2
main85381-30160×2i200601-200707
ANGLE -2
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-47010i201105-201109
main85330-60190i200901-201104
85330JAR ASSY, WINDSHIELD WASHER
main85315-33320i200601-200903
main85315-33360i200901-201108
main85355-33090i200712-200903
main85355-33120i200901-201109
85332CAP, WINDSHIELD WASHER JAR
main85316-33320i200601-200903
85333FILTER, WINDSHIELD WASHER JAR
main85312-21020i200601-200903
85336JPROTECTOR, WASHER JAR
main85336-60300i200901-201109
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-20800i200601-200903
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85375-10260i200601-200903
85355VALVE, WINDSHIELD WASHER HOSE
main85321-28020i200608-200903
main85321-30080i200601-200607
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33803i200901-201109
L=1530
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i200601-200903
L=1450(*H,L=410)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080i200601-200608
L=1450(*H,L=660)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080×2i200601-200607
L=1450(*H,L=240)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-33080i200601-200903
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9011906728
main90119-06728
9017806012
main90178-06012
9046907002
main90469-07002
9095901617
main90959-01617

19 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota CAMRY

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY. Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, CAP, WINDSHIELD WASHER JAR.
