Toyota CAMRY — WINDSHIELD WASHER

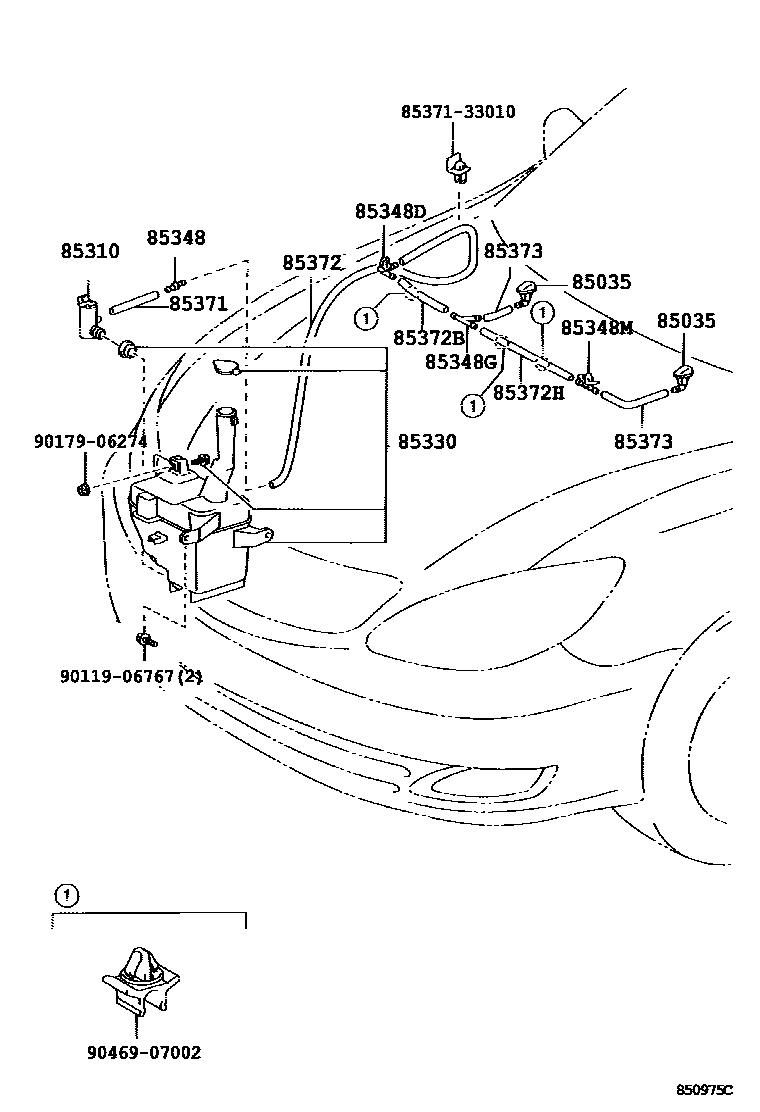

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-AA040×2i200108-200204
main85381-AA041×2i200204-200301
main85381-AA042×2i200301-200406
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-33020i200108-200406
W(HEADLAMP CLEANER)
85330JAR ASSY, WINDSHIELD WASHER
main85315-33260i200108-200406
main85315-33280×2i200108-200406
W(HEADLAMP CLEANER)
main85355-33080i200406-200601
W(HEADLAMP CLEANER)
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85334-22470i200108-200406
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85376-10250i200406-200601
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85348-14390i200108-200406
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85375-20800i200108-200406
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33075i200108-200406
L=1100(*H,L=100); L=1100(*H,L=100),W(HEADLAMP CLEANER)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33803i200108-200406
L=1730
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i200108-200406
L=1450(*H,L=350)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080i200108-200406
L=1450(*H,L=520)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90068-33024×2i200108-200406
L=170
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
9011906767
main90119-06767
9017906274
main90179-06274
9046907002
main90469-07002

16 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota CAMRY

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY. Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, MOTOR & PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
