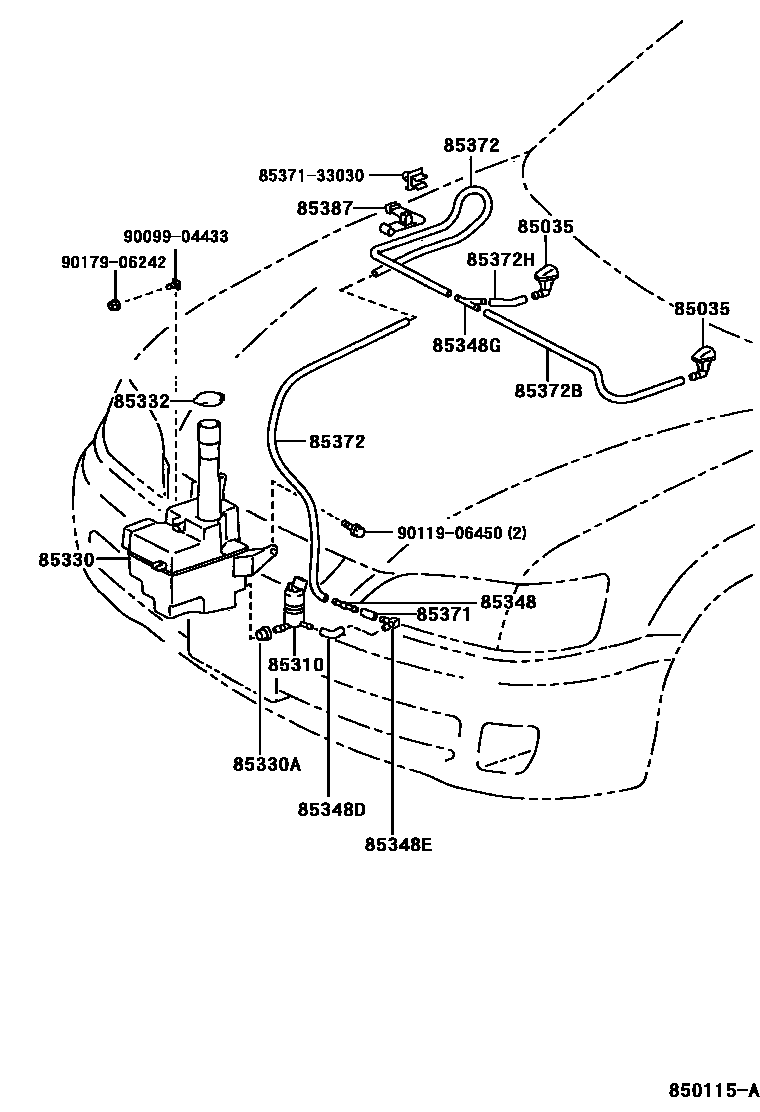

Toyota CAMRY — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2i199608

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33020i199608

85330JAR ASSY, WINDSHIELD WASHER

main85315-33050i199608

main85315-33060i199608

W(HEADLAMP CLEANER)

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199608

85332CAP, WINDSHIELD WASHER JAR

main85316-33050i199608

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470i199608

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-32110i199608

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85317-12410i199608

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390i199608

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33920i199608

L=1400

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i199608

L=1450(*H,L=750)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i199608

L=1450(*H,L=780)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i199608

L=1450(*H,L=200)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410i199608

8537133030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33030

9009904433

main90099-04433

9011906450

main90119-06450

9017906242

main90179-06242

18 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CAMRY

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
