Toyota CAMRY — WINDSHIELD WASHER

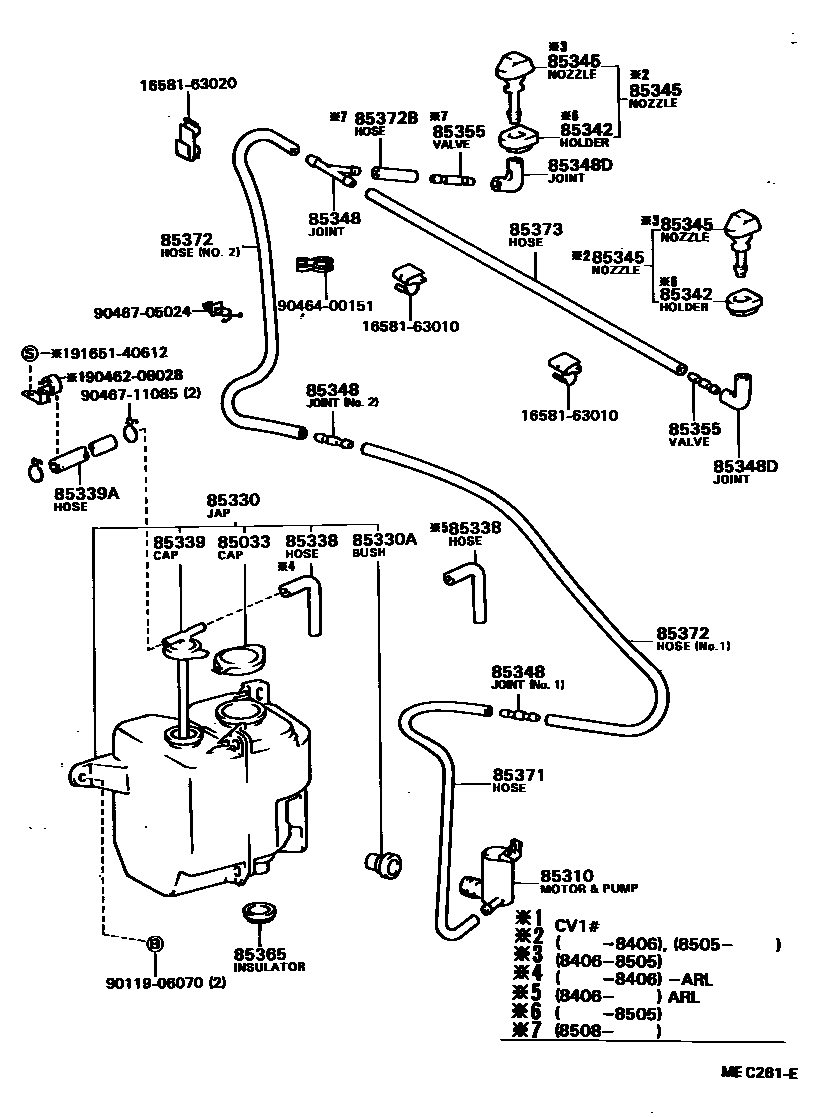

Parts diagram
85033CAP ASSY, WINDSHIELD WASHER
main85332-12320i198308-198406
main85332-16010i198210-198406
main85332-22040i198210-198406
W/HEDLAMP CLEANER
main85332-32090i198308-198406
W/HEADLAMP CLEANER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22080i198210-198610
85330JAR ASSY, WINDSHIELD WASHER
main85330-32010i198303-198406
main85330-32030i198210-198406
W/HEADLAMP CLEANER
main85330-32040i198308-198406
W/HEADLAMP CLEANER
main85330-32041i198406-198610
W/HEADLAMP CLEANER
main85331-32010i198210-198406
main85331-32100i198406-198610
main85331-32110i198406-198610
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198210-198610
85338HOSE, BREATHER
main85338-12010i198406-198506
main85338-14010i198506-198610
main85338-32010i198303-198406
85339CAP SUB-ASSY, RESERVE TANK
main85339-12010i198406-198610
main85339-32010i198303-198406
main85339-32020i198210-198610
85339AHOSE (FOR RADIATOR RESERVE TANK)
main90099-33376i198303-198406
main90099-33377i198406-198610
85342HOLDER, WASHER NOZZLE
main85342-14010×2i198210-198505
85345NOZZLE, WINDSHIELD WASHER
main85035-19025×2i198210-198406
main85035-32030×2i198406-198505
main85035-32031×2i198505-198610
main85035-32040×2i198406-198505
main85035-32041×2i198505-198610
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250i198508-198610
3-WAY
main85349-89122i198508-198610
2-WAY,NO.2
main85355-14010i198210-198508
3-WAY
main85355-87201×2i198210-198508
2-WAY,NO.1,NO.2
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-20070×2i198210-198610
85355VALVE, WINDSHIELD WASHER HOSE
main85031-12250×2i198508-198610
main85031-14080i198210-198508
85365INSULATOR, WINDSHIELD WASHER JAR
main85312-32010i198210-198610
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90446-06013i198210-198610
L=1000
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33299i198210-198610
L=1000,NO.2
main90446-07001i198508-198610
L=1800,NO.1
main90446-07005i198210-198508
L=1800(*H,L=1200),NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90446-07001i198508-198610
L=1800
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90446-06013i198210-198610
L=1000
1658163010CLAMP, HOSE(FOR WATER HOSE)
main16581-63010
1658163020CLAMP, HOSE(FOR WATER HOSE)
main16581-63020
9011906070
main90119-06070
9046208028
main90462-08028
9046400151
main90464-00151
9046705024
main90467-05024
9046711085
main90467-11085
9165140612
main91651-40612

25 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota CAMRY

This section contains 30 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY. Key components include: CAP ASSY, WINDSHIELD WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
