Toyota CAMRY — V-BELT

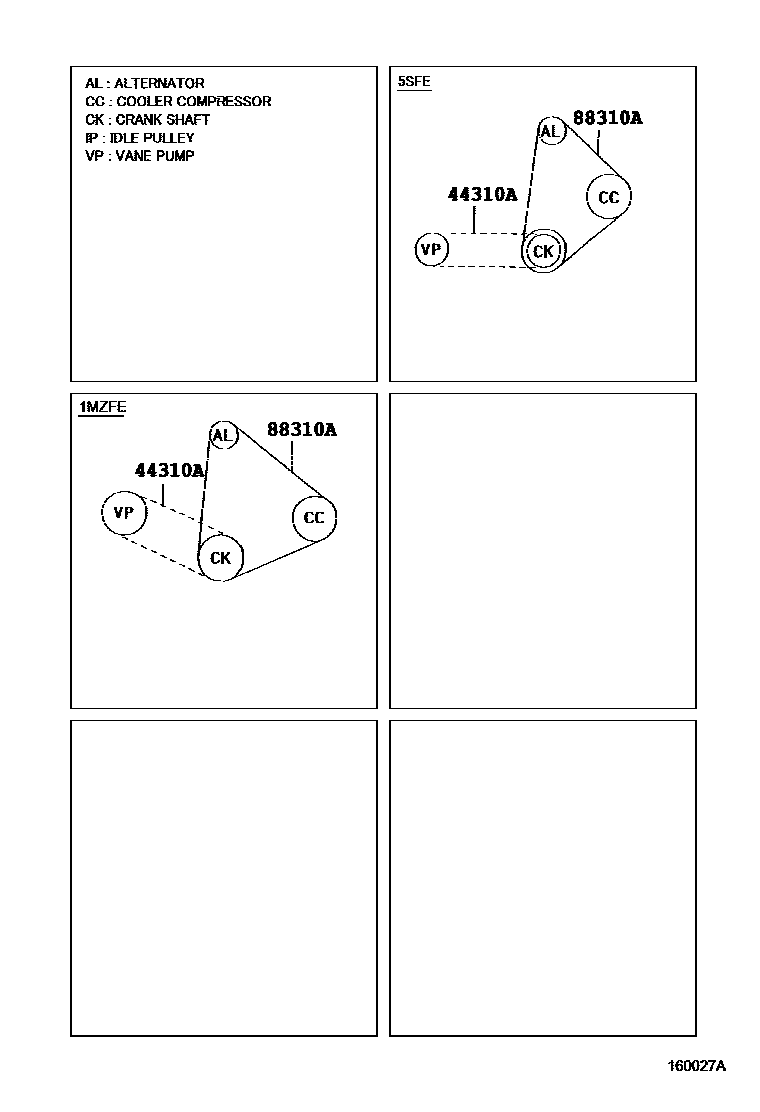

Parts diagram
44310ABELT, V(FOR VANE PUMP)
main90080-91088i199608
L=878
main99363-20750i199608-199801
L=750,MITSUBOSHI
main99363-30750i199801-199908
L=750,MITSUBOSHI
main99363-80750i199608-199801
L=750,BANDO
main99363-90750i199908
L=750
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main90080-91087i199608
L=1035,(L)
main90916-02401i199608
L=1035,(J)
main99365-21100i199608
L=1100

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota CAMRY

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota CAMRY. Key components include: BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
