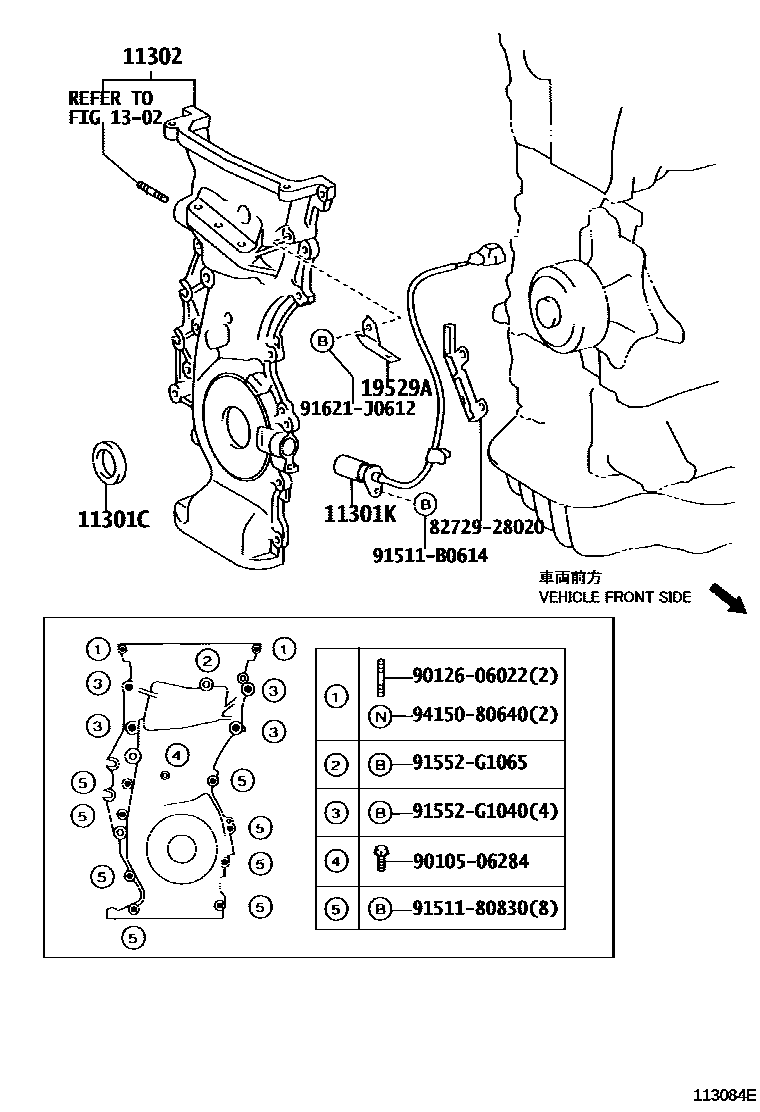

Toyota CAMRY — TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38078i1AZFE,2AZFE..ACV3#200108-200212

sub90311-38089

main90311-38084i1AZFE,2AZFE..ACV3#200212-200304

main90311-38089i1AZFE,2AZFE..ACV3#200304-200601

11301KSENSOR, CRANK POSITION

main90919-05047i1AZFE,2AZFE..ACV3#200108-200406

main90919-05047i1AZFE,2AZFE..ACV3#200406-200601

(J)

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-28070i1AZFE,2AZFE..ACV3#200108-200406

main11310-28070i1AZFE,2AZFE..ACV3#200406-200508

*107

main11310-28071i1AZFE,2AZFE..ACV3#200509-200601

*107

1302

19529ACLAMP

main19529-28010i1AZFE,2AZFE..ACV3#200108-200406

8272928020

main82729-28020

9010506284

main90105-06284

9012606022

main90126-06022

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91621J0612

main91621-J0612

9415080640

main94150-80640

14 parts on this diagram · 2 diagrams in section
