Toyota CAMRY — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1CONSOLE BOX 0012 1CONSOLE BOX 0013 1STEERING 0014 1SEAT 0015 1SEAT 0016 1DOOR 0017 1DOOR 0018 1FLOOR & LUGGAGE 0019 1FLOOR & LUGGAGE

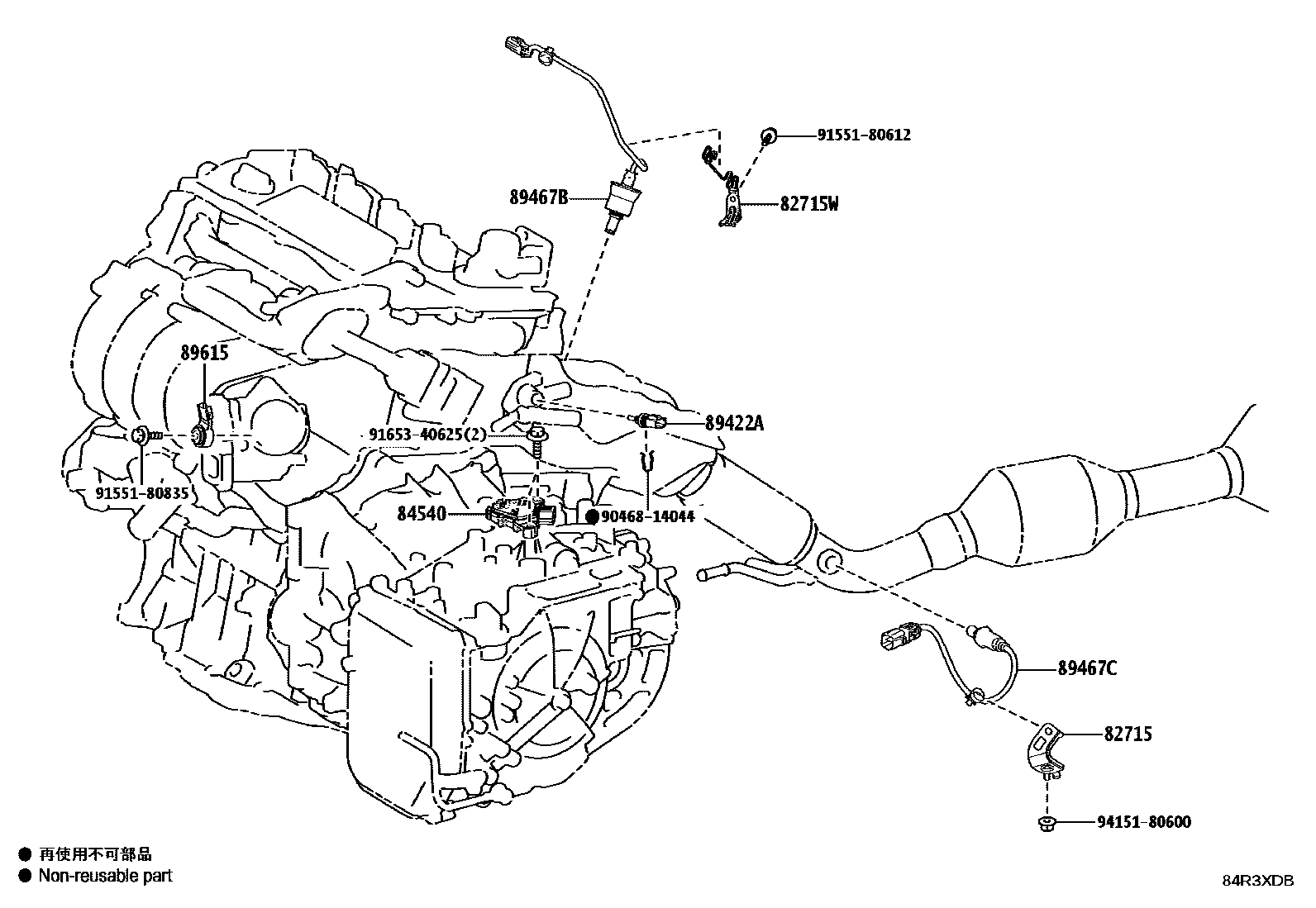

82715BRACKET,WIRING HARNESS CLAMP

main82715-33K30iAXVA80,AXVH80,MXVA80202406

82715WBRACKET, WIRING HARNESS CLAMP

main82715-12V90iMXVA80202406

main82715-33K11supersedes 82715-33V10iAXVH80..LHD..EUR202406

UKRAINE SPEC

84540SWITCH ASSY, NEUTRAL START

main84540-33021iAXVA80202406

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXVA80,AXVH80,MXVA80202406

89467BSENSOR, AIR FUEL RATIO

main89467-33350supersedes 89467-30130iAXVH80..LHD..EUR202406

UKRAINE SPEC

main89467-47040iMXVA80202406

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-33360iAXVA80,AXVH80,MXVA80202406

89615SENSOR, KNOCK CONTROL

main89615-20090iAXVA80,AXVH80,MXVA80202406

9046814044

main90468-14044

9155180612

main91551-80612

9155180835

main91551-80835

9165340625

main91653-40625

9415180600

main94151-80600

12 parts on this diagram · 19 diagrams in section
