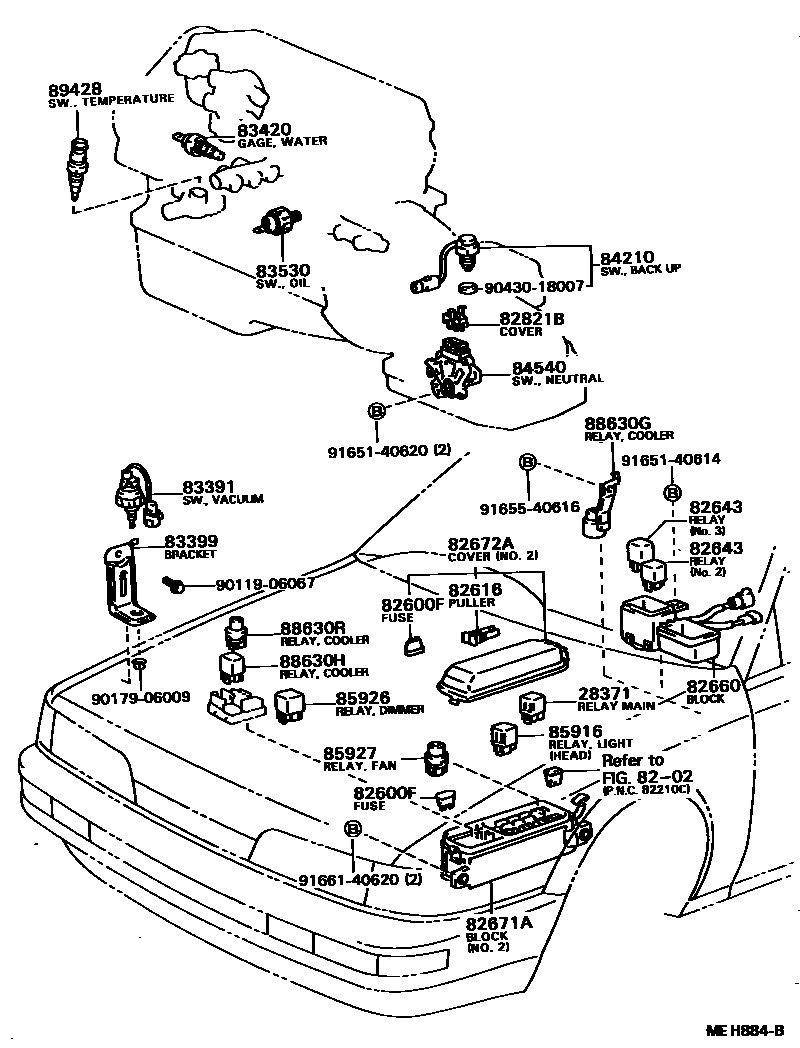

Toyota CAMRY — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

28371RELAY, IGNITION, NO.1

main85913-30020i2CT,1S,3SFE..CV20,SV2#198610-198701

main90987-04002i2CT,1S,3SFE..CV20,SV2#198701-198710

8202

82600FFUSE, FUSE BLOCK

main90982-07011iCV20198610-198710

30A,GREEN,30A

main90982-09002×3iCV20,SV2#,VZV21198710-198808

10A

main90982-09003×2iSV21..RHD198710-198808

15A

main90982-09004×2iCV20,SV2#,VZV21198710-198808

20A,YELLOW

main90982-09005×7iCV20,SV2#198610-198710

7.5A,7.5A

82616PULLER, FUSE

main82616-12010iCV20,SV2#,VZV21198710-198808

82643RELAY, DIM-DIP LAMP

main82643-12010iCV20,SV21,25..RHD198710-198808

UNITED KINGDOM SPEC,NO.1

main82643-32010iCV20,SV21..RHD198610-198708

NO.1,UNITED KINGDOM SPEC

main90987-02004iCV20,SV21..RHD198610-198708

NO.2,UNITED KINGDOM SPEC

main90987-02006iCV20,SV21..RHD198708-198710

NO.3,UNITED KINGDOM SPEC

main90987-04002iCV20,SV21..RHD198708-198710

NO.2,UNITED KINGDOM SPEC

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-32130iCV20,SV21,25..RHD198710-198808

UNITED KINGDOM SPEC

82671ABLOCK, JUNCTION

main82671-20030iCV20,SV2#,VZV21198710-198808

NO.1

main82671-32030iCV20,SV2#198610-198710

NO.2

82672ACOVER, JUNCTION BLOCK

main82672-32010iCV20,SV21..RHD198610-198708

NO.1

main82672-32030iCV20,SV2#..LHD198610-198708

NO.1

main82672-32031iCV20,SV2#..LHD198708-198710

NO.1

main82672-32070iSV2#..LHD198610-198708

NO.2,UNITED KINGDOM SPEC

main82672-32071iSV2#,VZV21..LHD198710-198808

UNITED KINGDOM SPEC,NO.2

main82672-32090iCV20..RHD198610-198708

NO.2,UPR,UNITED KINGDOM SPEC

main82672-32091iCV20..RHD198710-198808

NO.2,UPPER

main82672-32100iCV20198710-198808

NO.2,LOWER

main82672-32110iSV21..RHD198610-198708

NO.2

main82672-32111iSV21,25..RHD198710-198808

NO.2

main82672-32120iCV20..RHD198610-198708

NO.2,UPR

main82672-32121iCV20..RHD198708-198710

NO.2,UPR

main82672-32140iCV20,SV21,25..RHD198710-198808

NO.1

82821BCOVER, CONNECTOR

main82821-12250iSV25198710-198808

main82821-32050iSV20,21..4FC198710-198804

main82821-35010iVZV21..4FC198802-198804

83391SWITCH, VACUUM

main83391-32020iCV20..LHD198610-198808

sub83391-35040

main83391-32030iSV20..5F198610-198808

83399BRACKET, VACUUM SWITCH

main83399-32040iSV20..5F198610-198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iSV21198610-198710

main83420-20020iCV20,SV20198610-198710

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iCV20198610-198808

sub83530-28030

main83530-30050iVZV21198802-198807

sub83530-30051

main83530-30080iSV2#,VZV21198807-198808

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iCV20,SV2#..5F198610-198710

84540SWITCH ASSY, NEUTRAL START

main84540-32070iSV20,21..4FC198710-198808

sub84540-16040

main84540-32090iVZV21..4FC198802-198808

85916RELAY, LIGHT CONTROL

main90987-02002iCV20,SV2#198610-198710

TAIL LAMP,MARUKO

main90987-02004iCV20,SV2#,VZV21198710-198808

TAIL LAMP,DENSO

main90987-02006iCV20,SV2#198610-198710

HEADLAMP

85926RELAY, HEADLAMP DIMMER

main85926-30020iCV20,SV21,25..RHD198710-198808

85927RELAY, COOLING FAN

main90987-03001iCV20,SV2#,VZV21198710-198808

88630GRELAY ASSY, COOLER

main88630-32020iSV21..SED..RHD..4FC198710-198808

88630HRELAY ASSY, COOLER

main88630-32010iVZV21198710-198808

88630RRELAY ASSY, COOLER, NO.3

main90987-02004iVZV21198710-198808

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15030iCV20198610-198808

main89428-20060iSV2#,VZV21198711-198808

main89428-32010iSV2#198610-198711

9011906067

main90119-06067

9017906009

main90179-06009

9043018007

main90430-18007

9165140614

main91651-40614

9165140620

main91651-40620

9165540616

main91655-40616

9166140620

main91661-40620

29 parts on this diagram · 10 diagrams in section
