Toyota CAMRY — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

8202

82600FFUSE, FUSE BLOCK

main90982-09002iCV1#,SV1#198210-198610

10A,10A

main90982-09003iCV1#,SV1#198210-198610

15A,15A

main90982-09004iCV1#,SV1#198210-198610

20A,YELLOW,20A

main90982-09005iCV1#,SV1#198210-198610

7.5A,7.5A

82616PULLER, FUSE

main82616-12010iCV1#,SV1#198210-198610

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-32030iSV11..ARL198303-198411

sub82660-32160

main82660-32040iSV11..ARL198411-198610

sub82660-32160

main82660-32050iCV10..5F198308-198406

main82660-32180iCV10..4FC198308-198406

main82660-32210iCV1#..5F198406-198610

main82660-32220iCV1#..4FC198406-198610

82661COVER, RELAY BLOCK, NO.1

main82661-32010iSV11..ARL198303-198610

ENGINE ROOM

main82661-32020iCV1#198406-198610

ENGINE ROOM,LWR

main82661-32030iCV1#,SV1#..RHD198210-198610

COWL SIDE,SUMITOMO

main82661-32040iCV1#,SV1#..LHD198210-198610

COWL SIDE

main82661-32050iSV1#..EUR198406-198610

ENGINE ROOM,UPR

main82661-32070iCV10198308-198406

ENGINE ROOM,LWR

main82661-32090iCV1#198406-198610

ENGINE ROOM,UPR

main82661-32110iCV1#,SV1#..RHD198406-198610

COWL SIDE,YAZAKI

83391SWITCH, VACUUM

main83391-14070iSV10..5F198210-198610

MARK=330B

main83391-32020iCV1#..LHD198406-198610

sub83391-35040

83399BRACKET, VACUUM SWITCH

main83399-32030iSV10..5F198210-198610

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iCV1#,SV1#198210-198610

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iSV1#198210-198310

main83530-12040iSV1#198310-198410

sub83530-14040

main83530-14020iSV1#198410-198610

sub83530-30080

main83530-14030iCV1#198503-198610

sub83530-28030

main83530-30043iCV10198308-198503

sub83530-14040

84210SWITCH ASSY, BACK-UP LAMP

main84210-60010iCV10,SV1#..5F198210-198406

main84210-60021iCV1#,SV1#..5F198406-198610

84540SWITCH ASSY, NEUTRAL START

main84540-32010iCV10,SV1#..4FC198210-198406

TOKAIRIKA

main84540-32020iCV10,SV1#..4FC198210-198406

MATSUSHITA

main84540-32050iCV1#,SV1#..4FC198406-198610

85915RELAY, MAIN

main85913-30020iCV1#,SV1#198210-198610

85916RELAY, LIGHT CONTROL

main90987-01003×2iCV1#,SV1#198210-198610

85926RELAY, HEADLAMP DIMMER

main85926-30020iCV1#,SV1#..EUR198210-198610

85927RELAY, COOLING FAN

main90987-03001iCV1#,SV1#198210-198610

88630GRELAY ASSY, COOLER

main88630-32010iSV11..ARL;CV10,SV1#..EUG198210-198406

88630HRELAY ASSY, COOLER

main90987-02004iSV11..ARL;CV10,SV1#..EUG198210-198406

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15011iSV11198506-198508

main89428-15030iCV1#198308-198610

main89428-32010iSV10198506-198508

89465SENSOR, OXYGEN

main89465-39105iSV11..FRG;SV11..ARL198508-198610

89466GASKET, OXYGEN SENSOR

main89466-32010iSV11..FRG;SV11..ARL198508-198610

sub89466-30030

89620IGNITER ASSY

main89620-32050iSV11..FRG;SV11..ARL198508-198610

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906067

main90119-06067

9017908059

main90179-08059

9043018007

main90430-18007

9046400095

main90464-00095

9046400102

main90464-00102

9046400174

main90464-00174

9165140620

main91651-40620

9166140620

main91661-40620

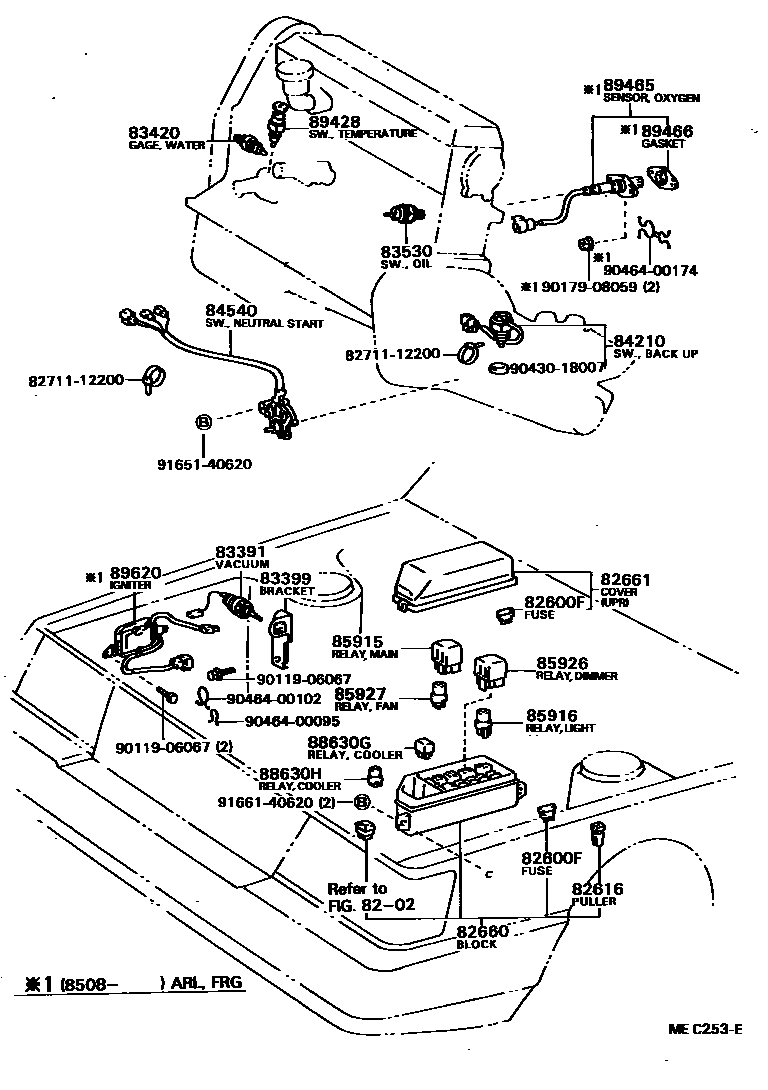

30 parts on this diagram · 8 diagrams in section
