Toyota CAMRY — SEAT TRUCK

7101

72137COVER, SEAT TRACK, OUTER RH

main72137-32010-01iCV10,SV11198301-198408

BLACK,BLACK,TRIM1#,8#

sub72137-32010

main72137-32010-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub72137-32010

main72137-32010-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

sub72137-32010

main72137-32010-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub72137-32010

72138COVER, SEAT TRACK, OUTER LH

main72137-32010-01iCV10,SV11198301-198408

BLACK,BLACK,TRIM1#,8#

sub72137-32010

main72137-32010-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub72137-32010

main72137-32010-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

sub72137-32010

main72137-32010-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub72137-32010

72157COVER, SEAT TRACK BRACKET, INNER

main72137-32010-01iCV10,SV11198301-198408

BLACK,BLACK

sub72137-32010

main72137-32010-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub72137-32010

main72137-32010-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

sub72137-32010

main72137-32010-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub72137-32010

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-32010iCV1#,SV11198301-198607

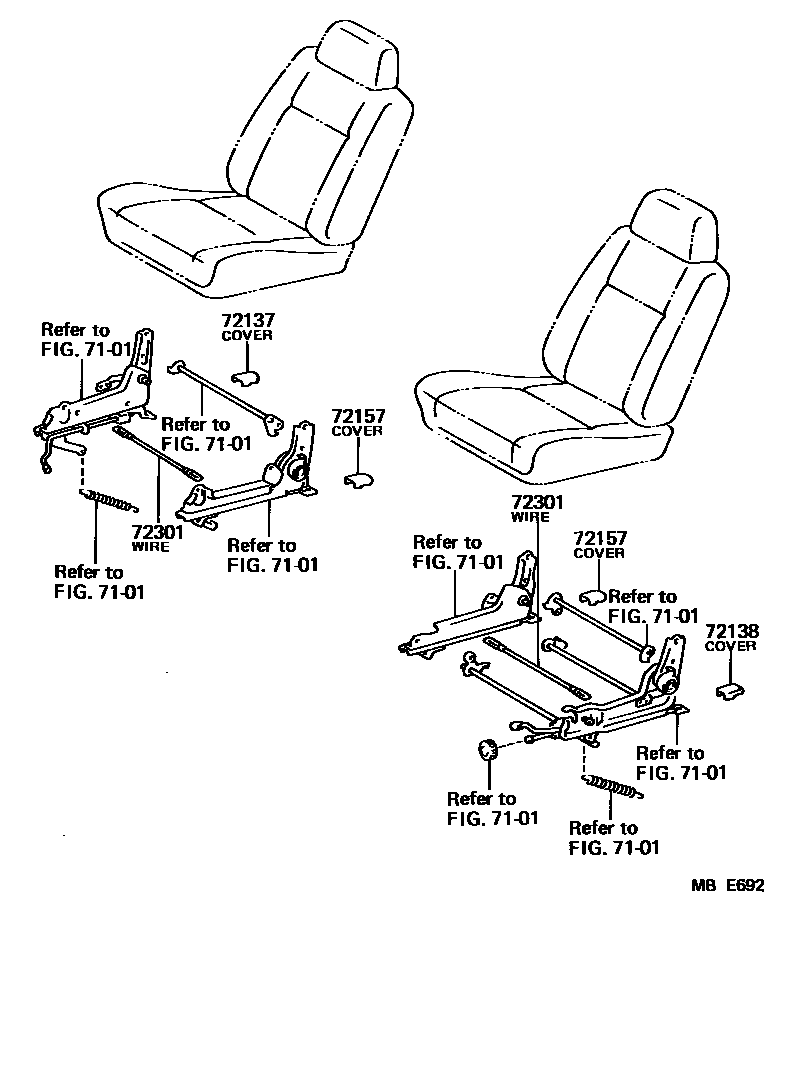

5 parts on this diagram · 1 diagram in section
