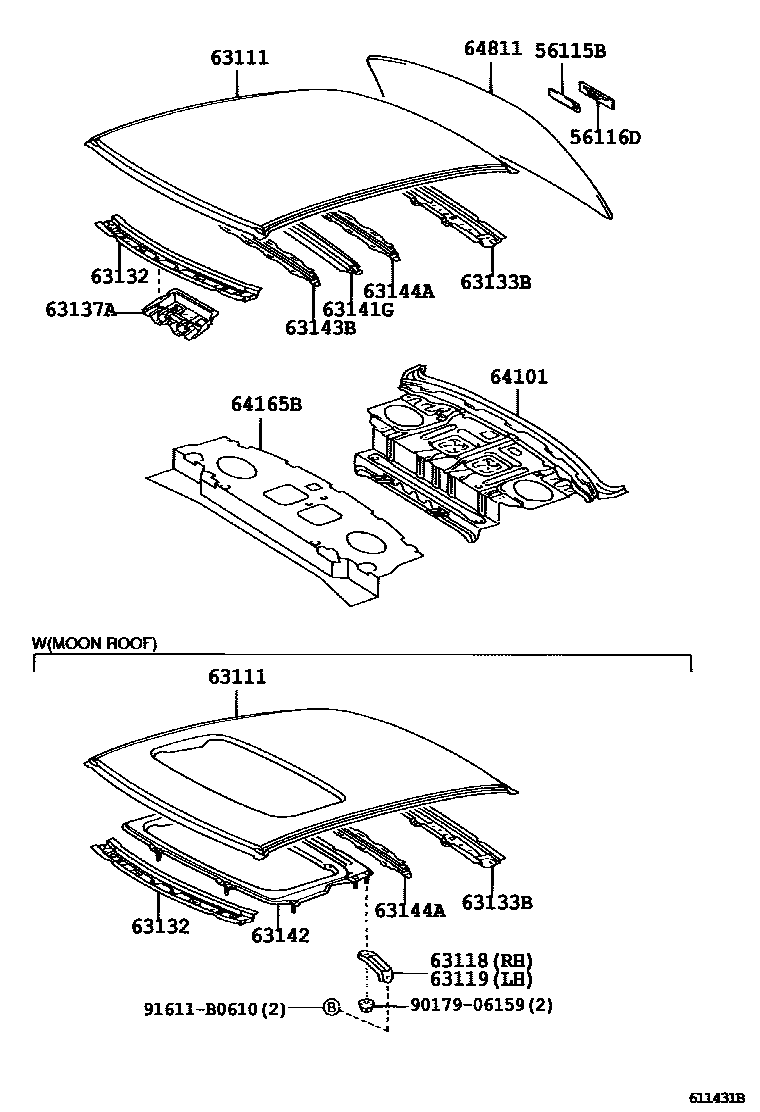

Toyota CAMRY — ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100iACV3#,MCV30200108-200406

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iACV3#,MCV30200108-200406

63111PANEL, ROOF

main63111-33190iACV3#,MCV30200108-200406

main63111-33200iACV3#,MCV30200108-200406

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-33010iACV3#,MCV30200108-200406

63119SUPPORT, ROOF PANEL, LH

main63118-33010iACV3#,MCV30200108-200406

63132PANEL, WINDSHIELD HEADER, INNER

main63132-33040iACV3#,MCV30200108-200406

63133BFRAME, BACK WINDOW

main63133-33040iACV3#,MCV30200108-200406

63137ABRACKET, DOME LAMP, NO.1

main63137-33070iACV3#,MCV30200108-200406

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-33050iACV3#,MCV30200108-200406

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33040iACV3#,MCV30200108-200406

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33050iACV3#,MCV30200108-200406

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-33070iACV3#,MCV30200108-200406

main63144-33080iACV3#,MCV30200108-200406

W(MOON ROOF)

64101PANEL SUB-ASSY, UPPER BACK

main64101-33260iACV3#,MCV30200108-200406

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-33060iACV3#,MCV30200108-200307

sub64165-33061

main64165-33061iACV3#,MCV30200307-200408

sub64165-33062

main64165-33062iACV3#,MCV30200408

64811GLASS, BACK WINDOW

main64801-33230iACV3#,MCV30200406

main64811-0W310iACV3#,MCV30200108-200303

*EHTT,T=3.5,GREEN

sub64811-0W330

main64811-0W330iACV3#,MCV30200303-200406

*EHTT,T=3.5,GREEN

main64811-33350iACV3#,MCV30200108-200303

*UVCEHTT,T=3.5,GREEN

sub64811-33480

main64811-33480iACV3#,MCV30200303-200406

*UVCEHTT,T=3.5,GREEN

9017906159

main90179-06159

91611B0610

main91611-B0610

17 parts on this diagram · 2 diagrams in section
