Toyota CAMRY — REAR SEAT & SEAT TRACK

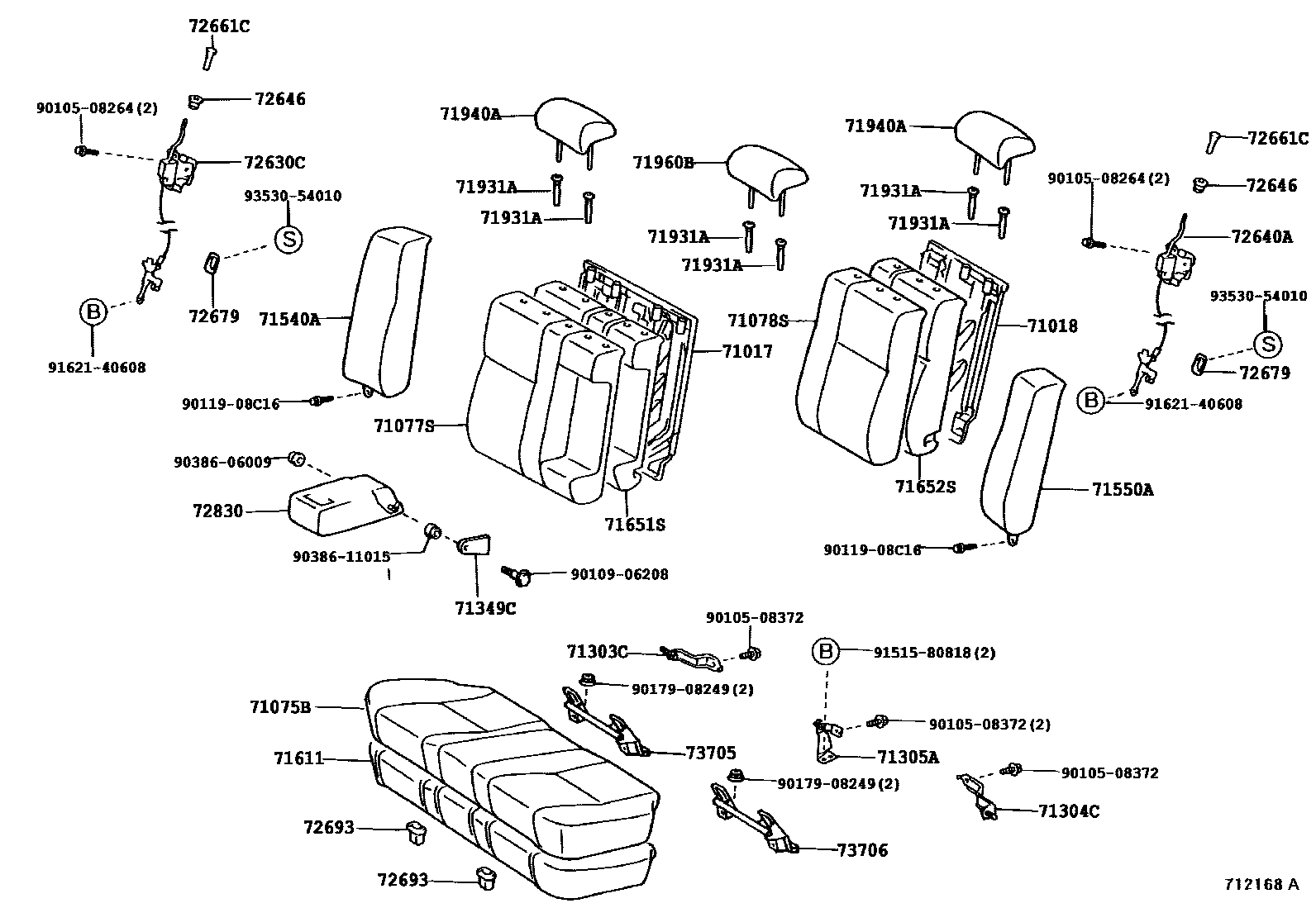

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-33150i200108-200406
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-33080i200108-200406
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-33520-B0i200108-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71075-33520-E0i200108-200406
LEATHER SEAT,FAWN,TRIM4#
main71075-33530-B1i200108-200307
DK. GRAY SPORT INSER,TRIM1#
sub71075-33590
main71075-33530-E0i200108-200307
FAWN SPORT INSERT,TRIM4#
sub71075-33590
main71075-33590-B0i200307-200406
DK. GRAY SPORT INSERT,TRIM1#
main71075-33590-E0i200307-200406
FAWN SPORT INSERT,TRIM4#
main71075-33670-B0i200406-200601
LEATHER,DK.GRAY,TRIM9#
main71075-33670-E0i200406-200601
LEATHER,FAWN,TRIM4#
main71075-33730-B0i200406-200601
DK. GRAY SPORT INSERT,TRIM9#
main71075-33730-E0i200406-200601
FAWN SPORT INSERT,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-33670-B1i200108-200307
DK. GRAY SPORT INSER,TRIM1#
sub71077-33770
main71077-33670-E0i200108-200307
FAWN SPORT INSERT,TRIM4#
sub71077-33770
main71077-33680-B0i200108-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71077-33680-E0i200108-200406
LEATHER SEAT,FAWN,TRIM4#
main71077-33770-B0i200307-200406
DK. GRAY SPORT INSERT,TRIM1#
main71077-33770-E0i200307-200406
FAWN SPORT INSERT,TRIM4#
main71077-33800-B0i200406
DK.GRAY,TRIM9#
main71077-33800-E0i200406
FAWN,TRIM4#
main71077-33820-B0i200406
LEATHER,DK.GRAY,TRIM9#
main71077-33820-E0i200406
LEATHER,FAWN,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-33410-B1i200108-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71078-33410-E0i200108-200406
LEATHER SEAT,FAWN,TRIM4#
main71078-33420-B1i200108-200307
DK. GRAY SPORT INSER,TRIM1#
sub71078-33510
main71078-33420-E0i200108-200307
FAWN SPORT INSERT,TRIM4#
sub71078-33510
main71078-33510-B0i200307-200406
DK. GRAY SPORT INSERT,TRIM1#
main71078-33510-E0i200307-200406
FAWN SPORT INSERT,TRIM4#
main71078-33530-B0i200406
DK.GRAY,TRIM9#
main71078-33530-E0i200406
FAWN,TRIM4#
main71078-33550-B0i200406
LEATHER,DK.GRAY,TRIM9#
main71078-33550-E0i200406
LEATHER,FAWN,TRIM4#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-33060i200108-200601
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71303-33070i200108-200601
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-33050i200108-200601
71349CCOVER, REAR SEATBACK HINGE
main71349-33010i200108-200406
71540ABACK ASSY, REAR SIDE SEAT, RH
main71540-33270-B0i200307-200406
DK.GRAY,TRIM1#
main71540-33270-E0i200307-200406
FAWN,TRIM4#
main71540-33270-K0i200406
DK.GRAY,TRIM9#
main71540-33310-B2i200108-200406
LEATHER SEAT,DK.GRAY,TRIM1#
main71540-33310-E1i200108-200406
LEATHER SEAT,FAWN,TRIM4#
main71540-33320-B2i200108-200307
DK.GRAY,TRIM1#
sub71540-33270
main71540-33320-E1i200108-200307
FAWN,TRIM4#
sub71540-33270
main71540-33370-E0i200406
LEATHER,FAWN,TRIM4#
main71540-33370-K0i200406
LEATHER,STONE,TRIM9#
71550ABACK ASSY, REAR SIDE SEAT, LH
main71550-33270-B0i200307-200406
DK.GRAY,TRIM1#
main71550-33270-E0i200307-200406
FAWN,TRIM4#
main71550-33270-K0i200406
DK.GRAY,TRIM9#
main71550-33310-B2i200108-200406
LEATHER SEAT,DK.GRAY,TRIM1#
main71550-33310-E1i200108-200406
LEATHER SEAT,FAWN,TRIM4#
main71550-33320-B2i200108-200307
DK.GRAY,TRIM1#
sub71550-33270
main71550-33320-E1i200108-200307
FAWN,TRIM4#
sub71550-33270
main71550-33390-E0i200406
LEATHER,FAWN,TRIM4#
main71550-33390-K0i200406
LEATHER,STONE,TRIM9#
71611PAD, REAR SEAT CUSHION
main71503-33060i200108-200406
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-33140i200108-200406
main71651-33160i200108-200406
LEATHER SEAT
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-33070i200108-200406
main71652-33080i200108-200406
LEATHER SEAT
71931ASUPPORT, REAR SEAT HEADREST
main71956-47010-B2i200108-200406
W/O(LOCK),DK.GRAY,TRIM1#
sub71956-02040
sub71956-47010
main71956-47010-B2i200406
W/O(LOCK),DK.GRAY,TRIM9#
sub71956-02040
sub71956-47010
main71956-47010-E0i200108-200406
W/O(LOCK),FAWN,TRIM4#
sub71956-02040
sub71956-47010
main71970-47010-B2i200108-200406
W(LOCK),DK.GRAY,TRIM1#
sub71970-02040
sub71970-47010
main71970-47010-B2i200406
W(LOCK),DK.GRAY,TRIM9#
sub71970-02040
sub71970-47010
main71970-47010-E0i200108-200406
W(LOCK),FAWN,TRIM4#
sub71970-02040
sub71970-47010
71940AHEADREST ASSY, REAR SEAT
main71940-33450-B1i200108-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71940-33450-E0i200108-200406
LEATHER SEAT,FAWN,TRIM4#
main71940-33460-B0i200406
DK. GRAY SPORT INSERT,TRIM9#
main71940-33460-B0i200108-200406
DK. GRAY SPORT INSERT,TRIM1#
main71940-33460-E0i200108-200406
FAWN SPORT INSERT,TRIM4#
main71940-33610-B0i200406
LEATHER SEAT,DK.GRAY,TRIM9#
main71940-33610-E0i200406
LEATHER SEAT,FAWN,TRIM4#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71940-33510-B0i200108-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71940-33510-E0i200108-200406
LEATHER SEAT,FAWN,TRIM4#
main71940-33520-B0i200108-200307
DK. GRAY SPORT INSER,TRIM1#
sub71940-33590
main71940-33520-E0i200108-200307
FAWN SPORT INSERT,TRIM4#
sub71940-33590
main71940-33590-B0i200307-200406
DK. GRAY SPORT INSERT,TRIM1#
main71940-33590-B1i200406
DK. GRAY SPORT BOLSTER,TRIM9#
main71940-33590-E0i200307-200406
FAWN SPORT INSERT,TRIM4#
main71940-33590-E1i200406
FAWN SPORT BOLSTER,TRIM4#
main71940-33620-B1i200406
LEATHER SEAT,DK.GRAY,TRIM9#
main71940-33620-E1i200406
LEATHER SEAT,FAWN,TRIM4#
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-33050i200108-200406
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-33050i200108-200406
72646GROMMET, REAR SEATBACK STOP BUTTON
main72646-33010-B4i200108-200406
DK.GRAY,TRIM1#
sub72646-33010
main72646-33010-E1i200108-200406
FAWN,TRIM4#
sub72646-33010
72661CBUTTON, REAR SEATBACK LOCK RELEASE
main72661-32030-B3i200201-200406
DK.GRAY,TRIM1#
sub72661-32030
main72661-32030-B3i200406
DK.GRAY,TRIM9#
sub72661-32030
main72661-32030-E0i200108-200406
FAWN,TRIM4#
sub72661-32030
72679BEZEL, REAR SEATBACK LOCK CONTROL
main72679-20020-C0i200108-200406
BLACK,TRIM1#,4#
sub72679-20020
main72679-20020-C0i200406
BLACK
sub72679-20020
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i200108-200601
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-33400-B1i200108-200406
LEATHER SEAT,DK.GRAY,TRIM1#
main72830-33400-E0i200108-200406
LEATHER SEAT,FAWN,TRIM4#
main72830-33410-B0i200108-200307
DK.GRAY,TRIM1#
sub72830-33480
main72830-33410-E0i200108-200307
FAWN,TRIM4#
sub72830-33480
main72830-33480-B0i200406
DK.GRAY,TRIM9#
main72830-33480-B0i200307-200406
DK.GRAY,TRIM1#
main72830-33480-E0i200307-200406
FAWN,TRIM4#
main72830-33490-B0i200406
LEATHER SEAT,DK.GRAY,TRIM9#
main72830-33490-E0i200406
LEATHER SEAT,FAWN,TRIM4#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-33010i200108-200601
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-33010i200108-200601
9010508264
main90105-08264
9010508372
main90105-08372
9010906208
main90109-06208
9011908C16
main90119-08C16
9017908249
main90179-08249
9038606009
main90386-06009
9038611015
main90386-11015
9151580818
main91515-80818
9162140608
main91621-40608
9353054010
main93530-54010

36 parts on this diagram · 1 diagram in section
