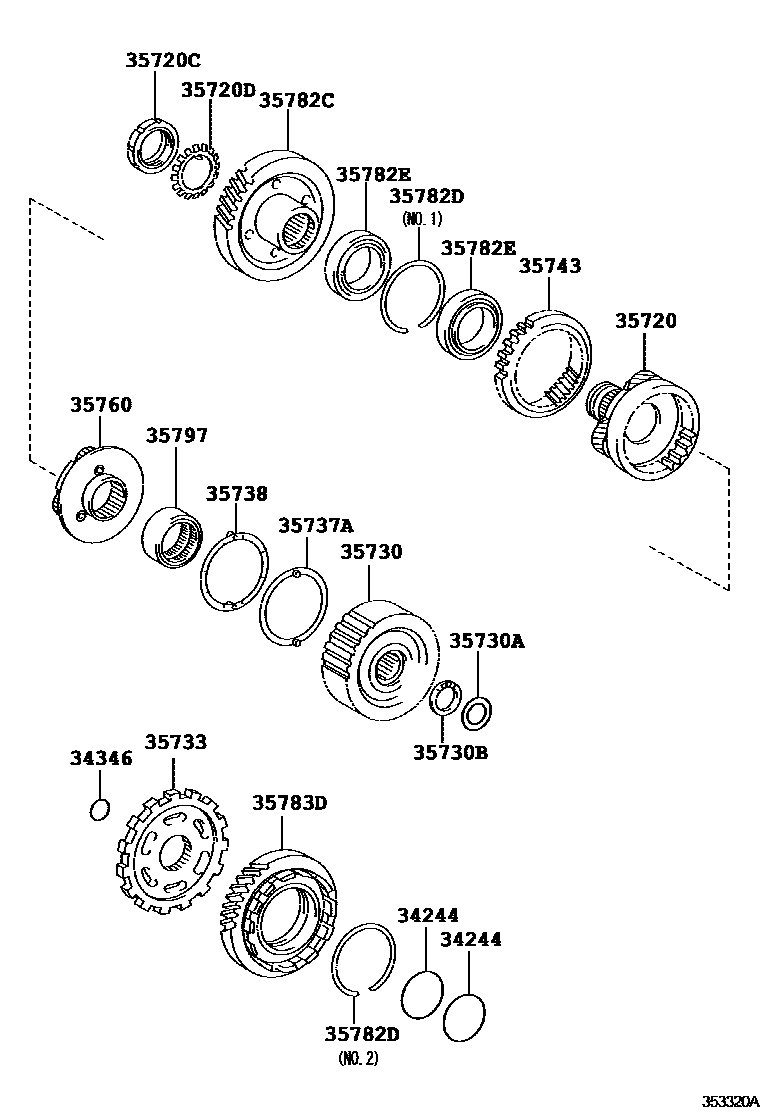

Toyota CAMRY — PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL
35720GEAR ASSY, FRONT PLANETARY
sub35720-44010
sub35720-21030
sub35720-21031
sub35720-28070
sub35720-28080
35720CNUT (FOR FRONT PLANETARY GEAR)
35720DWASHER (FOR FRONT PLANETARY GEAR)
35730GEAR ASSY, REAR PLANETARY SUN
sub35730-28020
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
35733GEAR, PARKING LOCK
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
sub35743-28010
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
NO.1
NO.2
35782EBEARING(FOR COUNTER DRIVE GEAR)
35797RACE, 1 WAY CLUTCH INNER
18 parts on this diagram · 1 diagram in section
