Toyota CAMRY — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

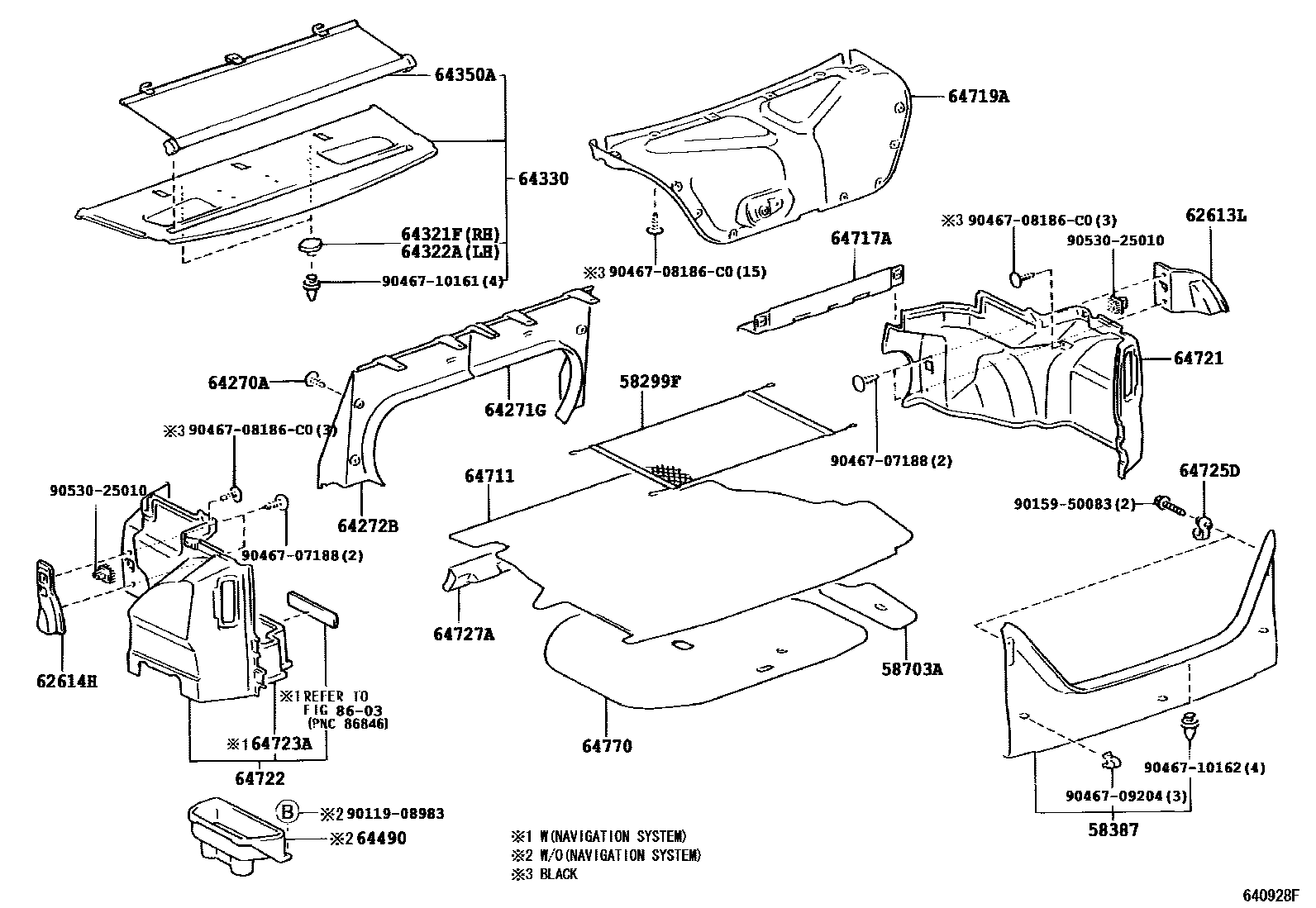

Parts diagram
58299FNET, BAGGAGE HOLDER
main58299-AA010i200108-200406
58387PLATE, REAR FLOOR FINISH
main58387-33070i200108-200406
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-33040i200108-200406
62613LINSULATOR, QUARTER WHEEL HOUSE, NO.2 RH
main62613-33010i200108-200406
62614HINSULATOR, QUARTER WHEEL HOUSE, NO.2 LH
main62614-33010i200108-200406
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
main90467-08186-C0i200108-200406
BLACK,TRIM1#,4#
sub90467-08186
main90467-08186-C0i200406-200601
BLACK
sub90467-08186
64271GBOARD, ROOM PARTITION, RH
main64271-33040i200108-200406
64272BBOARD, ROOM PARTITION, LH
main64272-33030i200108-200406
64321FBRACKET, PACKAGE TRAY TRIM, RH
main64323-33030i200108-200406
64322ABRACKET, PACKAGE TRAY TRIM, LH
main64323-33030i200108-200406
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-33410-B0i200406-200504
W(SUN SHADE & HIGH MOUNT STOP LAMP),DK. GRAY PACKAGE TRA,TRIM9#
sub64330-33520
main64330-33410-B0i200108-200406
W(SUN SHADE & HIGH MOUNT STOP LAMP),DK. GRAY PACKAGE TRA,TRIM1#
sub64330-33520
main64330-33410-E0i200108-200504
W(SUN SHADE & HIGH MOUNT STOP LAMP),FAWN,TRIM4#
sub64330-33520
main64330-33420-B0i200406
W(HIGH MOUNT STOP LAMP),DK. GRAY PACKAGE TRA,TRIM9#
main64330-33420-B0i200108-200406
W(HIGH MOUNT STOP LAMP),DK. GRAY PACKAGE TRA,TRIM1#
main64330-33420-E0i200108-200406
W(HIGH MOUNT STOP LAMP),FAWN,TRIM4#
main64330-33430-B0i200108-200406
DK. GRAY PACKAGE TRA,TRIM1#
main64330-33430-B0i200406
DK. GRAY PACKAGE TRA,TRIM9#
main64330-33430-E0i200108-200406
FAWN,TRIM4#
main64330-33440-B0i200108-200406
W(SUN SHADE),DK. GRAY PACKAGE TRA,TRIM1#
sub64330-33530
main64330-33440-B0i200406-200504
W(SUN SHADE),DK. GRAY PACKAGE TRA,TRIM9#
sub64330-33530
main64330-33440-E0i200108-200504
W(SUN SHADE),FAWN,TRIM4#
sub64330-33530
main64330-33520-B1i200504
W(SUN SHADE & HIGH MOUNT STOP LAMP),DK. GRAY PACKAGE TRAY,TRIM9#
main64330-33520-E0i200504
W(SUN SHADE & HIGH MOUNT STOP LAMP),FAWN,TRIM4#
main64330-33530-B0i200504
W(SUN SHADE),DK. GRAY PACKAGE TRAY,TRIM9#
main64330-33530-E0i200504
W(SUN SHADE),FAWN,TRIM4#
64350ASHADE ASSY, REAR WINDOW
main64350-33010i200108-200406
64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE
main64490-33010-C0i200108-200406
BLACK,TRIM1#,4#
main64490-33010-C0i200406
BLACK,TRIM4#,9#
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-33140-C0i200108-200406
BLACK,TRIM1#,4#
main64711-33140-C0i200406
BLACK,TRIM4#,9#
main64711-33150-C0i200108-200307
W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#
main64711-33150-C0i200406
W(NAVIGATION SYSTEM),BLACK,TRIM4#,9#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-33050-C0i200108-200406
BLACK,TRIM1#,4#
main64717-33050-C0i200406
BLACK,TRIM4#,9#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-33060-C0i200406
BLACK,TRIM4#,9#
main64719-33060-C0i200108-200406
BLACK,TRIM1#,4#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-33080-C0i200108-200405
BLACK,TRIM1#,4#
sub64721-33081
main64721-33081-C0i200405-200406
BLACK,TRIM1#,4#
main64721-33081-C0i200406
BLACK,TRIM4#,9#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-33090-C0i200108-200307
W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#
sub64722-33091
main64722-33091-C0i200406
W(NAVIGATION SYSTEM),BLACK,TRIM4#,9#
main64722-33100-C0i200108-200405
BLACK,TRIM1#,4#
sub64722-33101
main64722-33101-C0i200405-200406
BLACK,TRIM1#,4#
main64722-33101-C0i200406
BLACK,TRIM4#,9#
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
main64723-33030-C0i200108-200307
BLACK,TRIM1#,4#
main64723-33030-C0i200406
BLACK,TRIM4#,9#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
main64725-33060i200108-200311
sub64725-33061
main64725-33061i200311-200406
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
main64727-33020i200108-200406
64770COVER ASSY, SPARE WHEEL
main64770-33060i200108-200406
8603
9011908983
main90119-08983
9015950083
main90159-50083
9046707188
main90467-07188
9046708186C0
main90467-08186C0
9046709204
main90467-09204
9046710161
main90467-10161
9046710162
main90467-10162
9053025010
main90530-25010

31 parts on this diagram · 2 diagrams in section
