Toyota CAMRY — LOCK CYLINDER SET

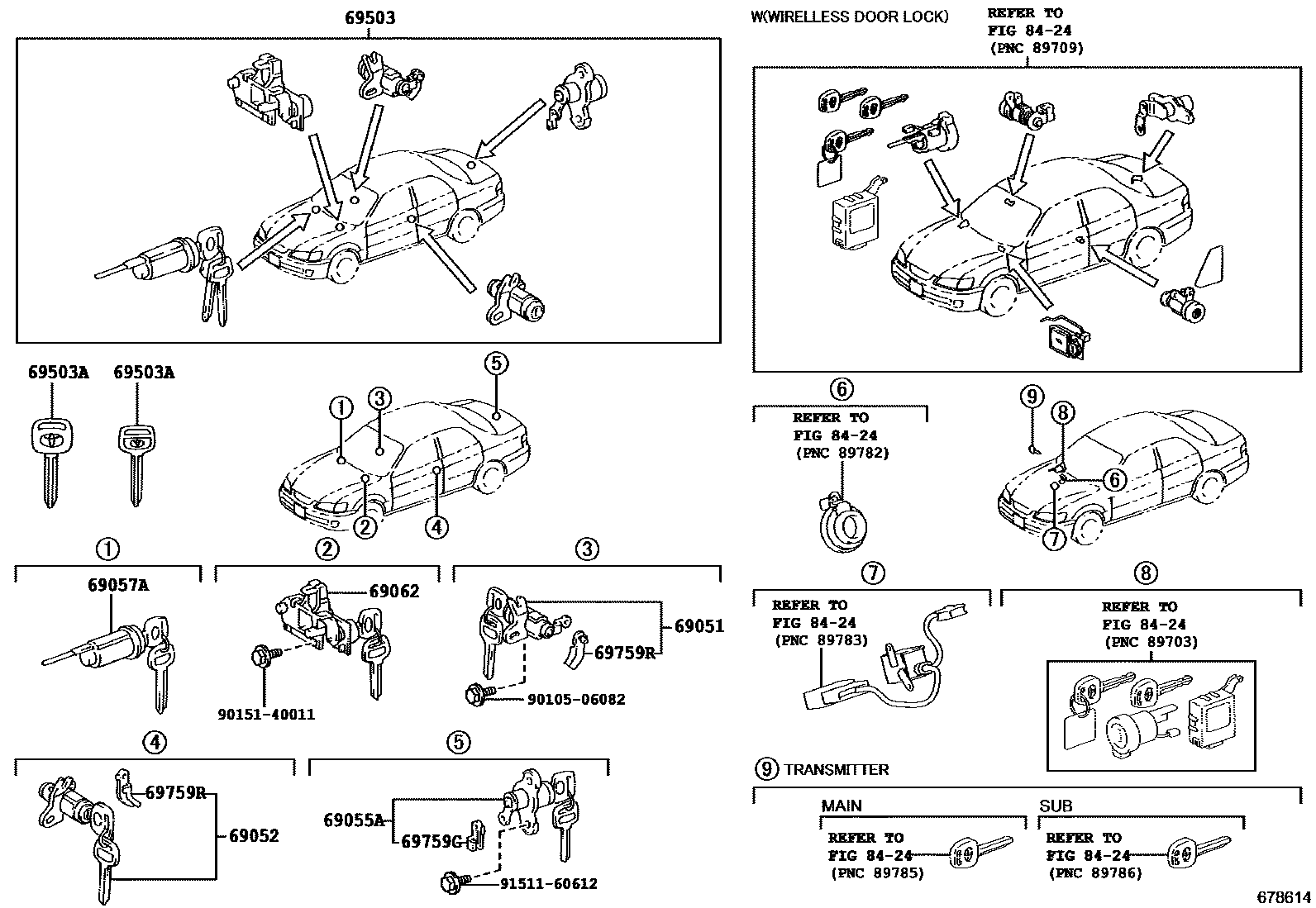

Parts diagram

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-33190i199608

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33200i199608

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33240i199608-199908

main69055-33330i199908

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33170i199608-200008

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-33020i199608

69503CYLINDER SET, LOCK

main69005-33540i199608-199908

69503AKEY, BLANK

main90999-00185×2i199608-199908

MASTER KEY,W(*68)

main90999-00187i199608-200008

SUB KEY,W(*68)

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20080i199608-199908

main69759-24080i199908

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080i199608

RH

main69759-12090i199608

LH

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

9010506082

main90105-06082

9015140011

main90151-40011

9151160612

main91511-60612

13 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota CAMRY

This section contains 14 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CAMRY. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK.
