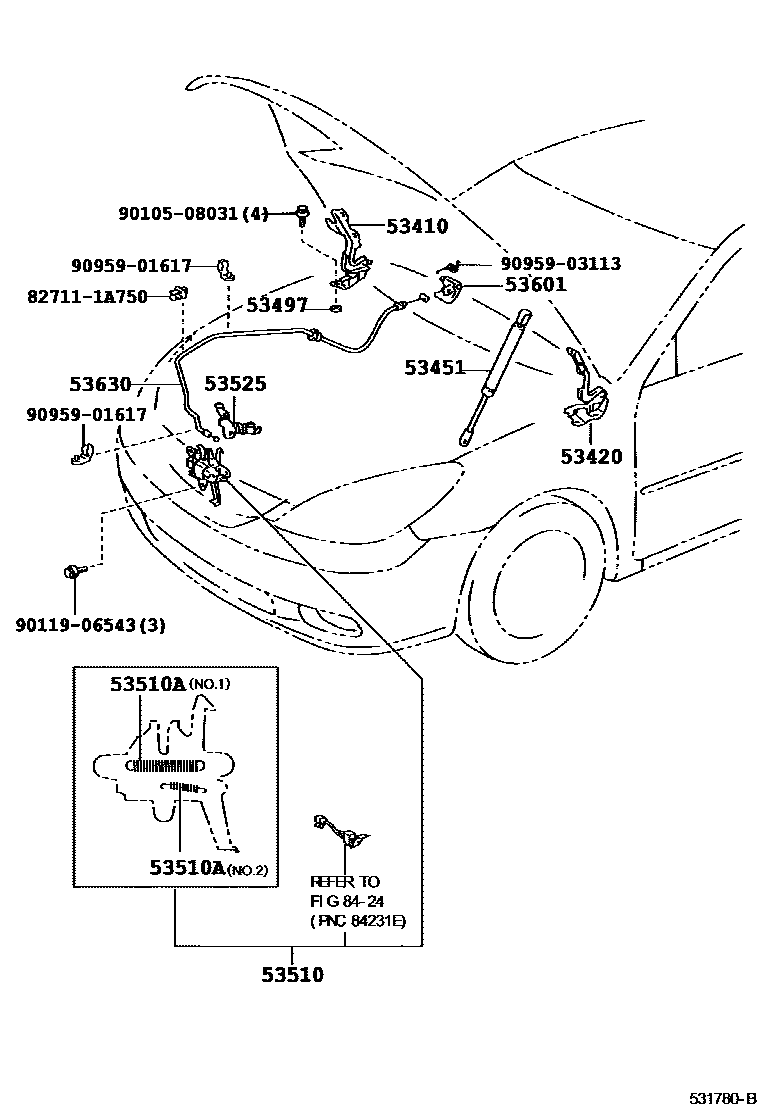

Toyota CAMRY — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-33120iACV3#,MCV30200108-200406

53420HINGE ASSY, HOOD, LH

main53420-33120iACV3#,MCV30200108-200406

53451ROD, HOOD SUPPORT

main53440-AA010iACV3#,MCV30200108-200111

sub53440-AA011

main53440-AA011iACV3#,MCV30200111-200406

53497PAD, HOOD HINGE, NO.1

main53497-20070iACV3#,MCV30200108-200406

T=2.0

main53497-42010iACV3#,MCV30200108-200406

T=0.5

53510LOCK ASSY, HOOD

main53510-33201iACV3#,MCV30..LHD200108-200406

main53510-33231iACV3#,MCV30..RHD200109-200406

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iACV3#,MCV30200108-200406

WD=0.9,CW=21

main90506-20066iACV3#,MCV30200108-200406

WD=2.0,CW=17

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-33040iACV3#,MCV30200108-200406

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-12040-B5iACV3#,MCV30..LHD200406

DK.GRAY,TRIM9#

sub53611-12040

main53611-12040-B5iACV3#,MCV30..LHD200108-200406

DK.GRAY,TRIM1#

sub53611-12040

main53611-12040-E1iACV3#,MCV30..LHD200108-200406

FAWN,TRIM4#

sub53611-12040

main53611-22010-B5iACV3#,MCV30..RHD200109-200406

DK.GRAY,TRIM1#

sub53611-22010

main53611-22010-B5iACV3#,MCV30..RHD200406

DK.GRAY,TRIM9#

sub53611-22010

main53611-22010-E2iACV3#,MCV30..RHD200109-200406

FAWN,TRIM4#

sub53611-22010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33110iACV3#,MCV30200108-200406

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010508031

main90105-08031

9011906543

main90119-06543

9095901617

main90959-01617

9095903113

main90959-03113

14 parts on this diagram · 2 diagrams in section
