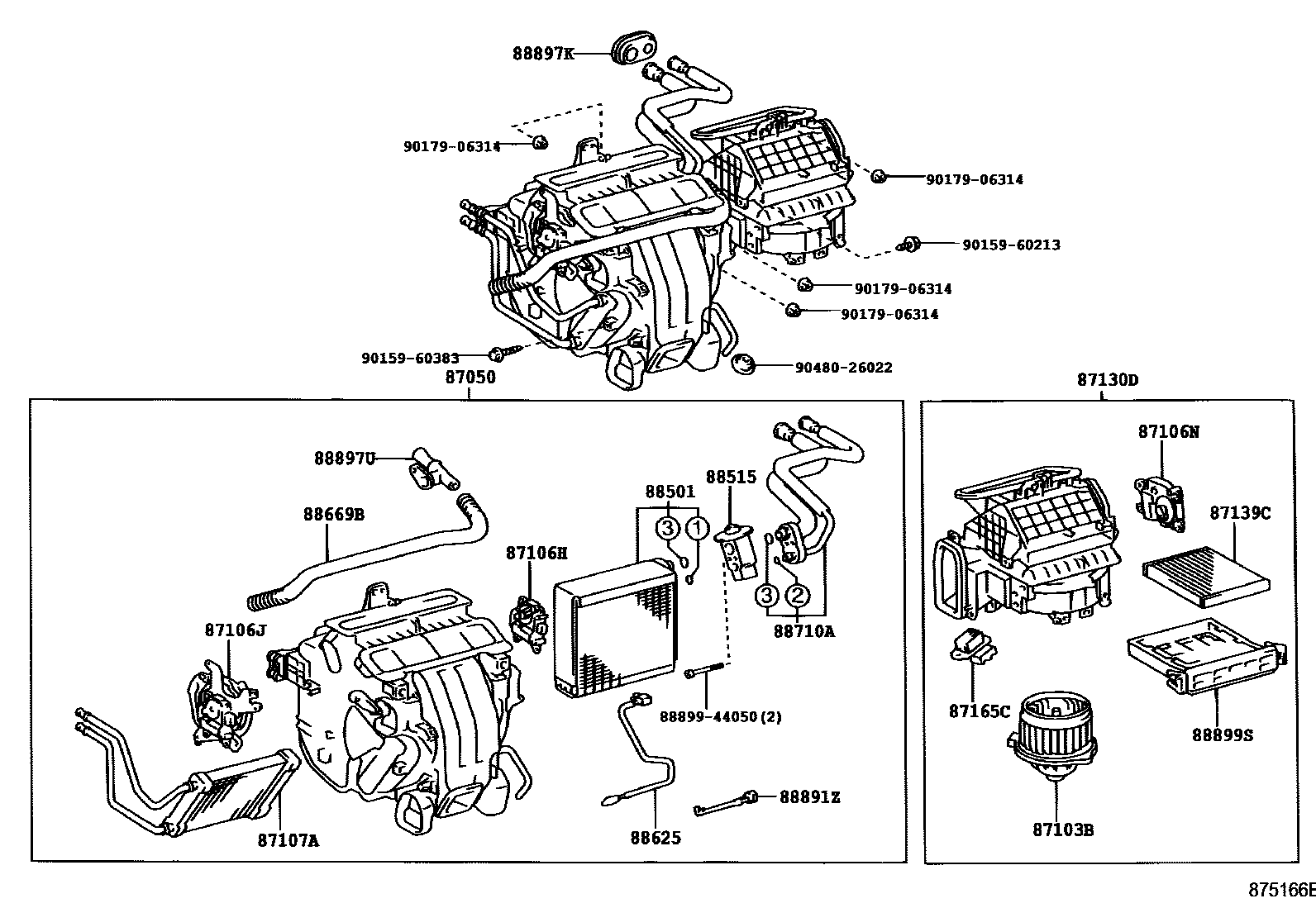

Toyota CAMRY — HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
sub87050-33501
sub87050-33502
sub87050-33521
sub87050-33522
sub87050-33531
sub87050-33532
sub87050-33551
sub87050-33552
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
87165CCONTROL, BLOWER MOTOR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88625THERMISTOR, COOLER, NO.1
88669BHOSE, COOLER AIR
88710ATUBE ASSY, AIR CONDITIONER
88891ZBRACKET, COOLER THERMISTOR
88897KGROMMET, (FOR COOLER PIPE)
88897UPIPE, ASPIRATOR
88899SFRAME, FRONT COOLER
8889944050COVER, EVAPORATOR
main88899-44050
9015960213
main90159-60213
9015960383
main90159-60383
9017906314
main90179-06314
9048026022
main90480-26022
23 parts on this diagram · 3 diagrams in section
