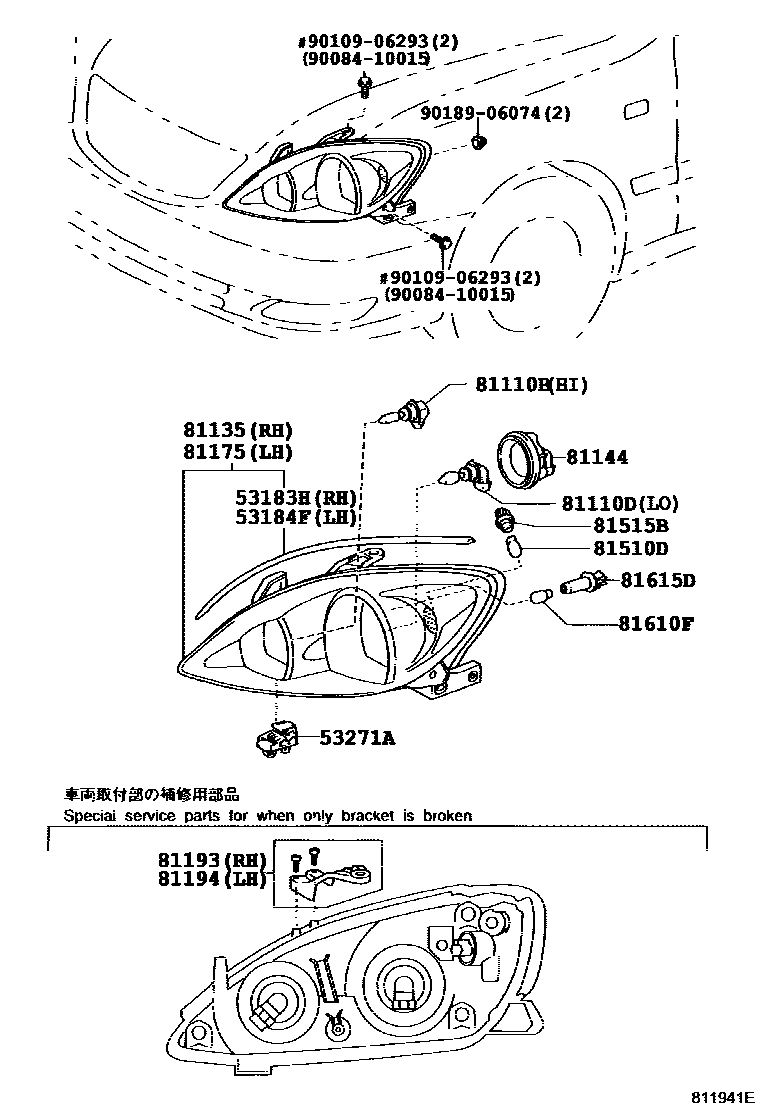

Toyota CAMRY — HEADLAMP

0001 1 0002 1

53183HSEAL, HEADLAMP COVER, RH

main53183-33090iACV3#,MCV30200108-200406

53184FSEAL, HEADLAMP COVER, LH

main53184-33090iACV3#,MCV30200108-200406

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010iACV3#,MCV30200108-200406

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041iACV3#,MCV30200210-200601

12V 65W

sub90981-13046

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13046iACV3#,MCV30200307-200406

12V65W(SAE),60W(ECE)

main90981-13063iACV3#,MCV30200108-200601

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-33430iACV3#,MCV30..RHD200109-200406

main81130-33440iACV3#,MCV30..LHD200108-200406

main81130-33440iACV3#,MCV30..RHD200109-200406

RH TRAFFIC SPEC

main81130-33520iACV3#,MCV30..RHD200406

main81130-33530iACV3#,MCV30..LHD200406

RH TRAFFIC SPEC

81144COVER, HEADLAMP, NO.1

main81135-33430iACV3#,MCV30200210-200601

81175UNIT ASSY, HEADLAMP, LH

main81170-33430iACV3#,MCV30..RHD200109-200406

main81170-33440iACV3#,MCV30..RHD200109-200406

RH TRAFFIC SPEC

main81170-33440iACV3#,MCV30..LHD200108-200406

main81170-33510iACV3#,MCV30..RHD200406

main81170-33520iACV3#,MCV30..LHD200406

RH TRAFFIC SPEC

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-33020iACV3#,MCV30200108-200406

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-33020iACV3#,MCV30200108-200406

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iACV3#,MCV30200108-200406

12V 21W

main90981-13063iACV3#,MCV30200305-200406

12V 55W,HALOGEN

main90981-15021iACV3#,MCV30200406-200601

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iACV3#,MCV30..LHD200406

W(RH AIMING FOR LHD)

main90075-99080iACV3#,MCV30200108-200406

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iACV3#,MCV30200108-200406

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60046iACV3#,MCV30200108-200406

9008410015

main90084-10015

9010906293

main90109-06293

9018906074

main90189-06074

17 parts on this diagram · 2 diagrams in section
