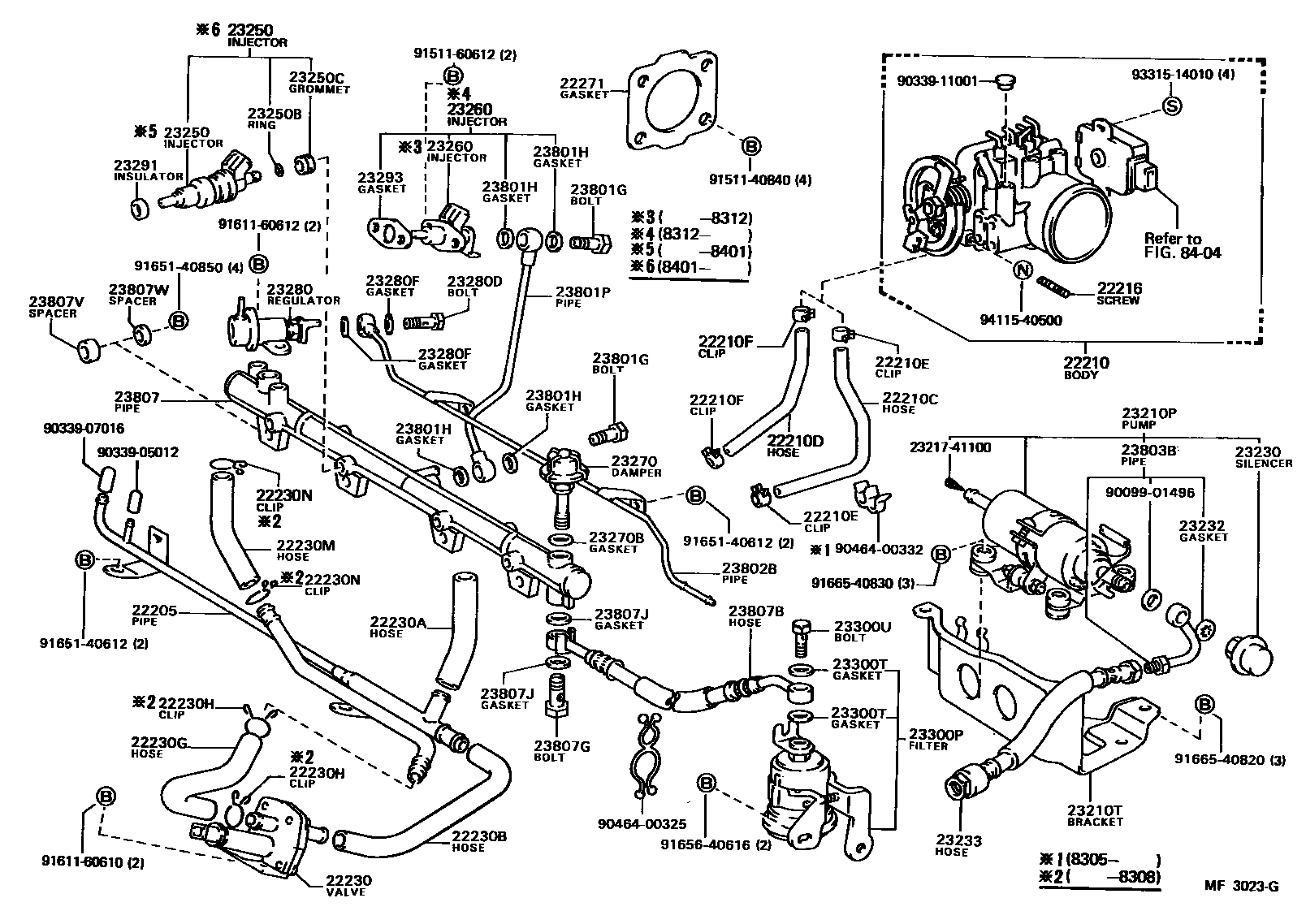

Toyota CAMRY — FUEL INJECTION SYSTEM
22205PIPE SUB-ASSY, AUXILIARY AIR
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
sub96135-51300
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
sub96135-51300
22216SCREW, DASH POT ADJUSTING
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
22230BHOSE, AUXILIARY AIR VALVE, NO.2
22230GHOSE, AUXILIARY AIR VALVE, NO.3
22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3
22230MHOSE, AUXILIARY AIR VALVE, NO.4
22230NCLIP, AUXILIARY AIR VALVE, NO.4
22271GASKET, THROTTLE BODY
sub22271-74011
23210PPUMP ASSY, FUEL W/MOTOR & BRACKET
23210TBRACKET, FUEL PUMP
23230SILENCER ASSY
23232GASKET(FOR FUEL PUMP HOSE)
23233HOSE, FUEL PUMP
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
sub23293-42010
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23803BPIPE SUB-ASSY, FUEL, NO.3
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807GBOLT, UNION PIPE FUEL DELIVARY INLET
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23807WSPACER, NO.2(FOR DELIVERY PIPE)
8404
2321741100FILTER, FUEL PUMP
main23217-41100
9009901496
main90099-01496
9033905012
main90339-05012
9033907016
main90339-07016
9033911001
main90339-11001
9046400325
main90464-00325
9046400332
main90464-00332
9151140840
main91511-40840
9151160612
main91511-60612
9161160610
main91611-60610
9161160612
main91611-60612
9165140612
main91651-40612
9165140850
main91651-40850
9165640616
main91656-40616
9166540820
main91665-40820
9166540830
main91665-40830
9331514010
main93315-14010
9411540500
main94115-40500
64 parts on this diagram · 3 diagrams in section
