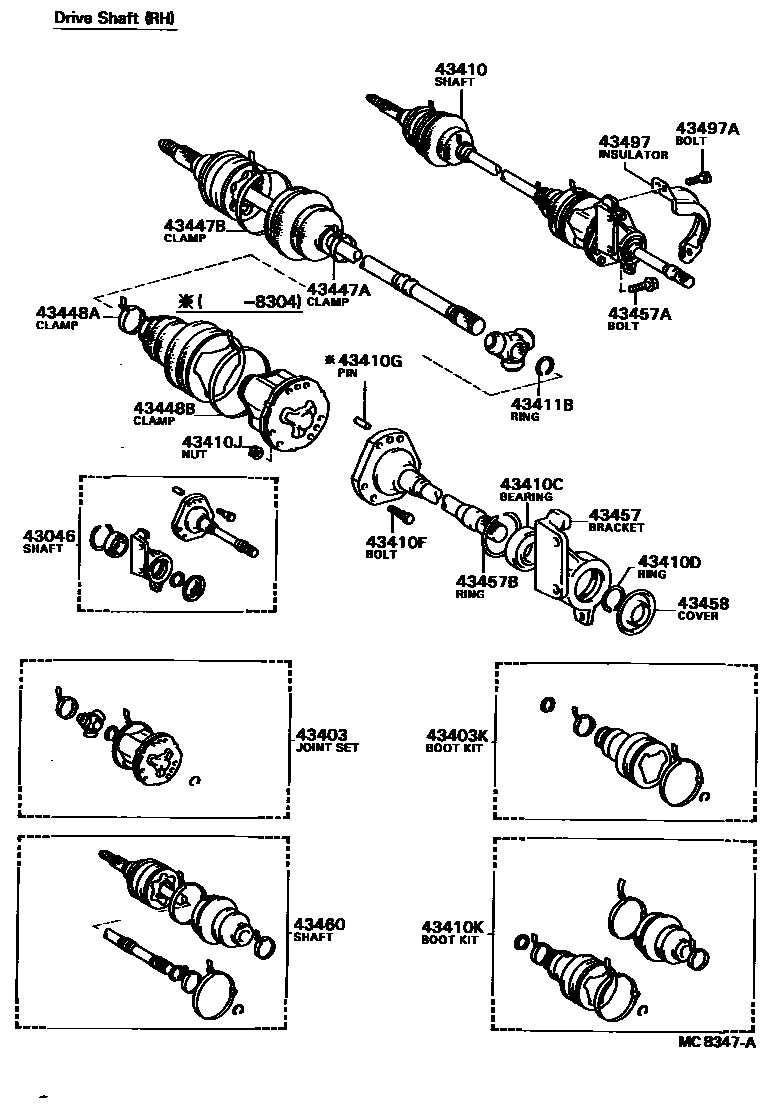

Toyota CAMRY — FRONT DRIVE SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

43046SHAFT SUB-ASSY, FRONT DRIVE BEARING

main43046-32010iSV11198301-198405

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-39016iCV1#,SV11198301-198607

43403KBOOT KIT, FRONT AXLE INBOARD JOINT SET

main04438-32011iCV1#,SV11198301-198607

sub04438-12050

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-32011iSV11198301-198405

sub43410-32012

sub43525-20030

sub90179-22020

main43410-32020iCV10198308-198404

sub43410-32021

main43410-32021iCV10198404-198410

sub43410-32022

main43410-32022iCV1#198410-198607

sub43410-32023

sub43525-20030

sub90179-22020

main43410-32030iSV11198405-198410

sub43410-32031

main43410-32031iSV11198410-198607

sub43410-32040

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90369-32001iSV11198301-198405

main90369-36001iSV11198405-198607

sub90363-36001

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main90520-29003iSV11198301-198405

main90520-33008iSV11198405-198607

43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)

main90114-08006iCV1#,SV11198301-198607

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-08007iSV11198301-198304

43410JNUT (FOR FRONT DRIVE SHAFT)

main90179-08053iCV1#,SV11198301-198607

43410KBOOT KIT, FRONT DRIVE SHAFT

main04438-32021iSV11198301-198607

sub04438-12030

main04438-32030iCV10198308-198404

sub04438-32031

main04438-32031iCV1#198404-198607

sub04438-12030

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iCV1#,SV11198301-198607

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iCV1#,SV11198301-198607

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iCV1#,SV11198301-198607

sub42345-12160

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iCV1#,SV11198301-198607

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iCV1#,SV11198301-198607

43457BRACKET, DRIVE SHAFT BEARING

main43457-20020iSV11198405-198508

sub43457-20021

main43457-20021iSV11198508-198607

sub43457-20022

sub90119-10461

main43457-32010iSV11198301-198405

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10051iSV11198301-198607

*10-1.25PX22-19.5

sub91512-81022

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-69001iSV11198301-198405

main90521-75002iSV11198405-198607

43458COVER, FRONT DRIVE SHAFT DUST

main43458-20011iSV11198405-198607

main43458-32010iSV11198301-198405

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39016iSV11198301-198308

sub43470-39016

main43460-39017iCV10198308-198404

sub43460-39018

main43460-39018iCV10198404-198410

sub43460-39019

main43460-39019iCV1#198410-198607

sub43460-39020

sub43525-20030

sub90179-22020

main43470-39016iSV11198308-198410

sub43470-39017

main43470-39017iSV11198410-198607

sub43470-39025

43497INSULATOR, BEARING BRACKET HEAT

main43497-32010iSV11198301-198303

T=0.7

sub43497-32011

main43497-32011iSV11198303-198607

T=1.0

43497ABOLT (FOR BEARING BRACKET HEAT INSULATOR)

main90119-08223iSV11198301-198607

22 parts on this diagram · 5 diagrams in section
