Toyota CAMRY — FRONT DOOR WINDOW REGULATOR & HINGE

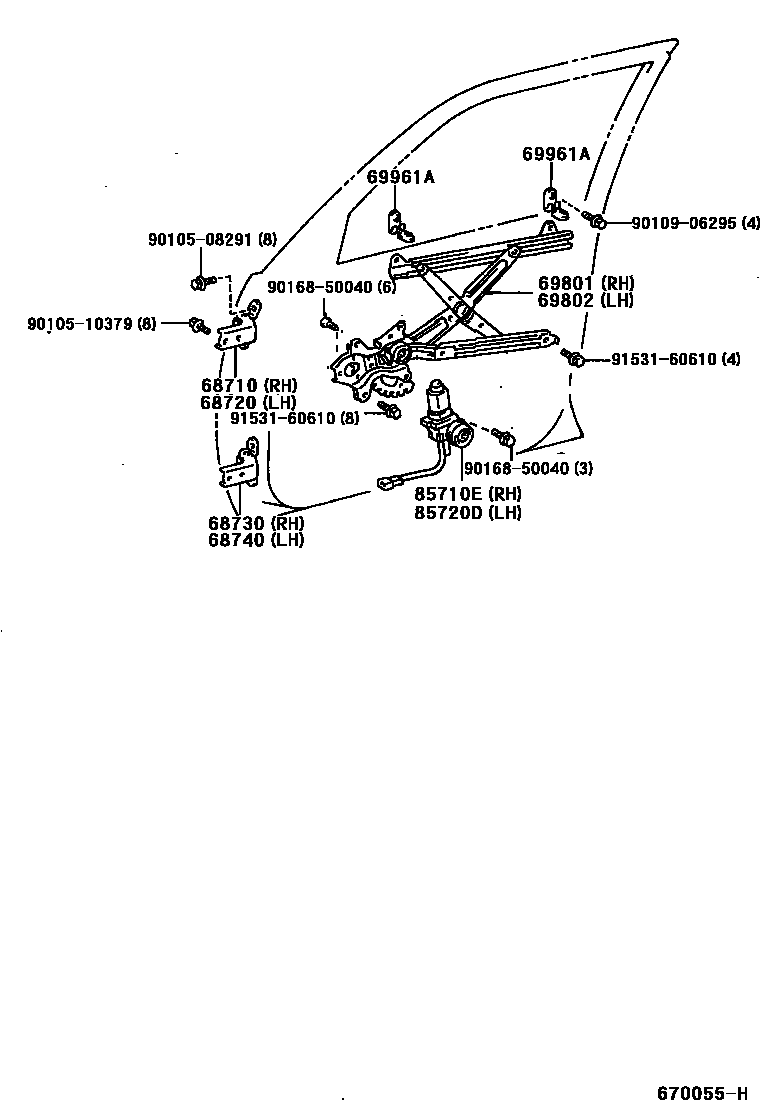

Parts diagram

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-33010i199608

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-33010i199608

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-33010i199608

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-33010i199608

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33010i199608

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-33010i199608

69961ARETAINER, FRONT DOOR GLASS

main69961-33010×2i199608-199704

FRONT

main69961-33020×2i199704

FRONT

main69963-33010×2i199608-199704

REAR

main69963-33020×2i199704

REAR

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-33040i199704

main85710-33050i199608

main85710-33070i199608-199704

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33040i199704

main85720-33050i199608

main85720-33070i199608-199704

9010508291

main90105-08291

9010510379

main90105-10379

9010906295

main90109-06295

9016850040

main90168-50040

9153160610

main91531-60610

14 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota CAMRY

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota CAMRY. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
