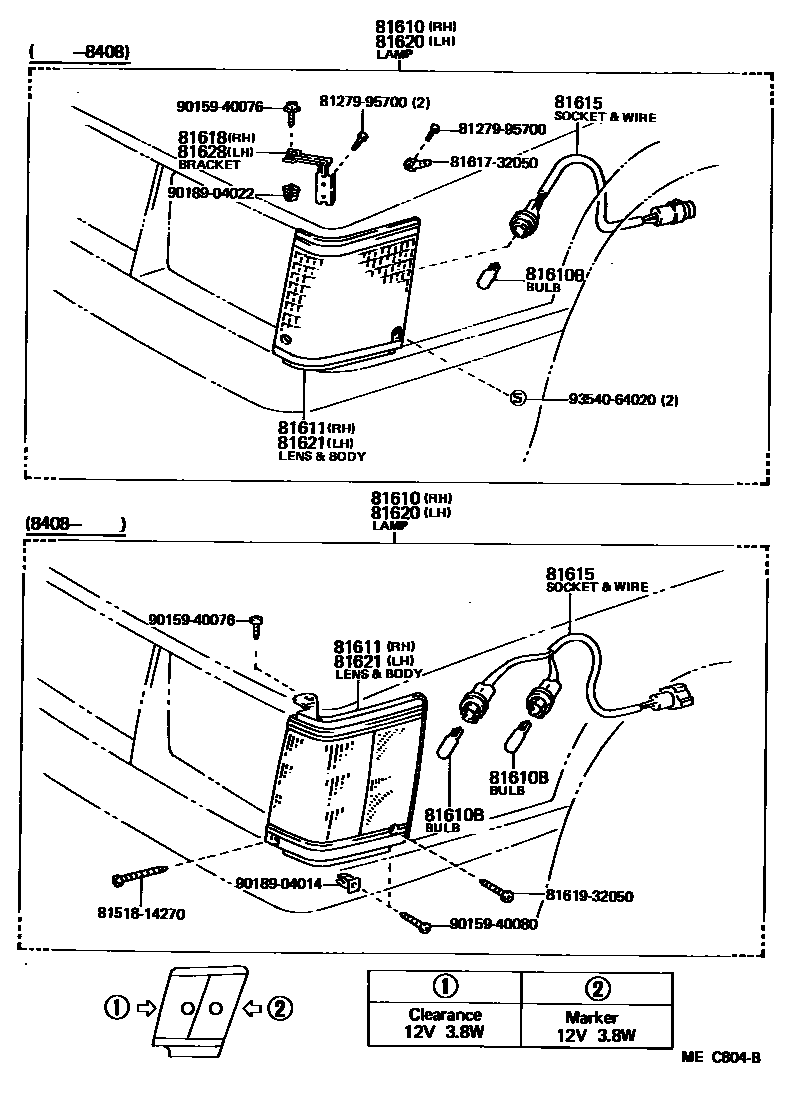

Toyota CAMRY — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-39735iCV10,SV11198301-198408

main81610-39736iCV1#,SV11198408-198607

sub81610-32051

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-11020iCV10,SV11198301-198607

12V 3.8W,12V 3.8W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-32050iCV10,SV11198301-198408

main81611-32051iCV1#,SV11198408-198607

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-32050iCV10,SV11198301-198408

main81615-32051iCV1#,SV11198408-198607

81618BRACKET, PARKING AND CLEARANCE LAMP, RH

main81618-32050iCV10,SV11198301-198408

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-39735iCV10,SV11198301-198408

main81620-39736iCV1#,SV11198408-198607

sub81620-32051

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-32050iCV10,SV11198301-198408

main81621-32051iCV1#,SV11198408-198607

81628BRACKET, PARKING AND CLEARANCE LAMP, LH

main81628-32050iCV10,SV11198301-198408

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

8151814270SHADE, FRONT TURN SIGNAL LAMP, RH

main81518-14270

8161732050MOULDING, PARKING AND CLEARANCE LAMP, RH

main81617-32050

8161932050

main81619-32050

9015940076

main90159-40076

9015940080

main90159-40080

9018904014

main90189-04014

9018904022

main90189-04022

9354064020

main93540-64020

17 parts on this diagram · 1 diagram in section
