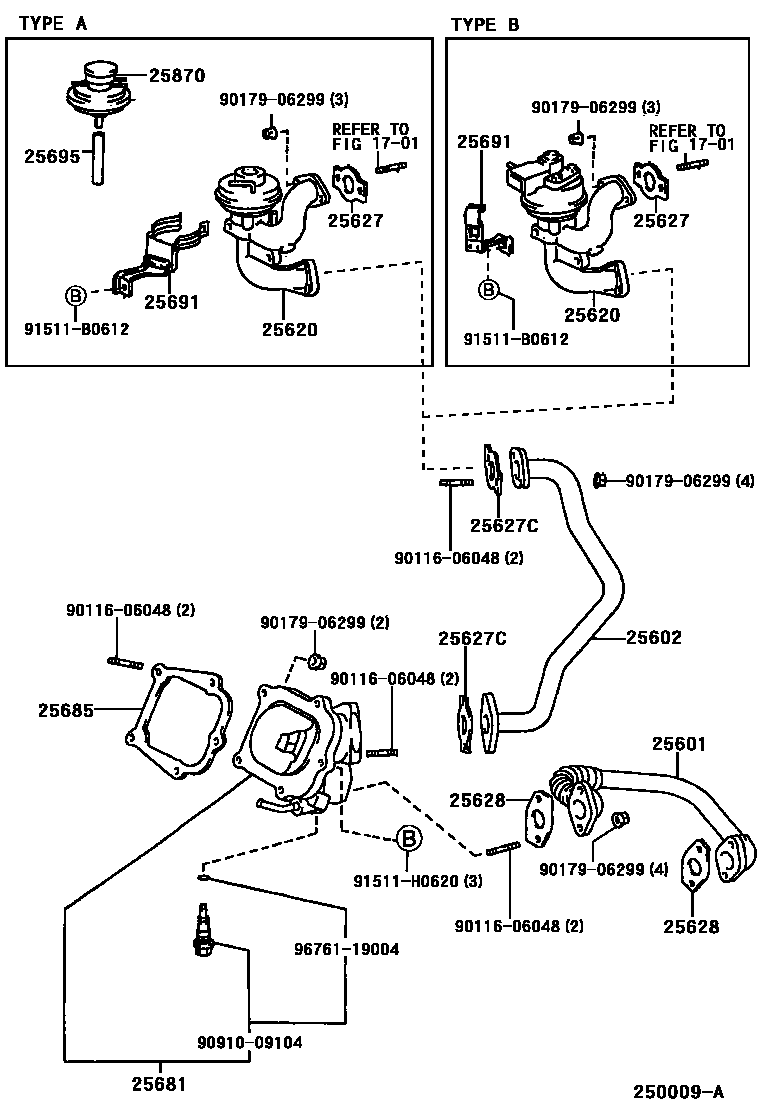

Toyota CAMRY — EXHAUST GAS RECIRCULATION SYSTEM
1701MANIFOLD
25601PIPE SUB-ASSY, EGR, NO.1
25602PIPE SUB-ASSY, EGR, NO.2
25620VALVE ASSY, EGR
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
25627GASKET, EGR VALVE
25627CGASKET(FOR EGR PIPE NO.2)
25681COOLER, EGR, NO.1
25685GASKET, EGR COOLER, NO.1
25691BRACKET, EGR VACUUM MODULATOR
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
25695HOSE, EGR VACUUM MODULATOR
25870VALVE ASSY, EGR VACUUM MODULATOR
9011606048
main90116-06048
9017906299
main90179-06299
9091009104
main90910-09104
91511B0612
main91511-B0612
91511H0620
main91511-H0620
9676119004
main96761-19004
18 parts on this diagram · 2 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota CAMRY
This section contains 27 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CAMRY. Key components include: MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1), PIPE SUB-ASSY, EGR, NO.2.
