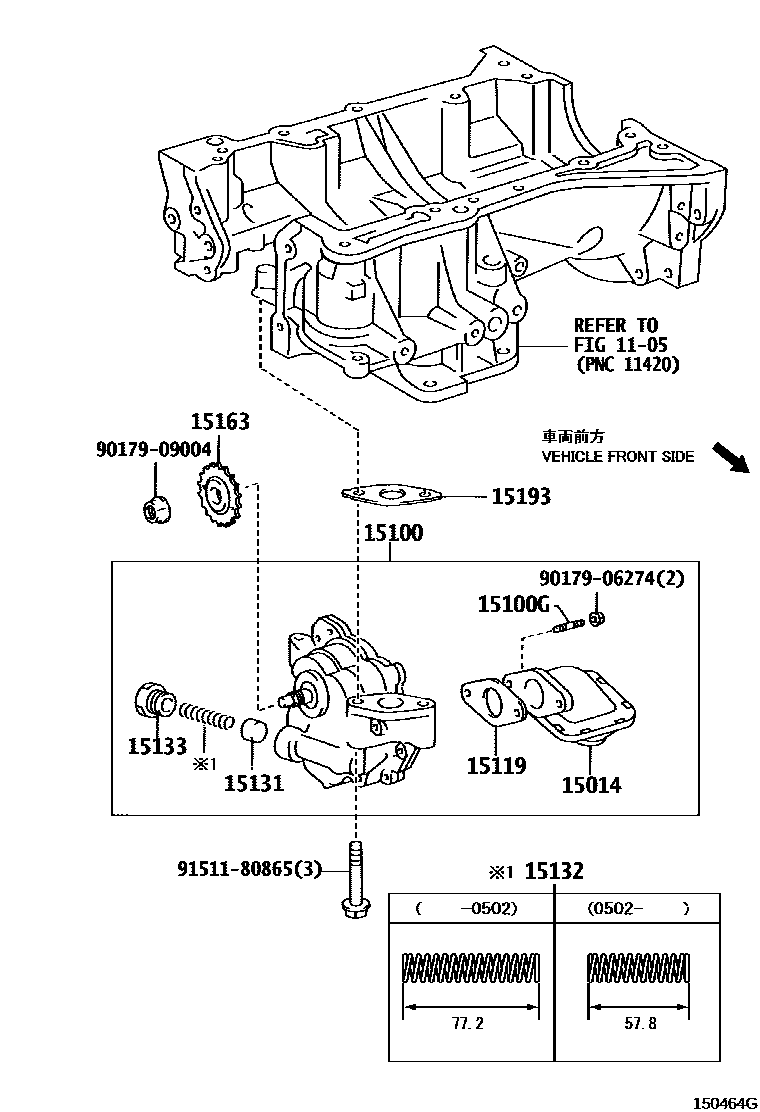

Toyota CAMRY — ENGINE OIL PUMP

0001 1 0002 1

1105

15014STRAINER SET, OIL PUMP

main15014-28020i1AZFE,2AZFE..ACV3#200108-200406

15100PUMP ASSY, OIL

main15100-20060i1MZFE..MCV30200108-200406

main15100-28020i1AZFE,2AZFE..ACV3#200108-200406

15100GBOLT,STUD(FOR OIL PUMP)

main15183-28020i1AZFE,2AZFE..ACV3#200108-200601

15119GASKET, OIL PUMP COVER

main15119-28020i1AZFE,2AZFE..ACV3#200108-200406

15131VALVE, OIL PUMP RELIEF

main15131-42021i1MZFE..MCV30200108-200406

main15131-46040i1AZFE,2AZFE..ACV3#200108-200406

15132SPRING, OIL PUMP RELIEF VALVE

main15132-20020i1MZFE..MCV30200108-200406

main15132-28020i1AZFE,2AZFE..ACV3#200108-200502

main15132-46020i1AZFE,2AZFE..ACV3#200502

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1MZFE..MCV30200108-200406

main15133-28020i1AZFE,2AZFE..ACV3#200108-200406

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i1AZFE,2AZFE..ACV3#200108-200406

15193GASKET, OIL PUMP

main15193-28010i1AZFE,2AZFE..ACV3#200108-200406

(J)

main15193-28010i1AZFE,2AZFE..ACV3#200406

9017906274

main90179-06274

9017909004

main90179-09004

9151180865

main91511-80865

13 parts on this diagram · 2 diagrams in section
