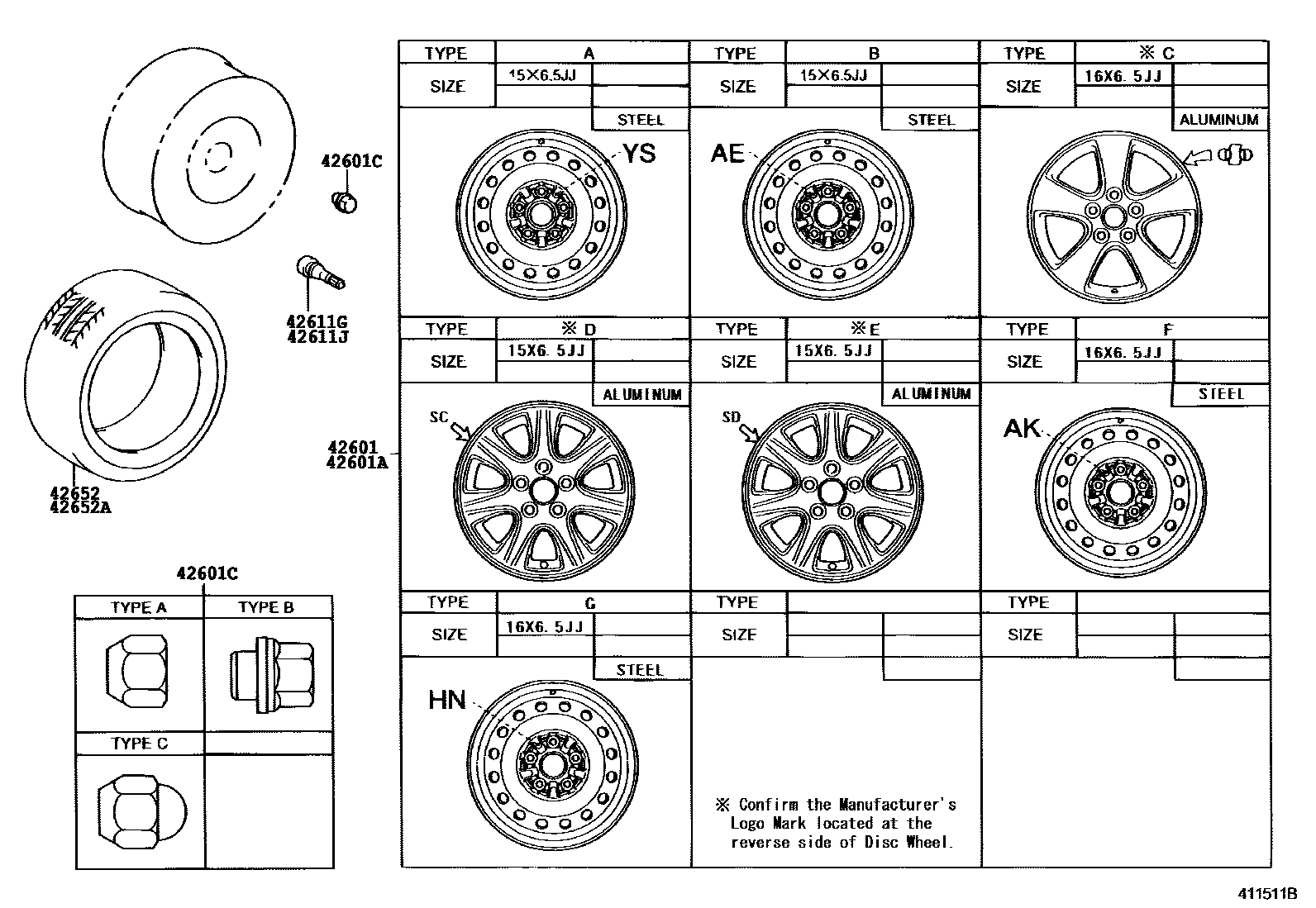

Toyota CAMRY — DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
15X6.5JJ,#,TYPE A:REFER ILLUST.
15X6.5JJ,#,TYPE A:REFER TO ILLUSTRATION
16X6.5JJ,#,TYPE F:REFER TO ILLUSTRATION
sub42611-33311
16X6.5JJ,#,TYPE C:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
15X6.5JJ,#,TYPE A:REFER ILLUST.
15X6.5JJ,#,TYPE A:REFER TO ILLUSTRATION
16X6.5JJ,#,TYPE C:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
215/60R16,*B/S
205/65R15 94V,*B/S
205/65R15 94V,*D/L
215/60R16 95V,*Y/H
215/60R16 95V,*Y/H
215/60R16 95V,*Y/H,EUROPE SPEC
215/60R16 95V,*Y/H,HONG KONG SPEC
215/60R16 95V,*Y/H,EUROPE SPEC
215/60R16 95V,*Y/H,EXCEPT EUROPE
205/65R15 94V,*D/L,INDIA SPEC
42652ATIRE (FOR SPARE)
215/60R16,*B/S
205/65R15 94V,*B/S
205/65R15 94V,*D/L
215/60R16 95V,*Y/H
215/60R16 95V,*Y/H
215/60R16 95V,*Y/H,EUROPE SPEC
215/60R16 95V,*Y/H,EUROPE SPEC
215/60R16 95V,*Y/H,EXCEPT EUROPE
205/65R15 94V,*D/L,INDIA SPEC
7 parts on this diagram · 3 diagrams in section
