Toyota CAMRY — CONSOLE BOX & BRACKET
55620HOLDER ASSY, INSTRUMENT PANEL CUP
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
55630AHOLDER, REAR CONSOLE BOX, CUP
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
58810JBOX ASSY, CONSOLE
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
BLUISH GRAY,TRIM1#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
BLACK,TRIM1#,4#,6#
OAK,TRIM4#
DK.SAGE,TRIM6#
W(TEMS)
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
58910CBOX ASSY, CONSOLE, REAR
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
W(SEAT HEATER),BLUISH GRAY,TRIM1#
W(SEAT HEATER),OAK,TRIM4#
W(SEAT HEATER),DK.SAGE,TRIM6#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
58919BPLATE, CONSOLE BOX
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7404
9011906220
main90119-06220
9018305103
main90183-05103
9046804177
main90468-04177
9054103078
main90541-03078
9162660616
main91626-60616
9162660818
main91626-60818
9353054010
main93530-54010
9356755016
main93567-55016
9356755020
main93567-55020
9356855014
main93568-55014

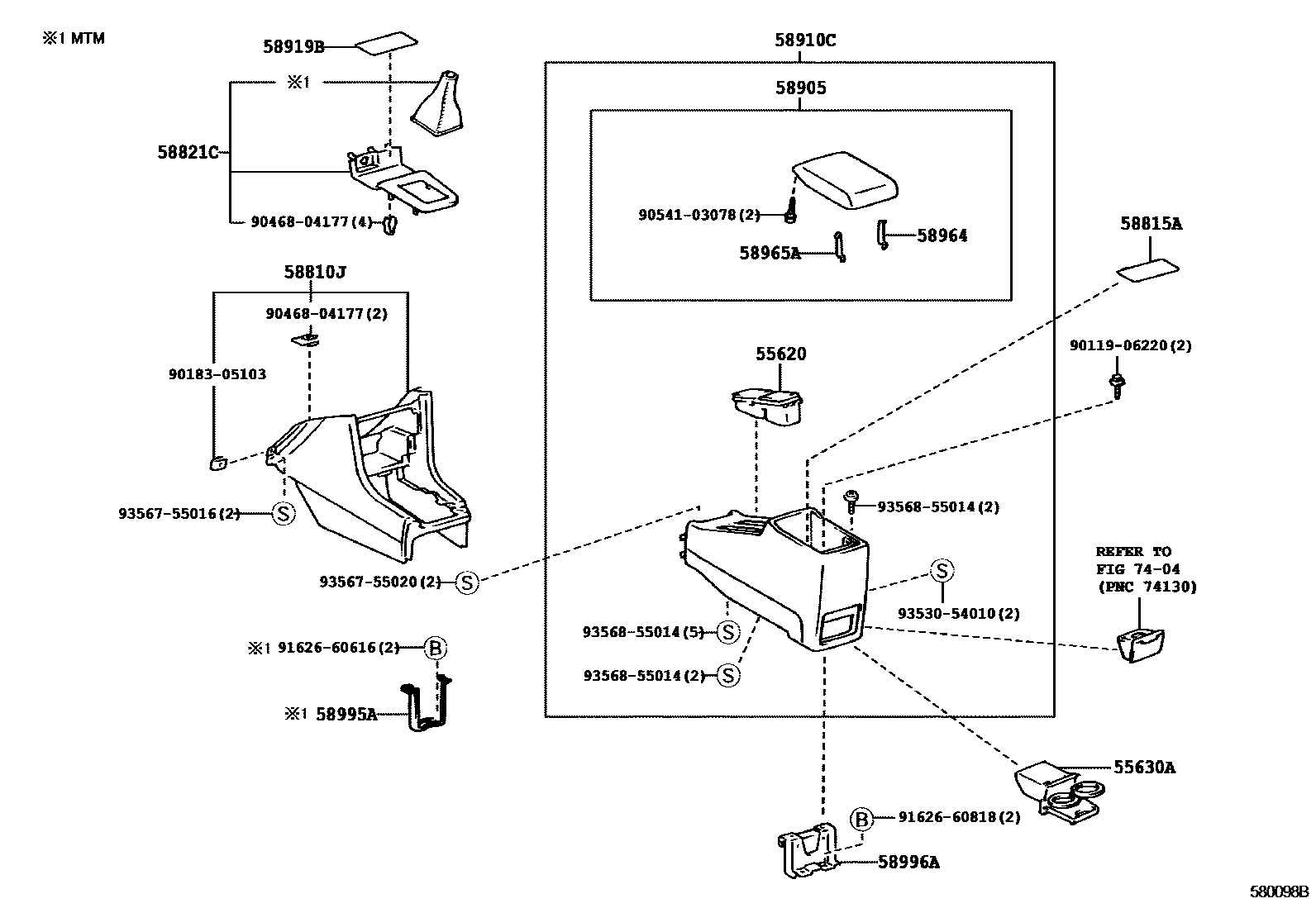

23 parts on this diagram · 1 diagram in section
