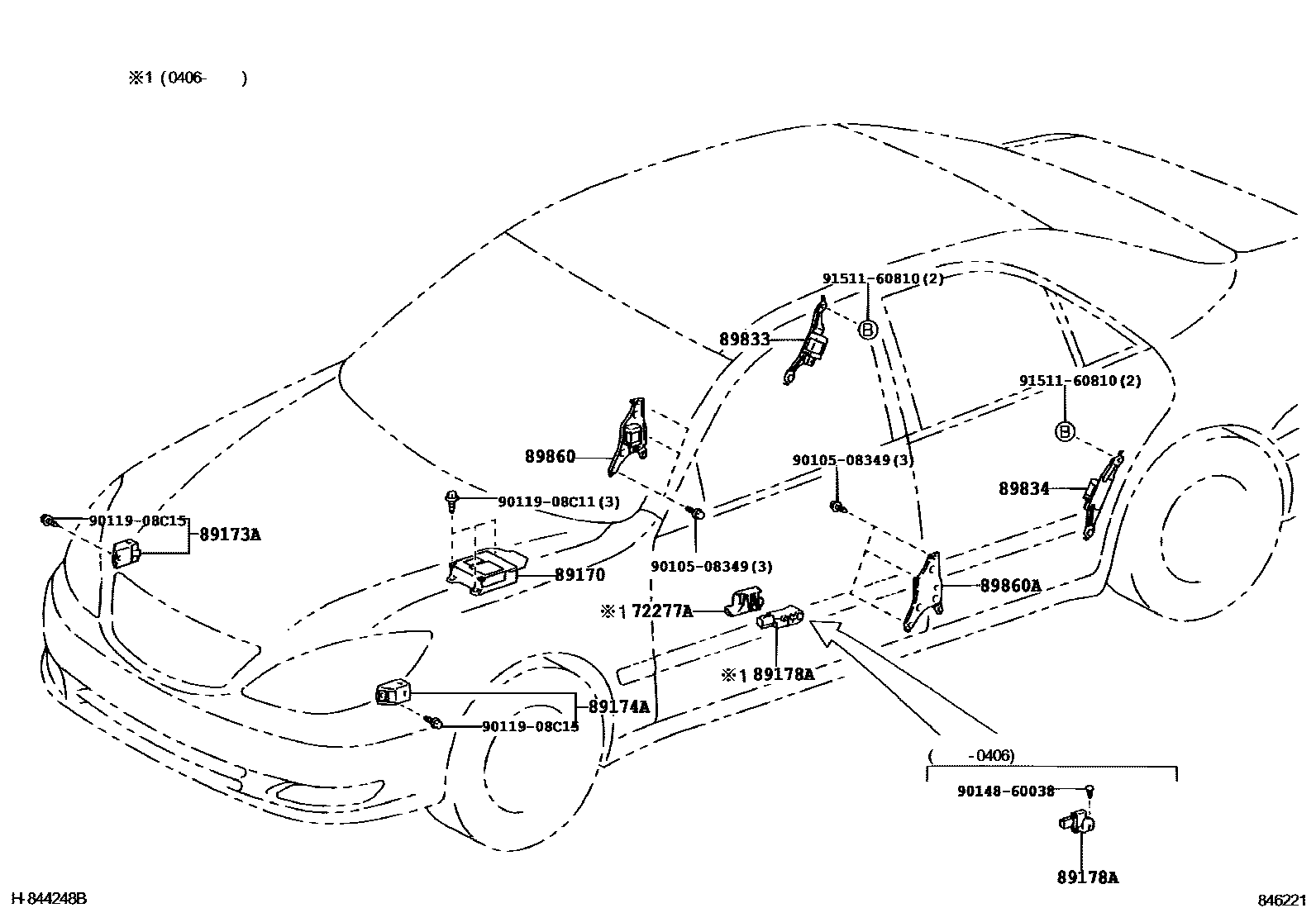

Toyota CAMRY — AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
W(MANUAL SEAT)
W(POWER SEAT)
89170SENSOR ASSY, AIRBAG
*80,DRIVER SIDE & PASSENGER SIDE & SIDE & CURTAIN SHIELD
*80,DRIVER SIDE & PASSENGER SIDE & SIDE & CURTAIN SHIELD
*80,DRIVER SIDE & PASSENGER SIDE & SIDE & CURTAIN SHIELD
89173ASENSOR, AIRBAG, FRONT RH
sub89173-09330
89174ASENSOR, AIRBAG, FRONT LH
sub89173-09330
89178ASENSOR, SEAT POSITION AIRBAG
W(MANUAL SEAT)
W(POWER SEAT)
89833SENSOR, AIRBAG, REAR RH
89834SENSOR, AIRBAG, REAR LH
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
9010508349
main90105-08349
9011908C11
main90119-08C11
9011908C15
main90119-08C15
9014860038
main90148-60038
9151160810
main91511-60810
14 parts on this diagram · 1 diagram in section
